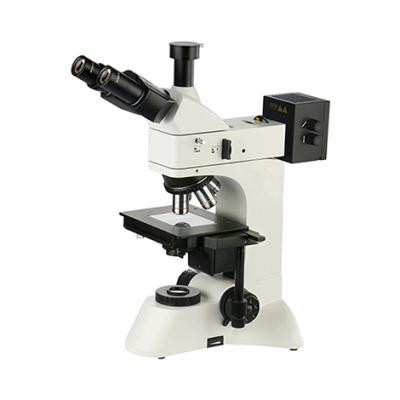

Bright Field & Dark Field Metallurgical Microscope MJ33
US$ 1
≥1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Inverted Metallurgical Microscope MJ42US$ 1MOQ: 1 Set -
Inverted Metallurgical Microscope MJX60US$ 1MOQ: 1 Set
-
Research-level Upright Fluorescence Microscope MF43-NUS$ 1000 - 3000MOQ: 1 Set
-
Inverted Fluorescence Microscope MF53-NUS$ 1000 - 3000MOQ: 1 Set
-
Scientific Grade Stereo-fluorescence Microscope MZX81US$ 1000 - 3000MOQ: 1 Set
Description
Feature
Specification
Metallurgical microscope MJ33 in bright field & dark field is a microscope used in industrial inspection, equipped with bright/dark field objectives, wide field eyepiece and polarizing observation device. The reflective and transmitted illumination system adopts Kohler illumination with clear field of view. It can be used for the observation of semiconductor silicon wafer, LCD substrates, circuit boards, and other kinds of powder solid transparent or opaque industrial test specimen. This metallurgical microscope is an ideal instrument for research of biology, metallurgy, mineralogy, precision engineering and electronics engineering, etc.
Feature
Expand to DIC:
Infinite optical system allows it expand to DIC function providing differential interference contrast imaging.
Infinite optical system & lenses:
(1)Adopts infinity optical system and modularity function design. (2)Long working distance bright/dark field plan objectives, wide and clear field of view. (3)Wide field plan eyepiece: field number is 22mm.
Polarizing function:
Built in switchable polarizer device, analyzer 360°rotatable offers more observation method for metal specimen.
Specification
| Item | Specification |
| Eyepiece | Wide field WF10X(field number Φ22mm) |
| Objective | Infinity plan achromatic bright or dark field long work distance. (no cover glass) |
| PL L5X/0.12 B. D (Work distance): 9.7 mm | |
| PL L10X/0.25 B. D (Work distance): 9.3 mm | |
| PL L20X/0.40 B. D (Work distance): 7.2 mm | |
| PL L40X/0.60 B. D (Work distance): 3.0 mm | |
| Eyepiece tube | Trinocular, 30°inclined, (Built in analyzer and switching freely) |
| Epi- illumination system | 12V 50W halogen lamp, brightness adjustable |
| Built-in field diaphragm, aperture diaphragm and filter switching device. | |
| Push-pull type analyzer and polarizer | |
| Yellow, blue, green filter and frosted glass | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm |
| Nosepiece | Quintuple (Fixed nosepiece with backward inclined) |
| Stage | Double layer mechanical movable stage (size: 210mmX140mm, moving range: 75mmX50mm) |
| Glass plate 97x76mm | |
| Transmitted illumination system | Abbe condenser NA. 1.25 up and down adjustable |
| Blue filter and frosted glass | |
| Condenser for illumination with halogen lamp (with field diaphragm ) | |
| 12V 30W halogen lamp, brightness adjustable | |
| Adapter | 1X C-mount adapter |
