Description
Feature

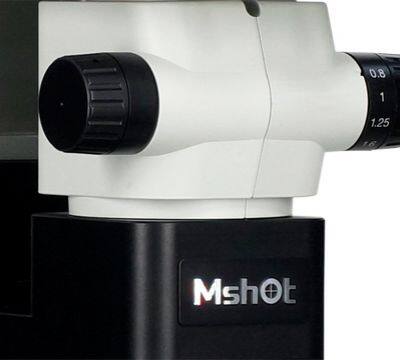

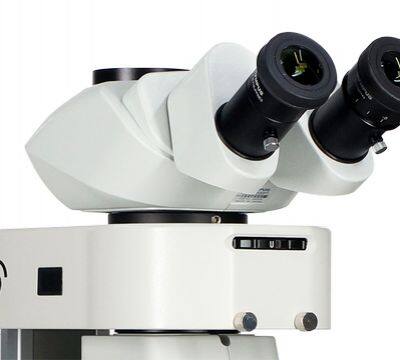

The high-power stereo fluorescence microscope MZX200 is a stereo fluorescence microscope with an ultra-large zoom range and electric focus. It can achieve a wide range of zoom from 6.3 to 630 times. It can realize the functions of a stereo microscope and a biological microscope in model organism research. , equipped with an LED digital display fluorescence module suitable for observation of fluorescent dyes such as GFP, and is especially suitable for research on model organisms such as nematodes.
Feature

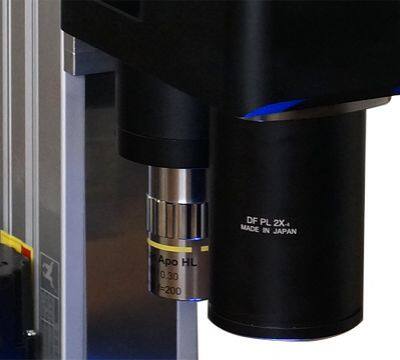

Rotating objective lens design:
The objective lens is designed to rotate to avoid interference. It has a built-in reflective lens switching device. There is no need to move the body and zoom body after switching the objective lens, and it can also ensure that the center position of the field of view remains unchanged. It comes standard with dual objective lenses.
Large zoom ratio:
Zoom body and magnification: 0.8x-5.6x zoom body, 1-7 zoom ratio. When using a 1x objective lens, the true optical magnification is: 6.3X-63X; when using a 10x objective lens, the true optical magnification is: 63X -630X.
epi-fluorescence attachment:
Three-channel six-hole internal positioning converter, digital display LED screen, real-time display of the current fluorescence channel and brightness percentage.
Specification
| Items | Specification |
| Eyepiece tube | SZX2-TR30PT |
| Eyepiece | WHSZ10X-H (adjustable) |
| Objective lens | ■DFPLAPO1X-4 plan semi-apochromatic objective lens, working distance:81mm ■M Plan10X/0.28 APO HL ■Accurate and parfocaobjective lens switching center; the high-magnification objective lens has clear images without obvious chromatic aberration and coma. |
| Stereo fluorescence accessories | Excitation cubes wavelength: MZX-BG-BD(BD): 450‒490nm、510‒550nm |
| Electric focusing base | ■Transmissive base with black matte sliding plate (including objective lens switching device, frosted glass plate, adapter) ■Innovative design of in-situ dual objective lens rotation switching |
| Electric control box | Electric focus knob and brightness adjustment knob integrated control |
| Spectroscopic device (optional) | One-button push-pull design, single-channel and dual-channel switching |
| Camera adapter | TV1XC-MO |
