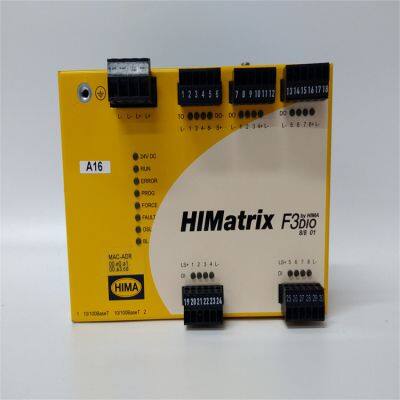

HIMA F3 DIO 8/8 01 Digital Input/Output Module

Features High Reliability: By using high-quality materials and implementing strict quality control, it ensures stable operation in harsh industrial environments. It can effectively deal with various abnormal situations, guaranteeing the normal operation of equipment and data security. Easy Integration: It supports multiple communication protocols and interfaces, enabling seamless integration into industrial automation systems. It is convenient to connect with other devices, and can quickly realize the setup and expansion of the system. User-friendly: The installation and configuration process is simple, with low requirements for the technical skills of technicians. It can effectively reduce the installation and debugging time of the system.

Functions Digital Signal Processing: It has 8 digital input channels and 8 digital output channels, which can read and output digital signals. It can meet the processing requirements of digital signals in industrial automation control systems. For example, it can be used to detect the status of switches, control the actions of relays, etc. Safety-related Functions: As a safety-related module, it has functions of fault detection and self-protection. It complies with relevant safety standards, ensuring that the system operates in a safe state. It is suitable for scenarios with high safety requirements, such as Safety Instrumented Systems (SIS). Remote Communication Function: It can serve as a remote I/O module, connecting with HIMax and HIMatrix controllers through secure Ethernet to achieve remote data transmission and control, expanding the scope of the control system.

Technical Parameters Operating Voltage: 24V DC. Communication Protocol: DeviceNet, with a communication speed of 100Kbps. Ambient Temperature Range: -25°C to +70°C. Humidity Range: 5% to 95%, without condensation.

Some common faults of the HIMA F3 DIO 8/8 01 card and the corresponding solutions: 1. Power Supply Fault Fault Phenomenon: The indicator light of the card does not light up, and all input and output functions fail. Possible Reasons: The power supply is abnormal, such as the voltage is not within the allowable fluctuation range of 24V DC; the power connection cable is loose, damaged, or has poor contact; the power module is faulty. Solutions: Use a multimeter to measure the power supply voltage to ensure it is within the normal range. If the voltage is abnormal, check the power supply; check the power connection cable, unplug and replug it to ensure a firm connection, and replace the cable if it is damaged; if there is a problem with the power module, try replacing it with a spare power module for testing.

2. Digital Input Fault Fault Phenomenon: Some or all digital input channels have no signal display, or the displayed signal status does not match the actual input status. Possible Reasons: The input device (such as a switch, sensor, etc.) is faulty; the wiring of the input channel is incorrect, such as a short circuit, open circuit, or poor contact; the input parameter settings of the card are incorrect; the input channel of the card itself is damaged. Solutions: Check the input device. You can use tools such as a multimeter to test whether its output signal is normal. If the device is faulty, repair or replace it; check the wiring of the input channel to ensure the connection is correct and firm, and eliminate problems such as short circuits and open circuits; check the input parameter settings of the card, such as the input type and filtering time, to ensure that the settings match the actual input device; if you suspect that the input channel of the card is damaged, you can try changing to another normal input channel. If the signal returns to normal, the original channel may have a fault, and further inspection or replacement of the card is required.

3. Digital Output Fault Fault Phenomenon: The output signal of the card cannot drive external devices (such as relays, solenoid valves, etc.), or the output signal is unstable and abnormal. Possible Reasons: The output device is faulty; the wiring of the output channel is incorrect or has poor contact; the output parameter settings of the card are incorrect; the output driving ability of the card is insufficient; the output channel of the card itself is damaged. Solutions: Check the output device. You can test whether it works normally by manual operation or using other signal sources. If the device is faulty, repair or replace it; check the wiring of the output channel to ensure the connection is correct and firm; check the output parameter settings of the card, such as the output type and output mode, to ensure that the settings match the output device; if the output driving ability is insufficient, you can consider adding auxiliary devices such as intermediate relays; if you suspect that the output channel of the card is damaged, you can try changing to another normal output channel. If the output returns to normal, the original channel may have a fault, and further inspection or replacement of the card is required.

4. Communication Fault Fault Phenomenon: The card cannot communicate with the main controller or other devices, and the communication indicator light is abnormal (such as not lighting up, flashing abnormally, etc.). Possible Reasons: The communication cable is connected incorrectly, loosely, or is damaged; the communication protocol settings are inconsistent; the communication interface is faulty; the communication parameter settings of the card are incorrect. Solutions: Check the communication cable to ensure the connection is correct and firm, and replace the cable if it is damaged; check the communication protocol settings of the card and the main controller or other devices to ensure they are consistent; check the communication interface. You can try changing to another normal communication interface for testing; check the communication parameter settings of the card, such as the baud rate and node address, to ensure the settings are correct.

5. Card Overheating Fault Fault Phenomenon: The surface temperature of the card is too high, and there may be a decrease in performance or instability. Possible Reasons: The installation environment has poor ventilation and bad heat dissipation conditions; there are heat sources around that affect the heat dissipation of the card; the internal components of the card are faulty, resulting in an abnormal increase in power consumption. Solutions: Improve the ventilation conditions of the installation environment, ensure that there is enough heat dissipation space around the card, and avoid installing it in a closed and narrow space; remove the heat sources around the card; if you suspect that the internal components of the card are faulty, you can contact a professional for inspection and repair, and replace the card if necessary.

6. Card Hardware Damage Fault Fault Phenomenon: The card shows obvious physical damage phenomena such as smoking, an unusual smell, and burned components, or the card frequently freezes, restarts, and other abnormal situations occur. Possible Reasons: Overvoltage and overcurrent surges; electrostatic discharge; component aging and damage caused by long-term use; physical damage caused by improper installation or operation. Solutions: Immediately disconnect the power supply of the card to avoid further damage; check whether there is obvious physical damage on the surface of the card, such as burned components and broken circuit boards. If so, contact a professional for repair or directly replace the card; when operating and installing the card, follow the correct operating procedures and take anti-static measures to avoid damage to the card due to improper operation.
