Triconex 3503E Digital Output Module
- T/T Western Union
You May Like
Product Details
| Brand Name | Triconex | Place of Origin | United States | |
| Model Number | 3503E | Input frequency range | DC or 47.63Hz | |
| Recommended input range | 20-42.5 VDC | maximum voltage | 42.5VAC/VDC | |
| Color Code | Dark red | Weight | 4 Kg |
Product Description

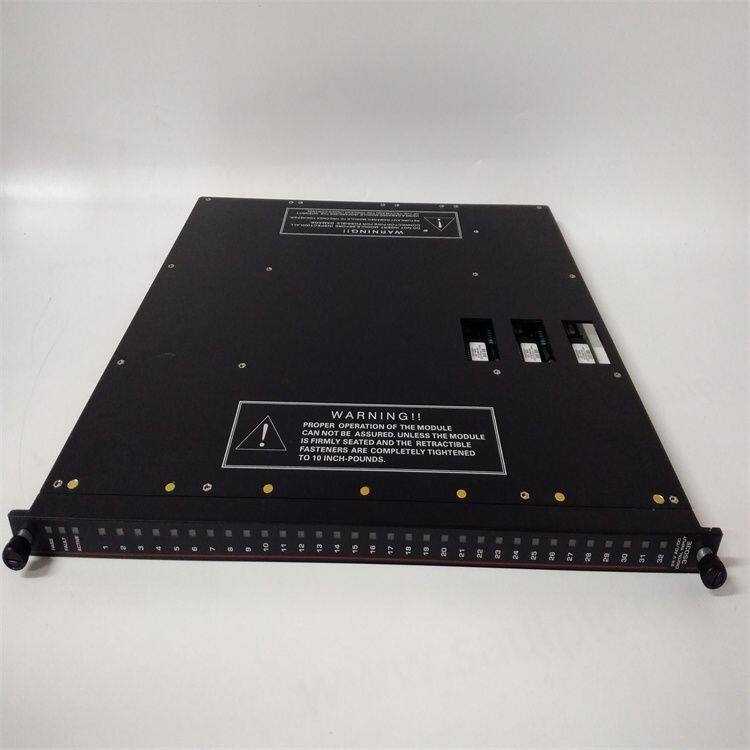

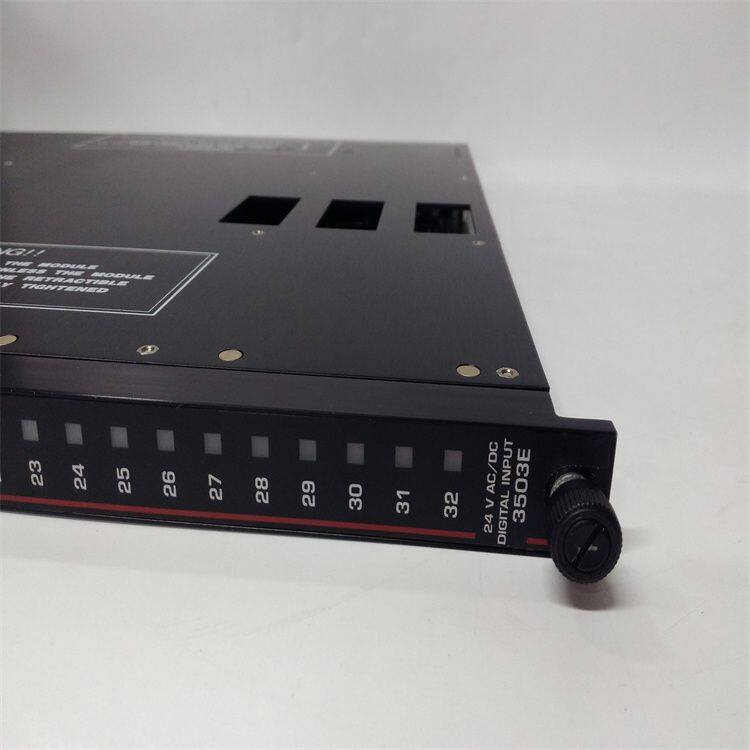

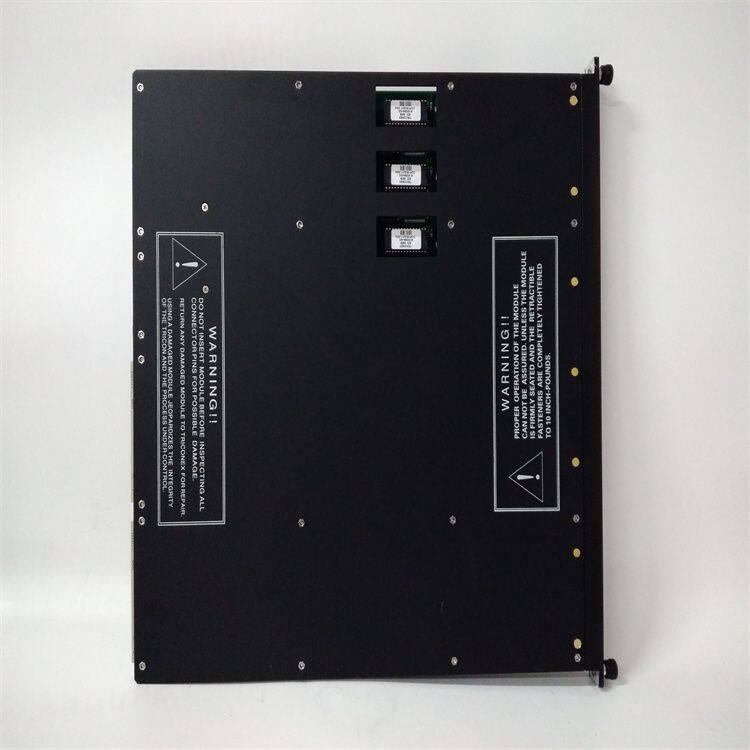

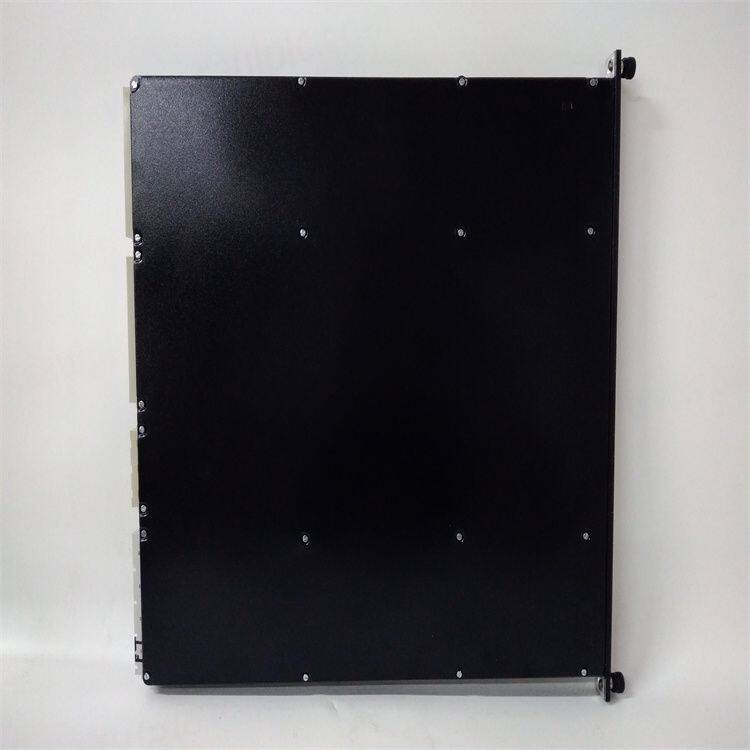

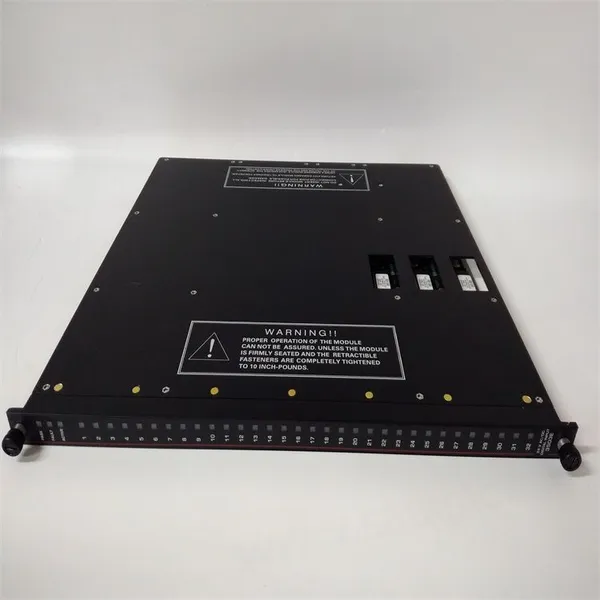

Triconex 3503E is a high-performance and high-reliability digital input module applied in the field of industrial automation. Main Features Multi-channel Input: It has 32 digital input channels, which can receive and process multiple digital signals simultaneously, meeting the monitoring needs of multiple devices or sensors. Wide Input Range: It supports various types of input signals, including standard DC or 47.63Hz signals. The recommended input range is 20 - 42.5V DC, and it can withstand a maximum of 42.5V AC or DC. High Reliability: By using high-quality electronic components and strict production processes, it can operate stably in harsh industrial environments, ensuring the accuracy of input signals. Quick Response: It has the ability to respond quickly, and can rapidly identify and process changes in input signals, ensuring the timeliness and accuracy of the system. Easy Integration: With a standard design and interface, it is convenient to integrate into existing industrial automation systems, and is usually used in conjunction with other Triconex controllers or PLCs. Self-check Function: It has a self-check function, which can detect and report abnormal situations such as stuck-open and stuck-closed, helping to discover and solve problems in a timely manner.
Application Scenarios Petroleum and Natural Gas Industry: It is used for the monitoring and control of safety-critical units such as emergency shutdown systems in the processes of oil refining and oil production. Chemical Industry: It can help achieve the safety functions of reactors and high-pressure equipment in the chemical manufacturing process. Power Industry: It can be used for the monitoring and protection of boilers and turbo compressors in thermal power plants. Manufacturing Industry: It is used for the monitoring of the machine status and process parameters in highly automated production lines to ensure production safety and efficiency.
Possible Fault Cases of the Triconex 3503E Module:
1. Abnormal Input Signals: Case: A certain input channel of the module has a situation where the signal is stuck open, that is, regardless of the actual external input status, this channel always shows a high-level signal input. The possible reason is that the relevant components in the input circuit are damaged, such as a short-circuit of the switch, resulting in the signal being unable to correctly reflect the external status. Case: Multiple input channels of the module have signal errors simultaneously, and all channels show a low level, while the actual external devices have sent high-level signals. After inspection, it is found that there is a fault in the power supply part of the module, causing the input circuit to not work properly and unable to correctly collect and convert the input signals.
2. Self-check Function Failure: Case: During the normal operation of the module, the self-check function reports that there is a fault in a certain channel, but the actually externally connected device is working properly, and other channels can also collect signals normally. Further inspection reveals that a resistor in the self-check circuit of this channel is damaged, resulting in an incorrect self-check result and a false report of the channel fault. Case: The self-check function of the module cannot be started normally, resulting in the inability to detect potential faults in a timely manner. After investigation, it is found that there is an error in the software program of the module. It may be that the program is interrupted or has an error during the upgrade process, causing the self-check program to not run correctly.
3. Communication Faults: Case: The module cannot communicate normally with other modules in the Triconex system, resulting in the interruption of data transmission in the entire system. After inspection, it is found that the communication interface chip of the module is damaged and cannot correctly send and receive communication signals. Case: During the communication process of the module, there are situations of data loss or errors, resulting in inaccurate data received by the system. After analysis, it is found that the communication line is affected by electromagnetic interference, which affects the data transmission quality and causes errors in the data received by the module.
