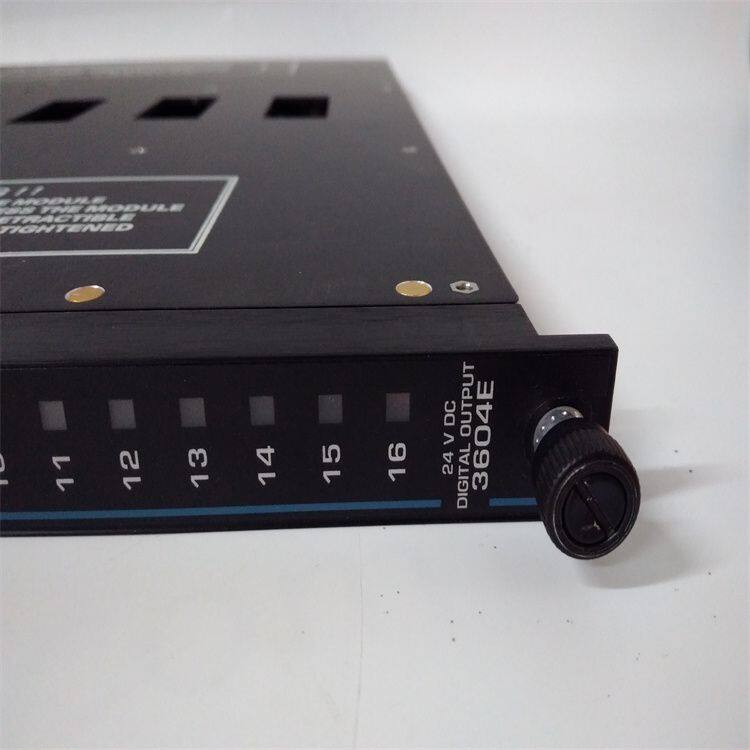

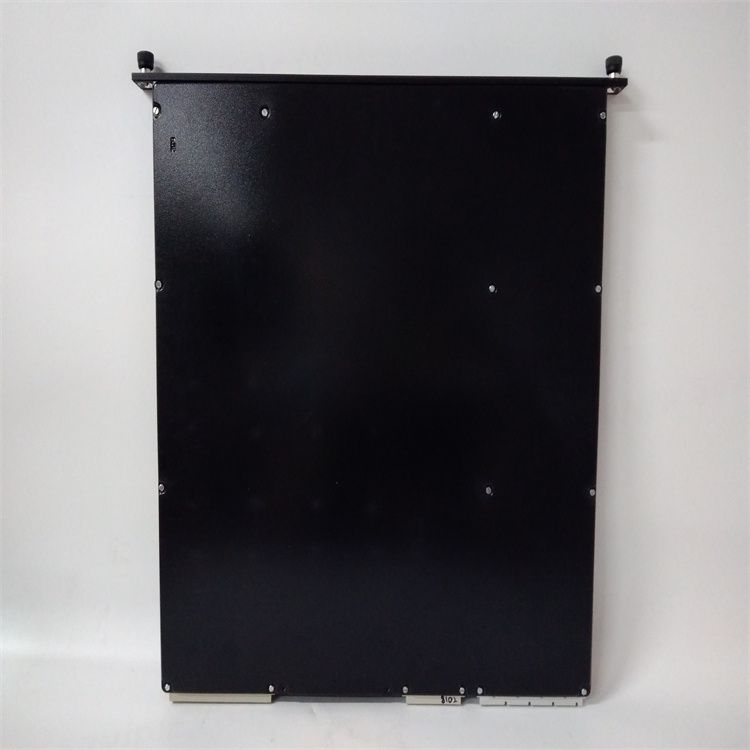

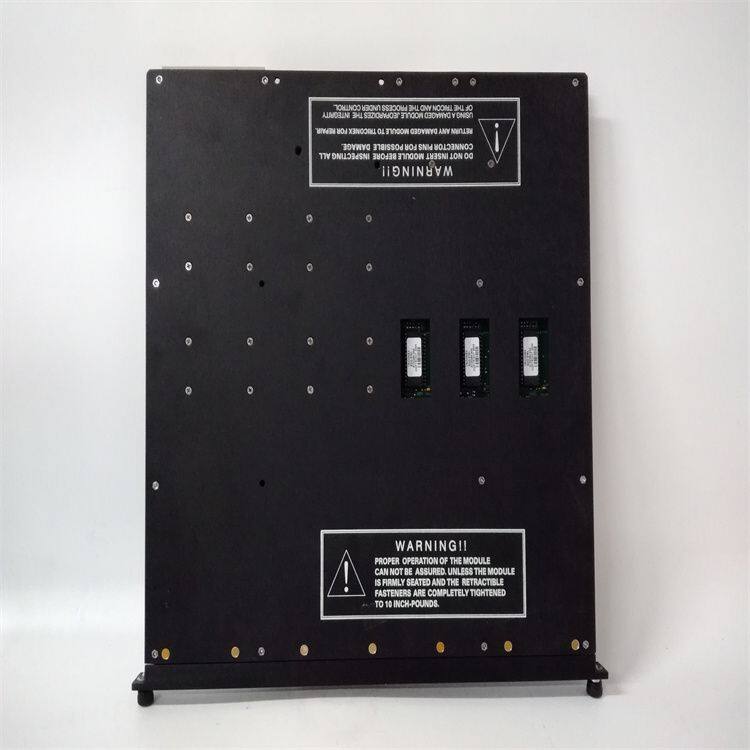

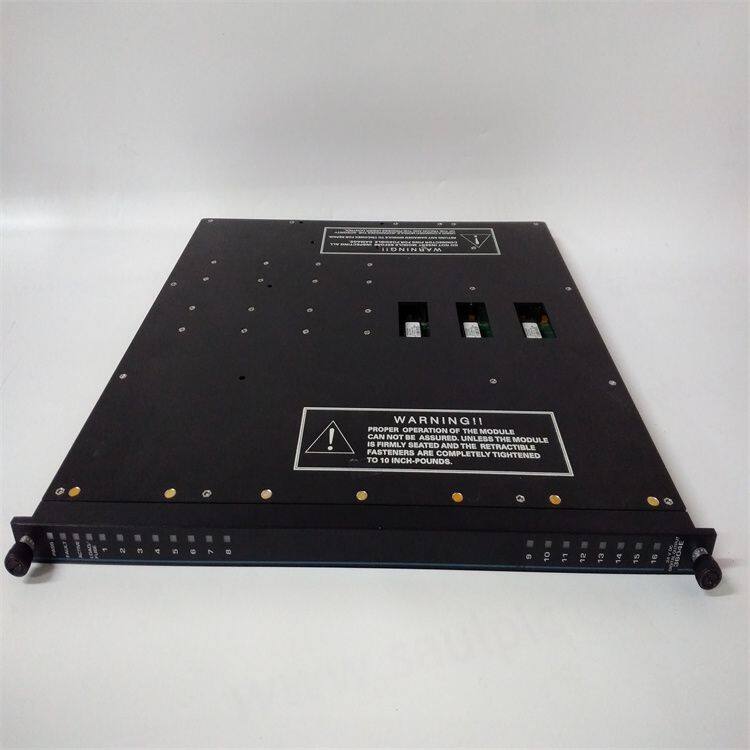

Triconex 3604E Digital Output Module
- T/T Western Union
You May Like
Product Details
| Brand Name | Triconex | Place of Origin | United States | |
| Model Number | 3604E | Nominal Voltage | 24 VDC | |
| Output Signals | 16, non-commoned | Voltage Range | 22-45 VDC | |
| Voltage Drop | < 4V, typical | Current Ratings, Maximum | 2A per point 10A surge/10 ms | |
| Load Leakage | 2 mA maximum | Fuses (on Field Termination) | 1 per output, 2.5A fast-acting | |
| Point Isolation | 1500 VDC | Shipping Weight | 5 Kg |
Product Description
The Triconex 3604E is a digital output module that adopts the Triple Redundancy Fault Tolerance (TMR) technology and features high reliability and high availability. Main Features High Reliability: Complying with the IEC61508/61511 standards and adopting the TMR microprocessor hardware technology, it can withstand harsh industrial environments. Each channel within the module independently executes the control program and "votes" on the output data to ensure the accuracy and stability of the output signals. A single fault will not lead to the loss of the system's safety functions. Multiple Diagnostic Functions: It has comprehensive online diagnostic capabilities and can detect and report its own hardware faults, field wiring problems, etc. For example, it independently verifies the operation of each output switch through the voltage loopback circuit. If it detects that the excitation voltage does not match the command status of the output point, it will activate the alarm indicator light. Efficient Output Capacity: The output signal has 16 points, which are non-common. The rated voltage is 24VDC, and the voltage range is 22 - 45VDC. The rated current per point is 2A, with a surge current of 10A for 10ms, which can meet the driving requirements of most industrial field devices. Good Electrical Isolation: The point isolation voltage is 1500VDC, which can effectively prevent external electrical interference and ensure reliable communication and safe operation between the module and other devices.
Application Scenarios Petrochemical Industry: In the processes of oil refining and chemical production, etc., it is used to control the start and stop of various key devices, the opening and closing of valves, etc., to ensure the safety and stability of the production process. For example, in the emergency shutdown system, when an abnormal situation occurs, the 3604E module can quickly output control signals to turn off the relevant devices and prevent accidents. Power Industry: It can be applied in places such as thermal power plants and substations to control and protect generators, transformers, switchgear, etc. For example, in the grid connection control of generators, accurate control signals are output through the 3604E module to achieve the synchronous operation of the generator and the power grid. Other Industrial Fields: In industrial automation scenarios such as metallurgy, papermaking, and shipbuilding, etc., it is used to achieve digital control of various production devices, improve production efficiency and quality, and ensure the safe operation of the equipment.
Fault Cases of the Triconex 3604E Module:
1. Abnormal Output Signals Case
1: A certain output channel of the module fails to output a signal, even though the channel has been set to a high-level output in the control program. After inspection, it is found that the driver chip in the output circuit of this channel is damaged, resulting in the inability to convert the digital signal into an actual voltage output, and thus unable to control the external device. Case
2: Multiple output channels simultaneously have incorrect output signals, and the output level status is inconsistent with the setting in the control program. After investigation, it is found that there is a fault in the power supply part of the module, and the output voltage is unstable, causing the output circuit to not work properly, thus affecting the accuracy of the output signals.
2. Self-check Function Failure Case
1: During the normal operation of the module, the self-check function reports that there is a fault in a certain channel, but the actually externally connected device is working properly, and other channels can also output signals normally. Further inspection reveals that a capacitor in the self-check circuit of this channel is damaged, resulting in an incorrect self-check result and a false report of the channel fault. Case
2: The self-check function of the module cannot be started normally, resulting in the inability to detect potential faults in a timely manner. After analysis, it is found that there is an error in the software program of the module. It may be that the program is interrupted or has an error during the upgrade process, causing the self-check program to not run correctly.
3. Communication Faults Case
1: The module cannot communicate normally with other modules in the Triconex system, resulting in the interruption of data transmission in the entire system. After inspection, it is found that the communication interface chip of the module is damaged and cannot correctly send and receive communication signals. Case
2: During the communication process of the module, there are situations of data loss or errors, resulting in inaccurate data received by the system. After investigation, it is found that the communication line is affected by electromagnetic interference, which affects the data transmission quality, causing errors in the data received by the module.
