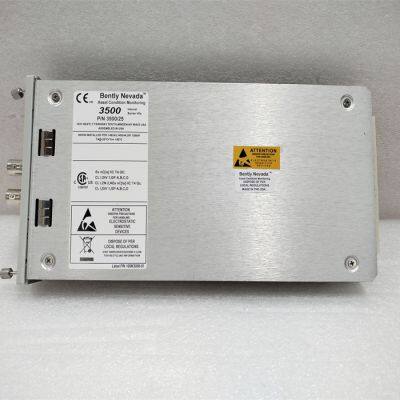

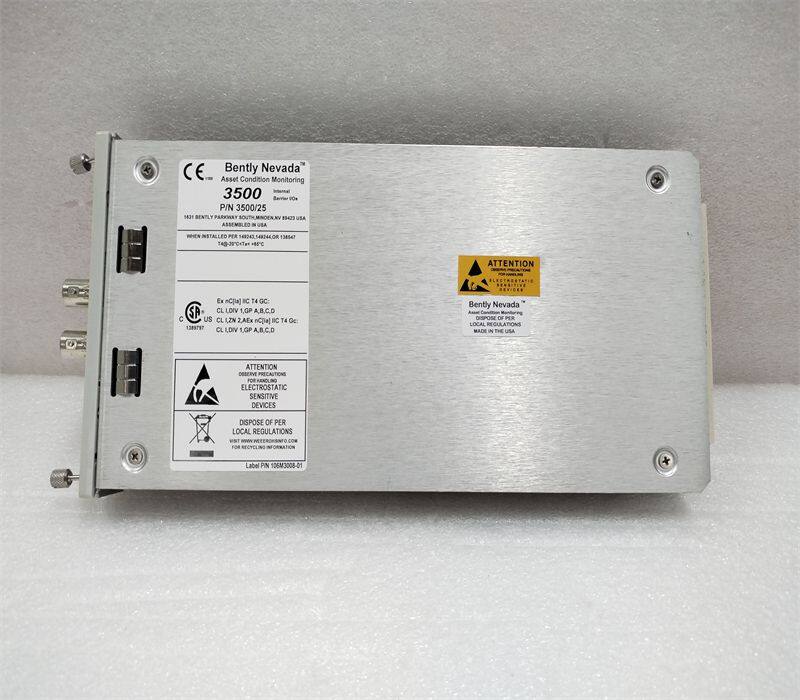

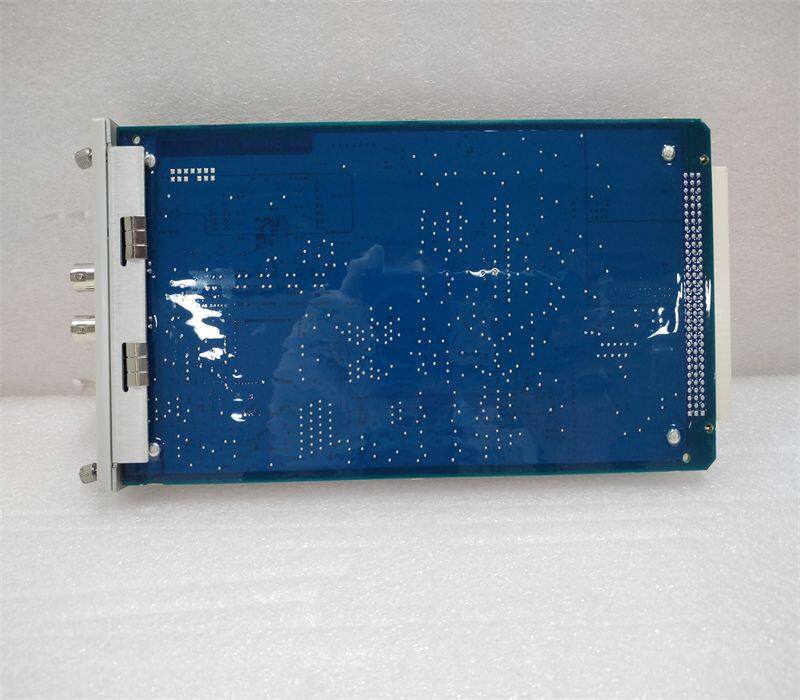

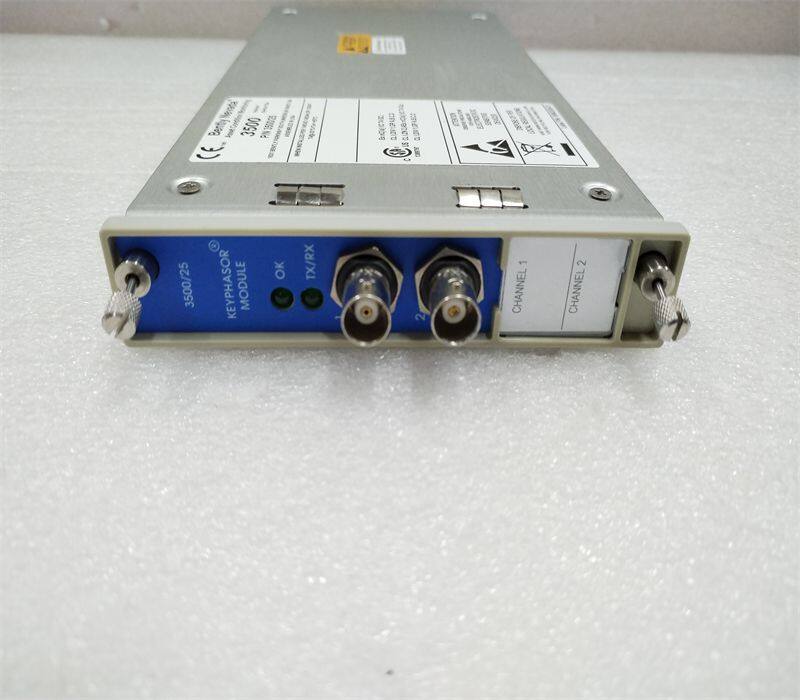

Bently Nevada 3500/25 184684-01 Enhanced Keyphasor Module

• Providing Phasor Signals: As a dual-channel module, it can receive input signals from proximity probes or magnetic sensors and convert them into digital phasor signals. It provides phasor signals for the monitoring modules in the 3500 rack, indicating when the phasor mark on the shaft coincides with the phasor sensor.

• Strong Signal Processing Capability: It is an improvement over the original 3500 system module. While maintaining downward compatibility with existing phasor modules, it expands the phasor signal processing capability.

• Rich Monitoring Functions: It can achieve high-performance vibration and position monitoring. It can measure vibration velocity and acceleration, and also monitor the position of the shaft relative to the bearing, which is used to detect misalignment and other position faults. It has a trend analysis function. By statistically analyzing the current data and historical trends, potential faults can be detected in advance. In addition to vibration and position, it can also monitor other parameters such as temperature, and conduct comprehensive analysis of multiple parameters, which helps to have a comprehensive understanding of the equipment's operating status.

• Excellent Communication Capability: It provides a remote monitoring function and supports multiple industrial communication protocols, such as Ethernet/IP or Modbus. It can be conveniently integrated into existing factory automation systems, enabling operators and engineers to access measurement data in the central control room or even at remote locations.

• Input Signal Range: For the non-isolated I/O module, it is +0.8V to -21.0V; for the isolated I/O module, it is +5V to -11V.

• Output Characteristics: There are two buffered phasor outputs, and the maximum buffered output impedance is 504Ω.

• Power Supply: The maximum per channel is -24V DC, 40mA.

• Power Consumption: The typical power consumption is 3.2 watts.

• Dimensions: 4.72 inches × 0.96 inches × 10.10 inches.

• Weight: 0.46kg.

• Working Environment: The working temperature range is from -30°C to 85°C, and it can operate reliably in harsh industrial environments such as high humidity, dusty conditions, and vibrations.

• Communication Faults: There may be abnormal communication between the phasor module and other modules, such as incorrect operation of the module, communication line faults, configuration errors, etc. The cause can be found and solved by checking the event records and alarm records.

• Signal Abnormalities: The input signal may be abnormal due to sensor faults, connection cable problems, or external interference, etc., resulting in inaccurate or lost phasor signals. At this time, it is necessary to check the connection of the sensor and cable, as well as factors such as the presence of electromagnetic interference.

• Module Hardware Faults: Damage to internal electronic components, power supply faults, etc. may cause the module to not work properly, such as abnormal LED light status, no output signal, etc. It can be troubleshot and repaired by checking the power supply of the module, the LED light indication status, and referring to the fault diagnosis process in the product manual.
