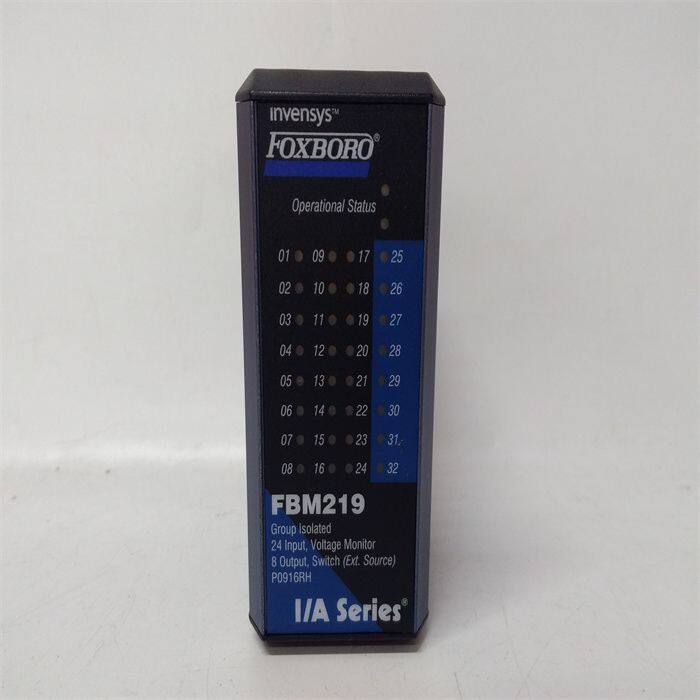

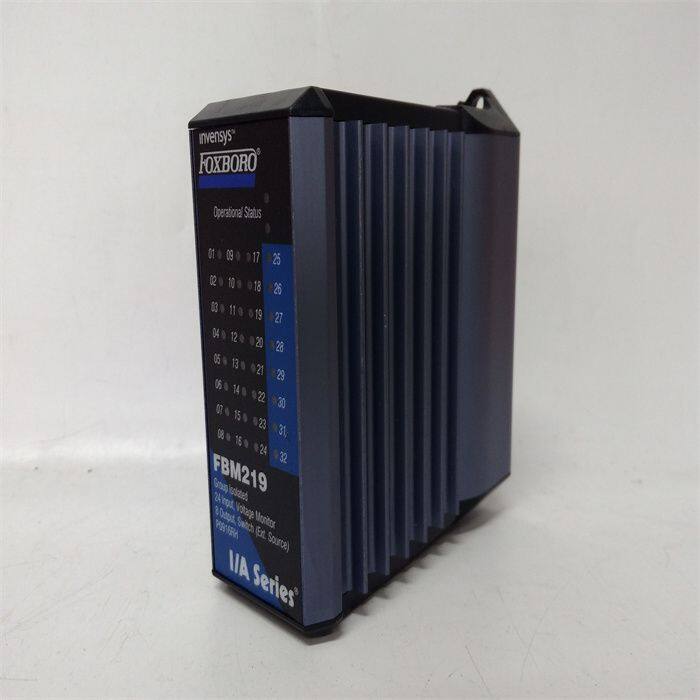

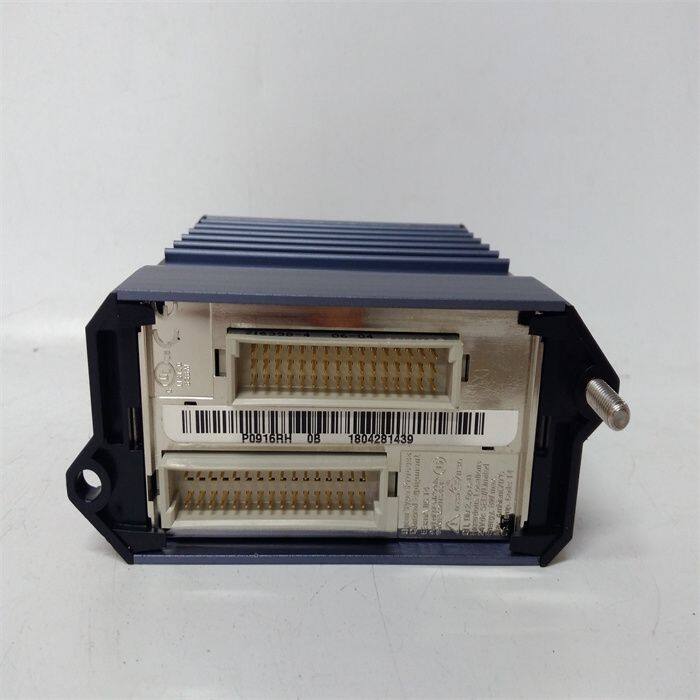

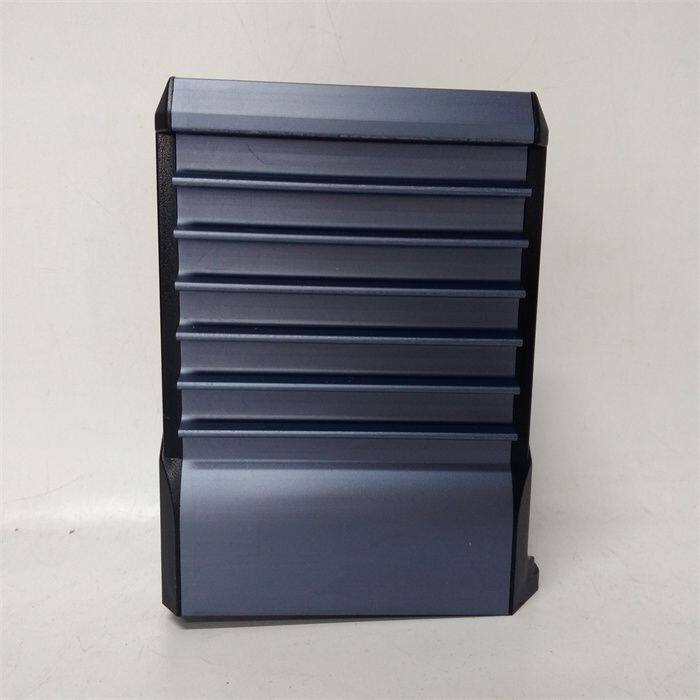

The Foxboro FBM219 P0916RH is a group-isolated 24-input voltage monitor, belonging to Foxboro's I/A Series. Product Features High Channel Count: It has 24 isolated input channels, which can process multiple input signals simultaneously, making it suitable for voltage monitoring in complex systems. High-precision Monitoring: It can accurately monitor the voltage input and promptly detect voltage fluctuations and abnormal situations, providing a guarantee for the stable operation of industrial systems. Easy Installation and Operation: The user-friendly interface facilitates quick and efficient setup and operation. Moreover, the module is installed in a sturdy and durable housing, which can adapt to harsh industrial environments and ensure long-term stable operation.
Technical Parameters Dimensions: Approximately 45cm×20cm×15cm. Weight: Approximately 3kg. Input Characteristics: The input channels are 24 isolated voltage inputs, which can accept voltage signal inputs within a certain range. The specific input voltage range may vary depending on the product specifications. Accuracy: It has a high monitoring accuracy and can accurately reflect the actual value of the input voltage. Isolation Performance: The channels are isolated from each other, which can effectively prevent signal interference and improve the accuracy and reliability of monitoring. Application Fields It is widely applied in the manufacturing industry, power plants, and other industrial fields. It can be used to monitor the power supply voltage of various industrial devices to ensure that the devices operate within the normal voltage range and prevent device damage or production interruption caused by abnormal voltage.
Its working principle is as follows: Signal Input and Isolation: This module has 24 isolated input channels, which can be connected to various voltage signal sources that need to be monitored. The isolation design can prevent electrical interference between channels, ensuring the independence and accuracy of each input signal, and enabling stable operation even in complex electromagnetic environments. Signal Conversion and Processing: The input voltage signal first passes through the signal conditioning circuit, which converts it into a level range suitable for processing by the internal circuit. Then, a high-precision analog-to-digital converter (ADC) converts the analog voltage signal into a digital signal. The module uses advanced microcontroller technology to process and analyze the digital signal and calculate the actual value of the input voltage.
Monitoring and Comparison: The microcontroller compares the processed voltage value with the preset threshold to determine whether the voltage is within the normal range. If voltage fluctuations or abnormalities, such as overvoltage and undervoltage, are detected, the module will promptly trigger the corresponding alarm mechanism. Communication and Output: The module communicates with external devices or control systems through the RS-485 communication interface, and transmits the monitored voltage data to the host computer or other relevant devices in real time for centralized monitoring and management. At the same time, according to the preset conditions, it can also output control signals through the output interface, such as controlling the operation of relays or sending alarm signals to other devices, so as to achieve the protection or control of related devices.
