Home > Manufacturing & Processing Machinery > Machine Tools > Planer > Factory Direct Sell B5016C Cheap Slotting Machine With CE Standard
Factory Direct Sell B5016C Cheap Slotting Machine With CE Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Popular Model BK5032 Metal CNC 3/4 Axis Slotting Machine With High PrecisionNegotiableMOQ: 1 -
Popular Model B5020 Factory Sale Price Cheap Keyway Slotting MachineNegotiableMOQ: 1
-
Price of Vertical Shaper Machine B5032 for Metal Vertical Slotting MachineNegotiableMOQ: 1
-
Model BK5018 Good Price CNC Slotting MachineNegotiableMOQ: 1
-
BK5018 Heavy Duty Cnc Vertical Slotting Machine With High PrecisionNegotiableMOQ: 1
Products Description
Features:

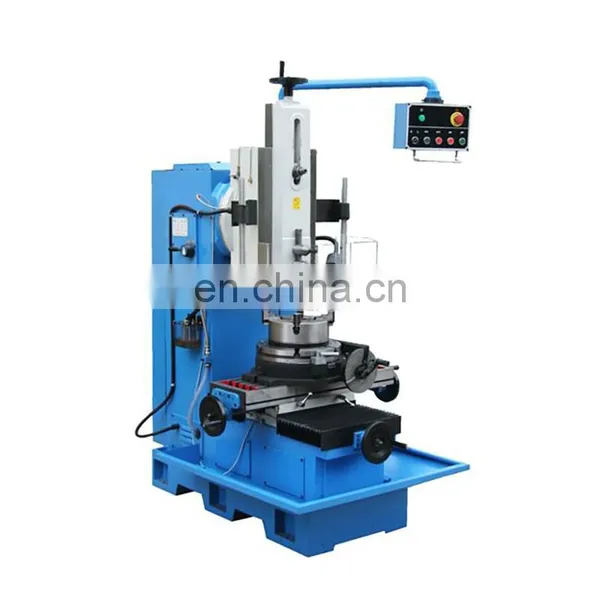

Vetical slotting machine B5016C
Brake motor,
roary table
index plate,
chuck
spindle cover for Ce electric protection.
Brake motor,
roary table
index plate,
chuck
spindle cover for Ce electric protection.
Specification |
Unit |
B5016C |
Max slotting length |
mm |
160 |
No of ram strokes per minute |
23,32,44,48,67,92 |
|
Swing angle of ram |
deg |
±45° |
Table diameter |
mm |
350mm(14) |
Vertical adjustment of ram |
mm |
160 |
Distance between tool hoolding surface and column front |
mm |
485 |
Distance between table surface and lower end of ram slide |
mm |
320 |
Max.cross travel of table |
mm |
360 |
Max.cross angle of table |
mm |
320 |
Max.rotary angle of table |
deg |
360 |
Tool shank size (WXH) |
mm |
25*40 |
Max.cutting force |
N |
4500 |
Max.table load-carrying capacity |
KGS |
300 |
Width of table center T-slot |
mm |
14 |
Power of main drive motor |
KW |
15/0.85 |
Rotating speed of main drive motor |
rpm |
700/1410 |
Net weight(approx) |
KGS |
1000 |
Overall dimension(LXWXH) |
mm |
1270x1100x1700 |
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
