Home > Manufacturing & Processing Machinery > Machine Tools > Planer > Popular Model B5020 Factory Sale Price Cheap Keyway Slotting Machine

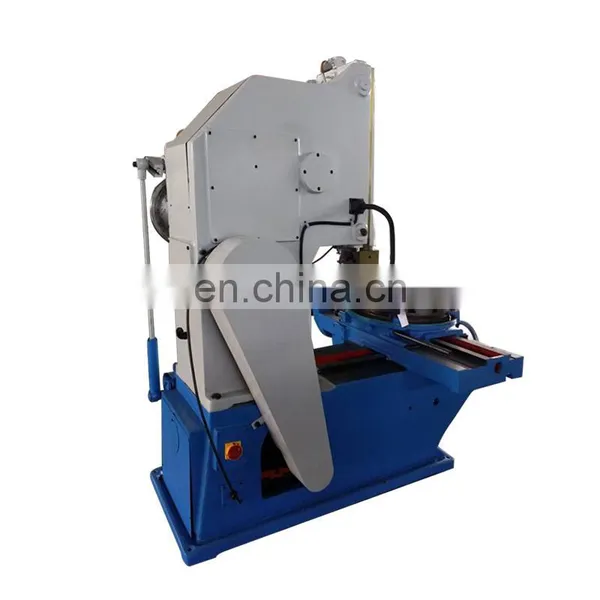

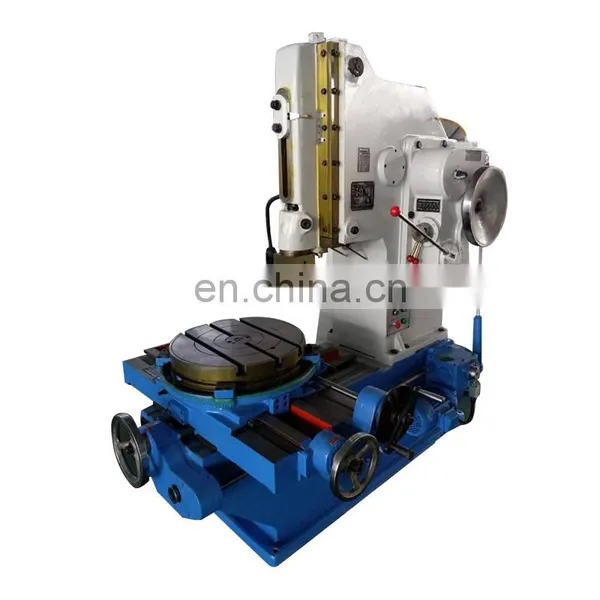

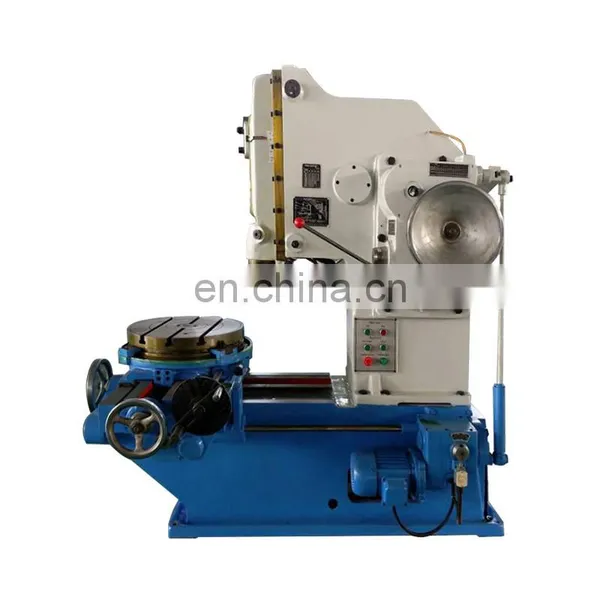

Popular Model B5020 Factory Sale Price Cheap Keyway Slotting Machine

Popular Model B5020 Factory Sale Price Cheap Keyway Slotting Machine thumbnail-3

Popular Model B5020 Factory Sale Price Cheap Keyway Slotting Machine photo-1

Popular Model B5020 Factory Sale Price Cheap Keyway Slotting Machine photo-2

Popular Model B5020 Factory Sale Price Cheap Keyway Slotting Machine photo-3

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Features:

1. Configuration system. 2. Three-axis association. 3. The plunger reciprocates in a vertical straight line with the slider, and the work piece. is processed by intermittent feeding movement along the longitudinal, transverse and circumferential directions. 4. The NC system and the fourth axis are configured to realize the bolt function of the special work piece, which greatly improves the application range and processing efficiency of the machine tool. 5. Suitable for the processing of key slot and spline in auto parts and aviation plugs.

Specification

Specification	B5020
X-axis stroke	500mm
Travel Y-axis	500mm
Max.pin length	200mm
Sleeper movement times	32,50,80,125min
Main motor power(servo motor)	3KW
Workbench size	500×500mm
Fast moving speed (X/Y)	-
Gyration angle	360°
The distance between the working table and the slippery pillow	320mm
Max.load of worktable	120KG
shape size	1916×1305×1995mm
Machine tool weight(about)	2200KG
Package dimensions	2200/1400/2300mm

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
