Home > Manufacturing & Processing Machinery > Machine Tools > Planer > Vertical Metal Slotting Machine BC5063 With CE Standard Factory Direct Sell

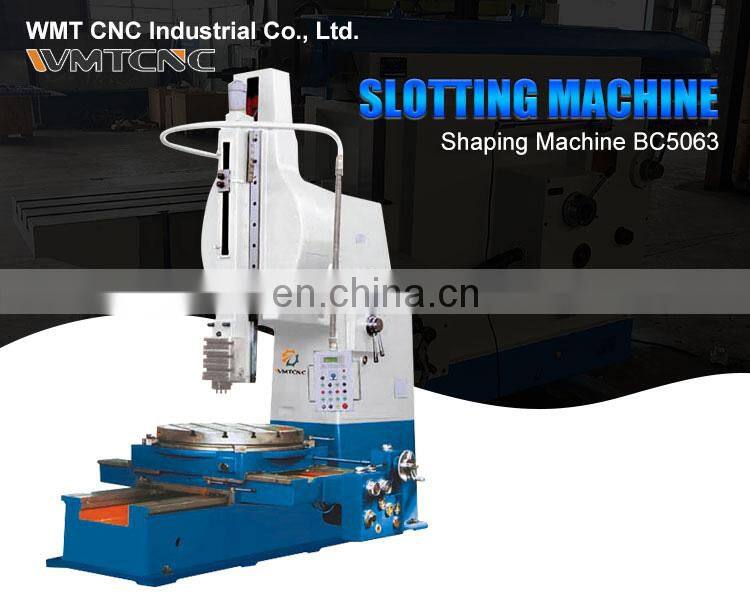

Vertical Metal Slotting Machine BC5063 With CE Standard Factory Direct Sell

Vertical Metal Slotting Machine BC5063 With CE Standard Factory Direct Sell photo-1

Vertical Metal Slotting Machine BC5063 With CE Standard Factory Direct Sell photo-2

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Features:

1. This slotting machine is used for cutting plane and shape of parts surface and groove, etc. 2. The machine adopts double crank mechanism the moving stable table adopts advanced PLC system and this feeding system is composed of digital control system and feeding motor system. 3. Worktable with mobile rotary positioning, for processing multi-keyway provides convenient, continuous non-polar feed,

with real-time feed parameters are shown on a text display. 4. When the machine tool is used for a long time, the machine system wears severely, it can be carried out by

professionals to do some error compensation with the control system to ensure the accuracy.

Specification	BC5063
Maximum insertion length of the ram(interpolated inner hole 530 mm)	630mm
The number of reciprocation per minute of the ram	8,12,20,30r.p.m
Ram tilt angle	±10
Tool chuck T-slot width	22H11mm
Distance from the tool support surface to the front wall of the bed	1120mm
Work surface to the lower end of the carriage	800mm
Worktable maximum longitudinal movement distance	1000mm
Worktable maximum lateral movement distance	700mm
Worktable vertical and horizontal feed	0,10,0.20,0.32,0.54,0.80,1.30mm/per
Worktable rotary feed	3'6',9'36",16'12",24',39'deg/per
Table diameter	1120mm
Workbench maximum load	200kg
Workbench central T-slot width	22H11 mm
Main drive motor power	11kw
Feed servo motor	4.0kw
Ram position adjustment motor	0.55kw1400r.p.m
Maximum cutting force	20000N
Machine net weight(about)	11T
Machine tool outline size (length x width x height)	3580×2390×3660
Split package size	3780/2560/1300/2350/1200/2500mm

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
