Factory Direct Sell Vertical Metal Slotting Machine BC5050 With CE Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Sell Vertical Metal Slotting Machine BK5030 With CE StandardNegotiableMOQ: 1 -
Heavy Duty BC50125 Metal Slotting Machine With CE From China FactoryNegotiableMOQ: 1
-
Vertical Metal Slotting Machine BC50100 Factory Direct SellNegotiableMOQ: 1
-
Factory Direct Sell Vertical Metal Slotting Machine BK5035 With CE StandardNegotiableMOQ: 1
-
Factory Direct Sell Vertical Metal Slotting Machine BK5032 With CE StandardNegotiableMOQ: 1
Product Description
Model |
BC5050 |
Max slotting length |
500mm |
Table diameter |
1000mm |
Cross traverse of worktable |
660m |
Longitudinal traverse of worktable |
1000mm |
Max weight of workpiece |
2000kg |
Distance between tool holding Surface and column front |
990mm |
Range of ram adjustment |
430mm |
Distance between worktable and the lower side of slide |
740mm |
Inclination of ram head(Left or right directions) |
±10 degree |
Number of ram strokes(per min.) |
9,125,18,25,36,50 |
Longitudinal and cross feeds of worktable(mm per ram stroke) |
0.1-1.2-5mm |
Rotary feeds of worktable(min per ramstroke) |
3′-36′ |
Max cutting force |
1600N |
Main motor |
7.5KW 1440 r.p.m |
Coolant pump motor |
0.125KW 2800 r..p.m |
Net weight of machine(approx) |
10.3t |
Overall dimensions L W H |
3480x2085x3307 |

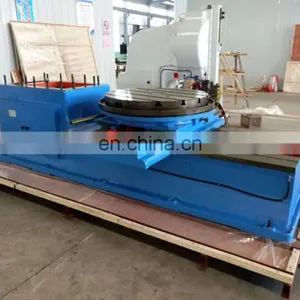

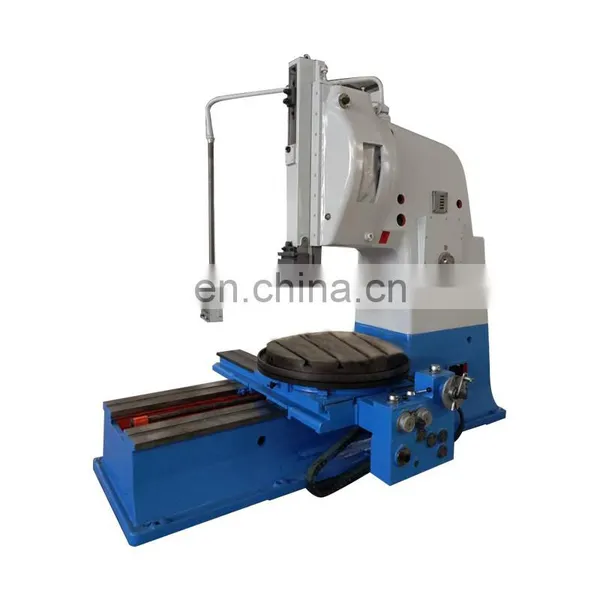

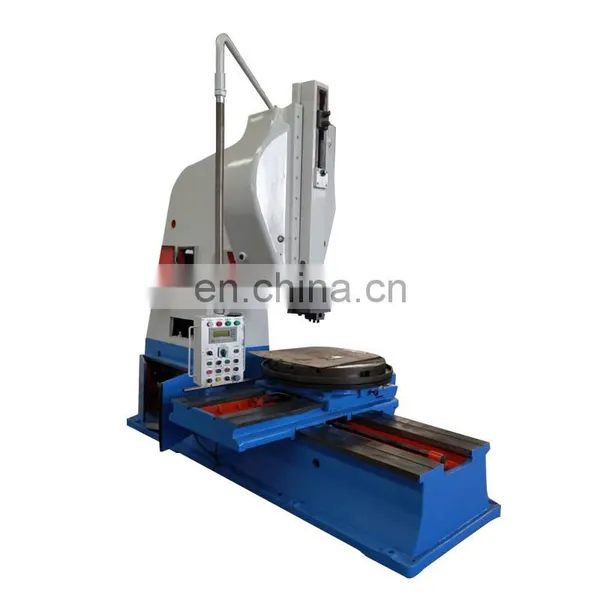

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
