Home > Manufacturing & Processing Machinery > Machine Tools > Planer > Vertical Metal Slotting Machine BC50100 Factory Direct Sell

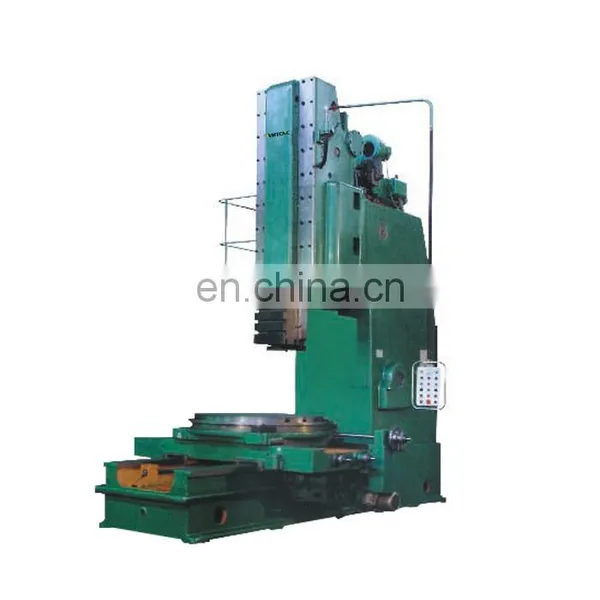

Vertical Metal Slotting Machine BC50100 Factory Direct Sell

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Main features:

1. This machine can process various large and medium-sized parts inside and outside planes, profiles and keyways, etc.

2. The upward or downward speed of the ram can be adjusted during work without stopping.

3. The ram, table and oil pump are all driven by separate motors, and the slotting speed can be adjusted steplessly.

4. The machine is equipped with various safety devices, and the machine is equipped with an electromagnetic automatic tool holder and tool holder.

5. The tool holder is used for external plunge cutting, and the tool holder is used for internal plunge cutting and key slot insertion.

Specification	BC50100
Maximum cutting length (interpolated inner hole 850mm)	1000mm
Cutting stroke speed	4-25m/min
Return travel speed	7-25m/min
Maximum weight for pluggable work	4000kg
Main drive motor power	37kw
Allow maximum cutting force (when the stroke speed is 16m-20m)	24500N
Table diameter	1250mm
Maximum movement of the workbench	V: 1200mm, H: 1100mm, R: 360°
Distance from the tool support surface to the front wall of the bed	1120mm
Vertical feed	0.2-5mm/double stroke
Horizontal feed	0.2-5mm/double stroke
Circimference (on the circumference of 700)	0.4-10mm/dcxble stroke
Distance from work surface to the lower end of the carriage	1140mm
Workbench quick shift： portrait and landscape	500mm/min
Machine dimensions (length x width x height)	4400x2830x5730mm
Total machine weight (including electrical equipment)	22T

Company Profile

Professional Service

Customers' Feedback

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
