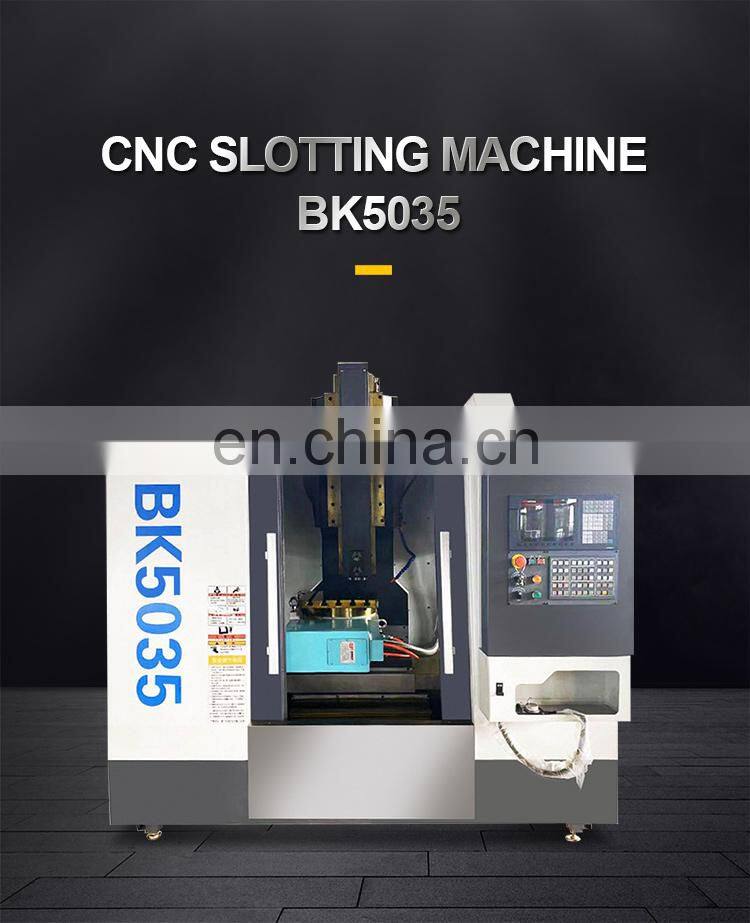

factory direct sell vertical metal slotting machine BK5035 with CE standard
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
factory direct sell vertical metal slotting machine BK5032 with CE standard
-
vertical metal slotting machine BC5063 with CE standard factory direct sell
-
Y3150ET Standard Precision Hobbing Machine with Competitive Price
-
Y3180H Standard Precision Hobbing Machine with CE Standard
-
3180-CNC2 Numerical Control Hobbing Machine with Good Accuracy
-
3150E-CNC4 High Quality Hobbing Machine with CE Standard
Product Description
Product Description
Performance characteristics:
1. This machine has the functions of machining keyways, teeth, and ploughing planes and forming surfaces.
2. The machine has high power, strong cutting force, good rigidity, high cost performance, long service life, and can be widely used in machine tool and automobile manufacturing, various mechanical, electrical and aerospace industries.
3. It is an ideal equipment for processing keyways of various materials.
Specification | unit | BK5035 |
The maximum length of ram | mm | 350 |
Ram adjustment stroke | mm | 200 |
Number of ram movements | n/min | 0-70 |
working desk size | mm | 750x510 |
Table travel (X, Y) | mm | 400x420 |
The distance between the axis of the tool bearing hole and the forearm of the column | mm | 625 |
The distance between the end face of the cutter head support hole and the table | mm | 700 |
X direction motor torque | (N.M) | 10 |
Y direction motor torque | (N.M) | 15 |
Fast-moving | X (m/min) | 5 |
Y(m/min) | 5 | |
Ball screw (X) | FFZD3205-3/P4 | |
Ball screw (Y) | FFZD3205-3/P4 | |
main motor power | KW | 5.5 |
Machine tool weight (about) | KG | 3400 |
Package dimensions | mm | 2600/2300/2500 |
