New Product Shaper Machine B635A Shaping Machine Metal
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Metal Shaping Machine Tool BC6050 Shaper Machine New
-
Heavy Duty BC6085 Horizontal Metal Shaping Mechanical Planer Machine
-
Maintenance Horizontal of Shaping Planer BC6066 Shaper Machine
-
Metal Shaper Machine Horizontal Gear Planer BC6050 Shaping Machine
-
High Precision Heavy Duty BC60100 Metal Mechanical Horizontal Shaping Machine
-
Planner BC6085 Horizontal Mechanical Metal Shaping Shaper Machine
Product Description
Product Description

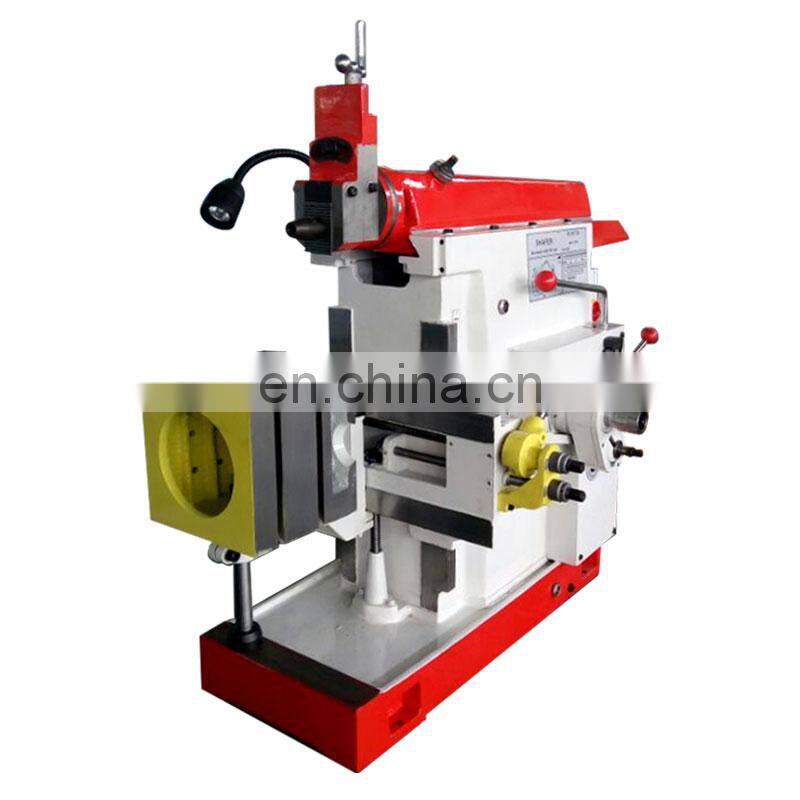

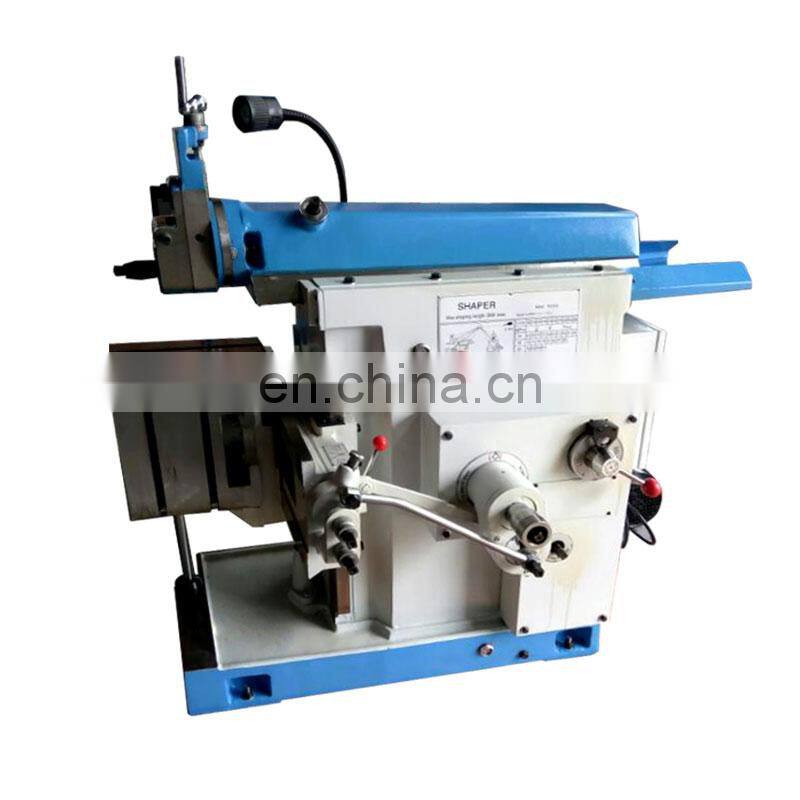

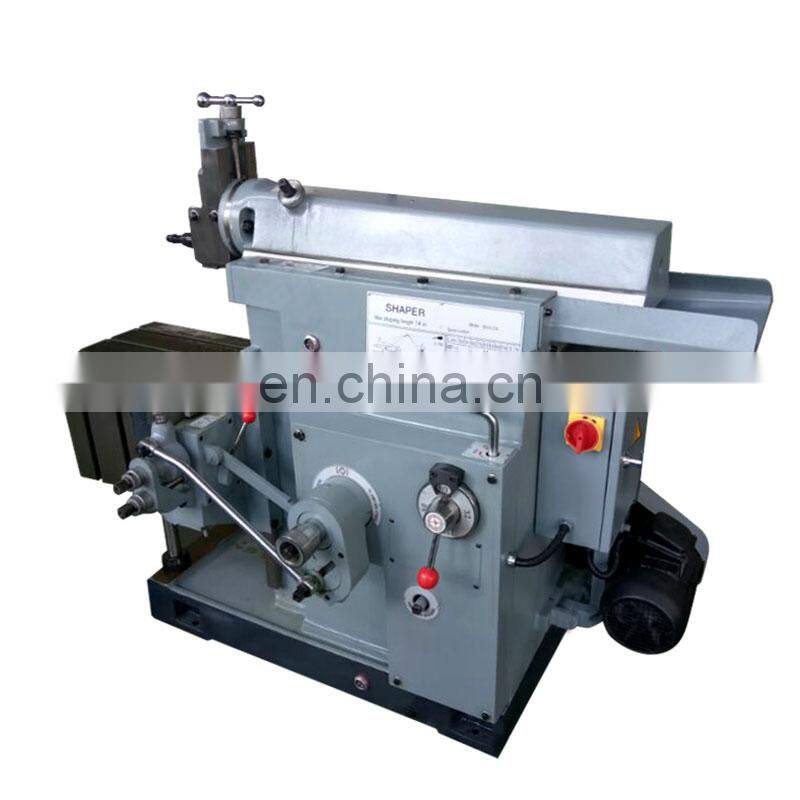

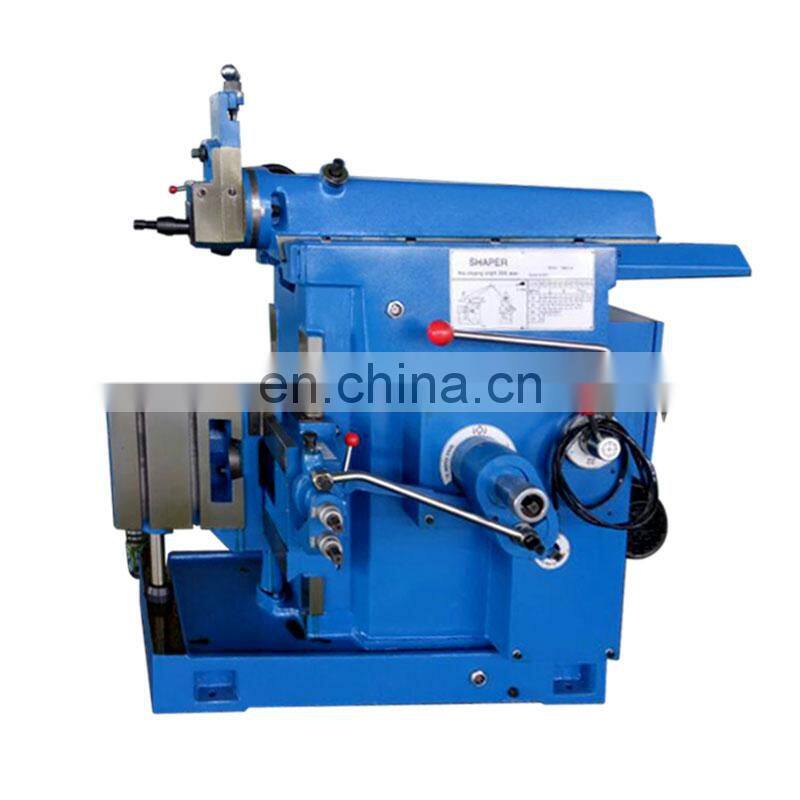

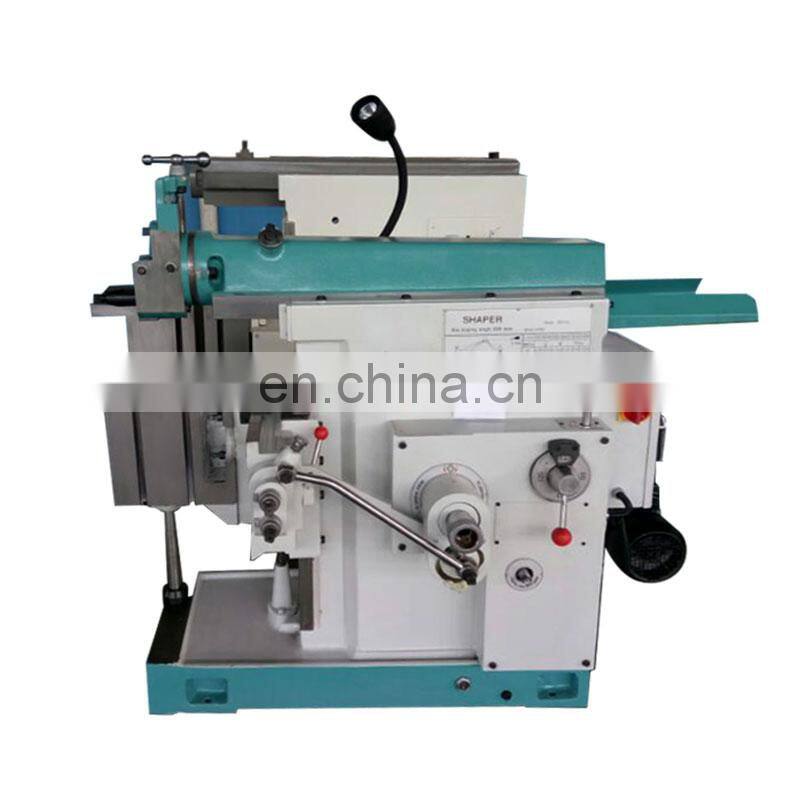

New product shaper machine B635A shaping machine metal
Specification | B635A | ||
Maximum Planing Length | 350mm | ||
Maximum Travel from the bottom of ram to Worktable | 330mm | ||
Maximum travel of worktable(horizontal) | 400mm | ||
Maximum travel of worktable(vertical) | 270mm | ||
The maximum distance from shaper body to its leading surface | 550mm | ||
The maximum displacement of ram | 170mm | ||
Maximum turning angle of worktable( no vice) | ±900 | ||
The max rotatory angle of worktable(vice) | ±550 | ||
The max vertical travel of blade frame | 110mm | ||
The reciprocating times per minute | 32, 50, 80, 125, times min | ||
The ram back and forth a table feed amount | Wheel a gear (Vertical) | 0.18mm | |
Wheel a gear (Horizontal) | 0.21mm | ||
Wheel four gears (Vertical) | 0.73mm | ||
Wheel four gears (Horizontal) | 0.84mm | ||
Electric Motor | 1.5kw 1400r/min | ||
Carton Size | 1530*930*1370mm | ||
NW/GW kg | 1000kg/1200kg | ||
Products Display
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
