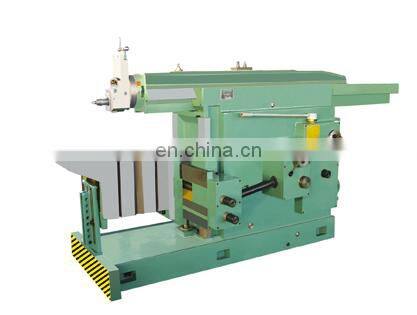

BC60100 China High Quality Shaper Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specification

Specifications			BC60100
Maximum Length(mm)			1000
Horizontal travel of worktable(mm)			800
The max travel from the bottom of Ram to Worktable(mm)			400
Vertical Travel of Worktable(mm)			380
Dimension of Worktable Size(L×W)(mm)			1000×500
Travel of Blade Frame(mm)			160
The max rotatory angel of blade frame(°)			±60°
Max Size of Planing tool(W×T)(mm)			30×45
Ram reciprocating times per minutes			15,20,29,42,58,83
Swivel range of worktable mechanic feedings	Ten grades of horizontal feedings(mm)	0.3~3
		Eight grades of vertical feeding(mm)	0.15~0.5
Rapid feed rate of worktable	Horizontal feeding(mm)	3
		Vertical feeding(mm/min)	0.5
T-slot in the middle of worktable(mm)			22
Main motor power(kw)			7.5
Overall dimension(L×W×h)(mm)			3640×1575×1780
Net. W/Gross .W(kg)			4870/5150

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
