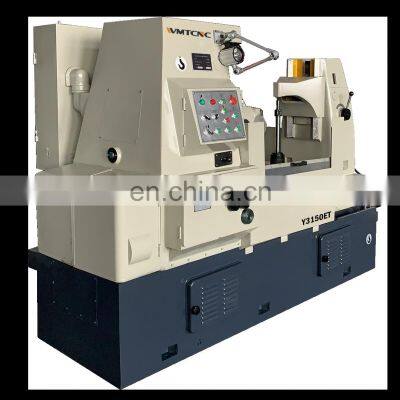

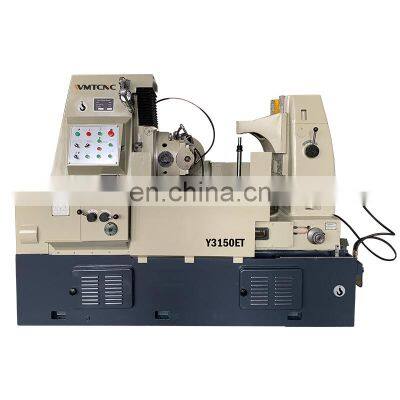

Y3150ET Standard Precision Hobbing Machine With Competitive Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Y3180H Standard Precision Hobbing Machine With CE StandardNegotiableMOQ: 1 -
3180-CNC2 Numerical Control Hobbing Machine With Good AccuracyNegotiableMOQ: 1
-
3150E-CNC4 High Quality Hobbing Machine With CE StandardNegotiableMOQ: 1
-
3150-CNC2 High Quality Hobbing Machine for Gear ProcessingNegotiableMOQ: 1
-
Y3150E Good Price Standard Precision Hobbing Machine For SaleNegotiableMOQ: 1
Properties and pecularities
1. For standard precision hobbing machine, we take regulation from “GB8064-87” to test our machines cefore delivered from factory. Under normal conditions, the precision come up to “GB10095-88” 7th degree precision according to
2. This machine applies to bulk or small batch of hobbing process against roller gear or worm wheel
3. According to buyer's requirement, there is tangential advancing multi-heads worm wheel avaible for option
Name |
Y3150ET |
Max. diameter of workpiece |
With smaller column 1000mm |
Without smaller column 2200mm |
|
Max. processing module |
16mm |
Max. processing width |
500mm |
Min. number of teeth processed |
12 |
Max. vertical travel of tool seat |
800mm |
Max. returning angle of tool seat |
±60° |
Distance from axis of hob to operating platform |
200-1000mm |
Taper of principal spindle |
MT6 |
Allowed for install hob |
Max.diameter 245mm |
Min. length 220mm |
|
Max. axis movement of hobbing cutter |
100mm |
Dia. of hob mandrel |
φ27、φ32、φ40、φ50mm |
Distance from axis of hob to axis of operating platform |
100-1250mm |
Swift movement distance of operating platform hydraulic unit |
- |
Hole diameter of operating platform |
200mm |
Hole taper of spindle seat of workpiece |
MT6 |
Dia. of operating platform |
950mm |
Principal spindle REV and range of REV |
7step 16-125r/min |
Swift movement speed of tool seat |
520mm/min |
Swift movement speed of operating platform |
470mm/min |
Distance from operating platform surface to cutter racket bearing end surface |
700-1200mm |
Axis feeding volume steps and range of feeding volume |
8step 0.39-4.39mm/r |
Principal motor power and synchronous rev |
11kw 1500r/min |
Power of axis swift motor and synchronous rev |
3kw 1500r/min |
Power of swift motor of operating platform and synchronous rev |
1.5kw 1000r/min |
Power of hydraulic pump and synchronous rev |
1.5kw 1000r/min |
Approximate mass of machine |
15000kg |
Outer size of machine(L×W×H） |
3995×2040×2700mm |
