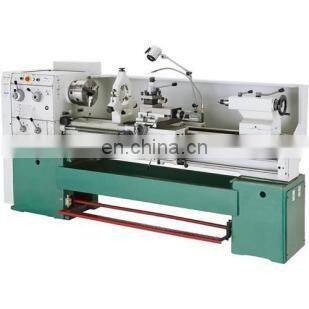

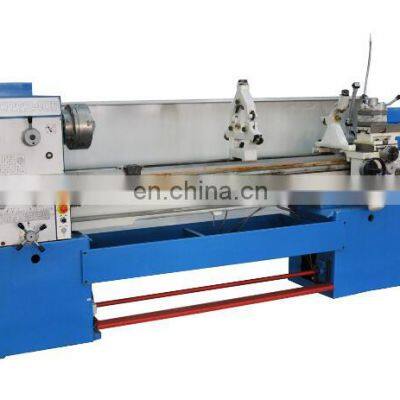

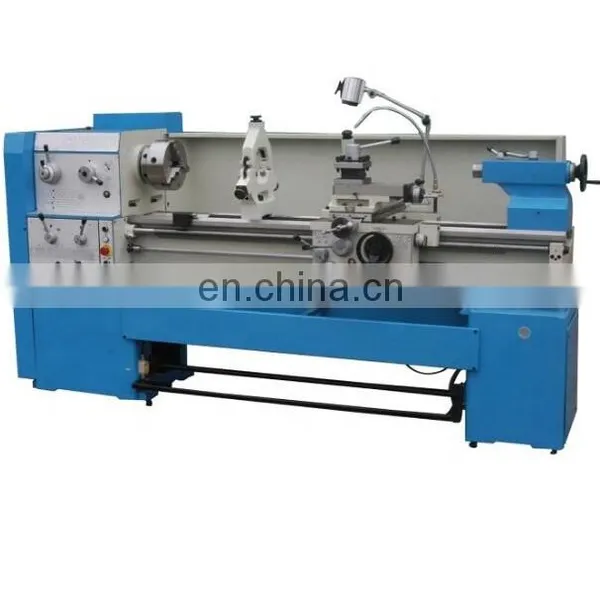

CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work

CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work thumbnail-1
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work thumbnail-2
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work thumbnail-3
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work thumbnail-4
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work thumbnail-5
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work photo-1
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work photo-2
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work photo-3
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work photo-4
CD6240B 1000 mm Length Cheap Manual Lathe Machine From China for Metal Work photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Features:
heavy duty gap engine manual lathe machine:
Super voice frequency heated bedways Hardened and grounded gears in the headstock With 2 precision D degree taper roller bearings on the spindle Integrated deluxe cast iron floor stand Tolerance test certificate, test flow chart included
Main specification
MODEL
CD6236B
CD6240B
CD6250B
CD6260B
CD6236C
CD6240C
CD6250C
CD6260C
CAPACITY
Max.swing over bed
360mm(14")
400mm(16")
500mm(19-3/5")
600mm(23-3/5")
Max.swing over cross slide
185mm(7-1/4")
225mm(9")
325mm(13")
360mm(14")
Max.swing over gap
490mm(20")
550mm(21-1/2")
630mm(25")
730mm(29")
Effective length of gap
260mm(10-1/4")
Center Distance
1000/1500/2000/3000mm(40"/60"/80"/120")
Bed Width
330mm(13")
HEADSTOCK
Spindle hole
65mm(2-3/5")/80mm(3-3/5")
Spindle nose
ISO-D8
Spindle speed(Number)
(15steps)24-1600/24-1600rpm(15steps)
FEEDS
Longitudinal feeds range
66kinds 0.072-4.038mm/rev
Cross feeds range
66kinds 0.036-2.019mm/rev
Metric threads range
66kinds 0.5-28
Inch threads range
66kinds 1-56inch
Moudle threads range
33kinds 0.5-3.5mπ
Diametral threads range
33kinds 8-56D.P
CARRIAGE
Max.travel of top slide
130mm(5")
Max.travel of cross slide
300mm(12")
Max.size of toolshank
20x20mm/25x25mm
TAILSTOCK
Dia.of tailstock sleeve
65mm(2-1/2")
Taper of tailstock sleeve
MT5
Max.travel of tailstock
120mm(4-3/4")
MOTOR
Main drive motor
5.5kw
7.5kw
Rapid traverse motor
250w
Coolant pump motor
125w
PACKING LxWxH
Center Distance(1000mm)
2450x1150x17500mm(96x46x71")
Center Distance(1500mm)
2950x1150x17500mm(115x46x71")
Center Distance(2000mm)
3450x1150x17500mm(137x46x71")
N.W/G.W
Center Distance(1000mm)
1520/2170kg 1350/2000kg
1560/2210kg 1640/2290kg
1600/2250kg 1700/2350kg
1640/2290kg 1800/2500kg
Center Distance(1500mm)
1750/2390kg 1850/2550kg
1770/2410kg 1890/2590kg
1830/2470kg 1910/2610kg
1870/2530kg 2010/2760kg
Center Distance(2000mm)
/ 2090/2860kg
2010/2780kg 2090/2860kg
2070/2820kg 2150/2920kg
2130/2860kg 2250/3070kg
Center Distance(3000mm)
/
/
/
/

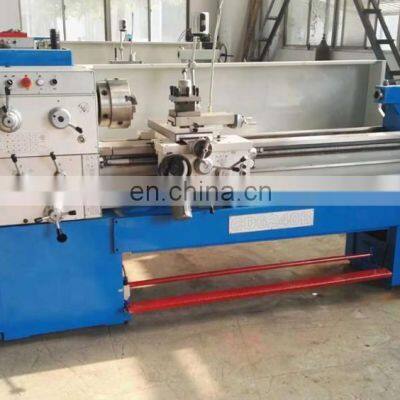

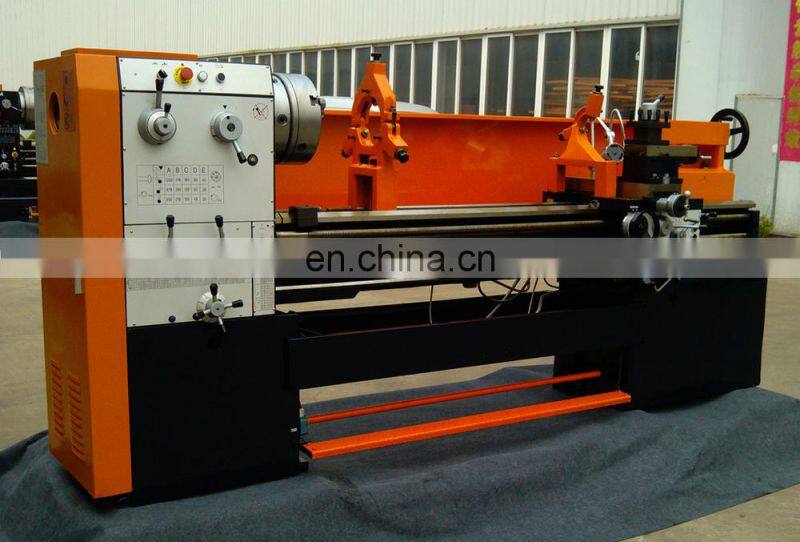

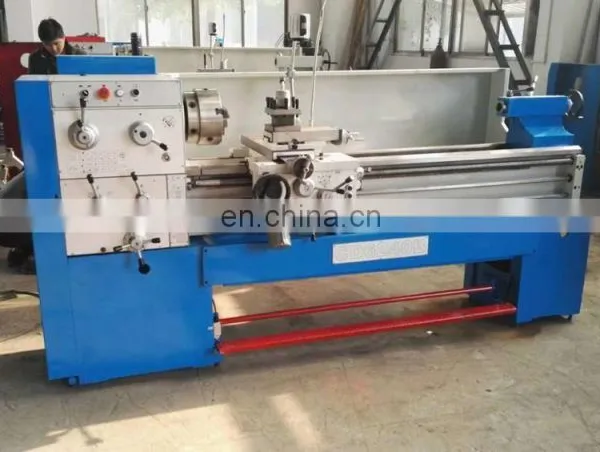

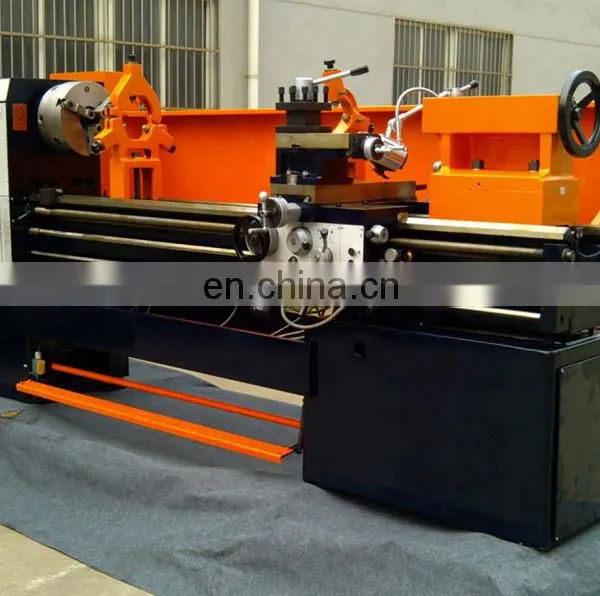

Details about the real pictures:
