CDK6160X1000 Big Bore Dia.200mm CNC Lathe Machine for Metal Cutting
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6150 X1000 Length Torno CNC for Threads MakingNegotiableMOQ: 1 -
Desktop Cnc Lathe CNC180 Mini Cnc Lathe Machine for Education and Hobby UseNegotiableMOQ: 1
-
CK50T Cnc Slant Bed CNC Lathe MachineNegotiableMOQ: 1
-
CK30L Mini Slant CNC Lathe Machine Price for Hobby and EducationNegotiableMOQ: 1
-
CK6125SX450 Horizontal CNC Lathe Machine For School Education and Hobby UsersNegotiableMOQ: 1
Technology Data

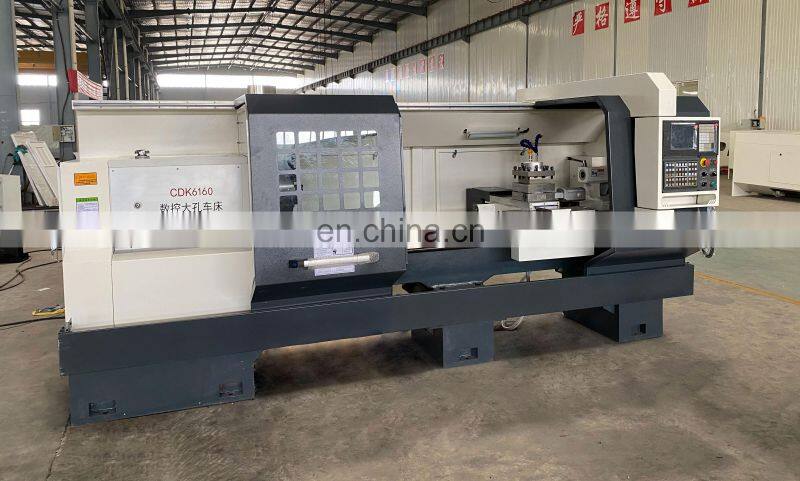

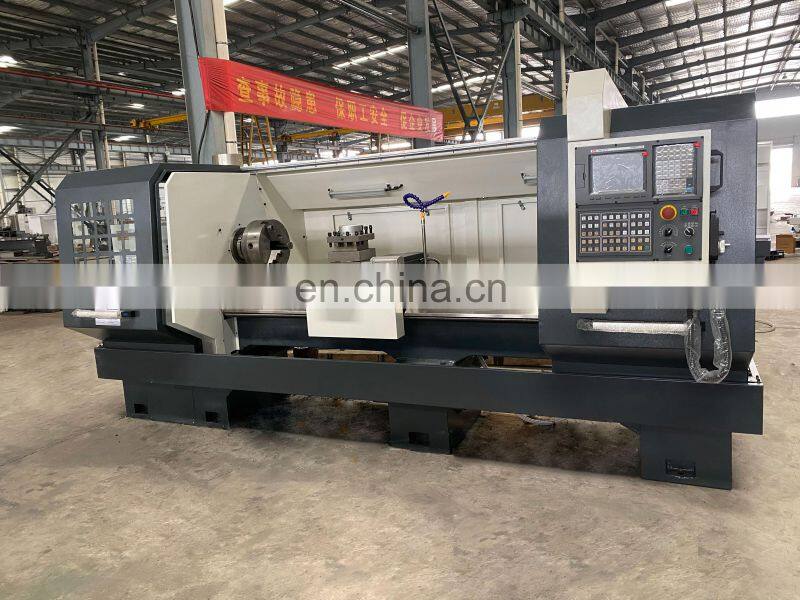

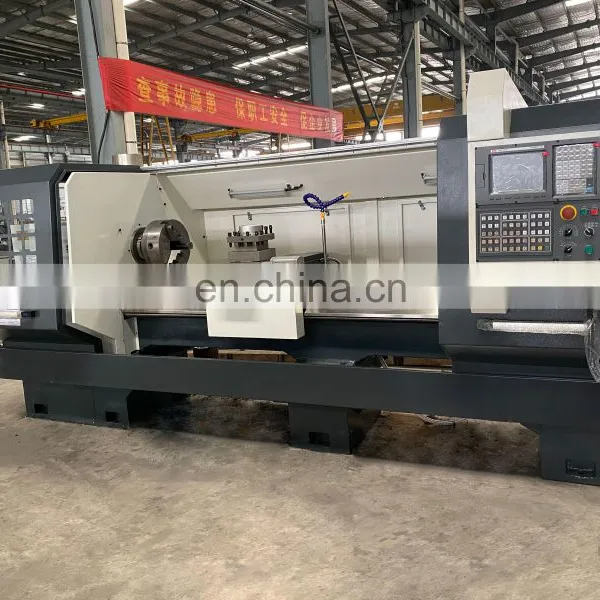

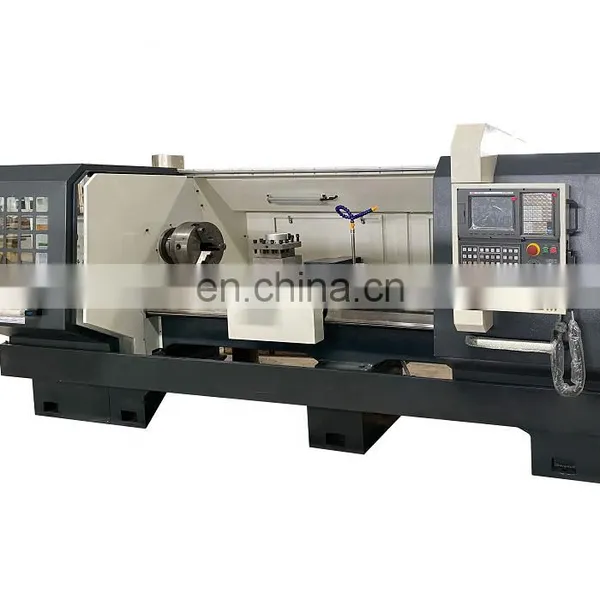

Big Bore CNC Lathe Machine Model CDK6160

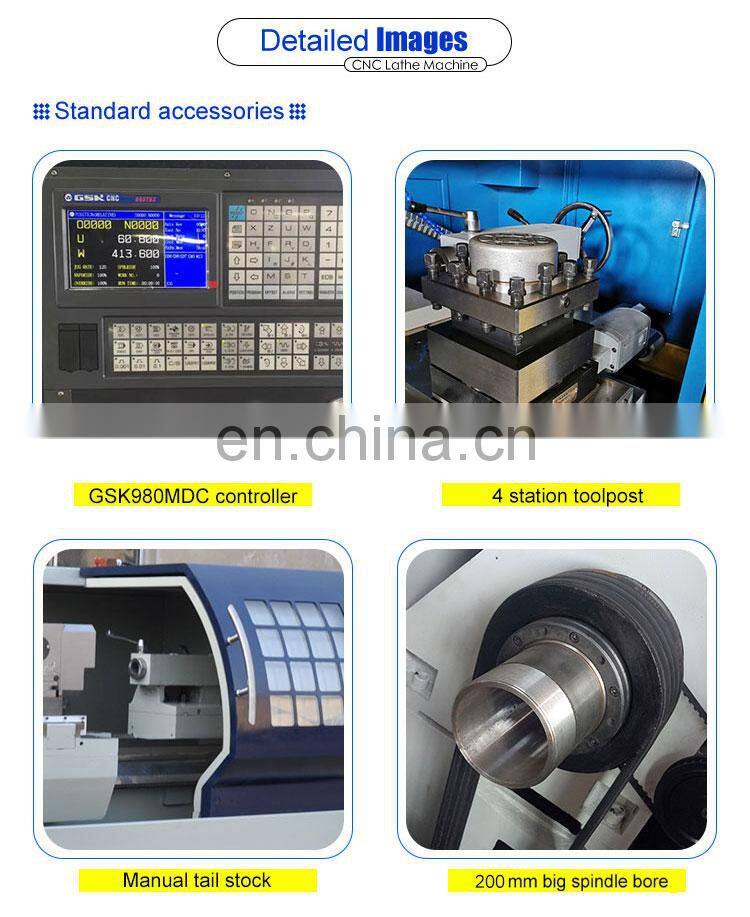

200mm big spindle bore dia.
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Item | Unit | CDK6160 | ||
Max dia.swing over bed | mm | 600 | ||
Max dia.swing over cross slide | mm | 370 | ||
Max.length of work-piece | mm | 870 | ||
Width of bed | mm | 400 | ||
Spindle bore | mm | 200 | ||
Power of spindle motor | Kw | 7.5 | ||
Mode of spindle speed | Stepless Frequency Speed Adjustment | |||
Range of spindle speed | r/min | 70-500 | ||
Max.traverse of X/Z | mm | X:310 Z:800 | ||
X/Z X/Z rapid traverse | mm/min | 4000 | ||
X-axis motor | Speed | r/min | 1500 | |
Torgue | N.m | 6 | ||
Power | Kw | 1.5 | ||
Speed | r/min | 1500 | ||
X-axis motor | Torque | N.m | 10 | |
Power | Kw | 2.3 | ||
Tailstock quill | Diameter | mm | 75 | |
Travel | mm | 150 | ||
Taper | Morse NO.5 | |||
Electric tool-post | Model | LDB4-125（6150B） | ||
No.of tool stations | Vertical four-station | |||
Dimension | mm | 192×192 | ||
Turret indexing time | S | 2.6 | ||
Chuck | K11-500 three jaw chuck | |||
Positioning accuracy | mm | 0.020 | ||
Repositioning accuracy | mm | 0.01 | ||
Overall dimensions(L*W*H) | mm | 2700×1450×1730 | ||
Machine weight | kg | 3000 | ||
