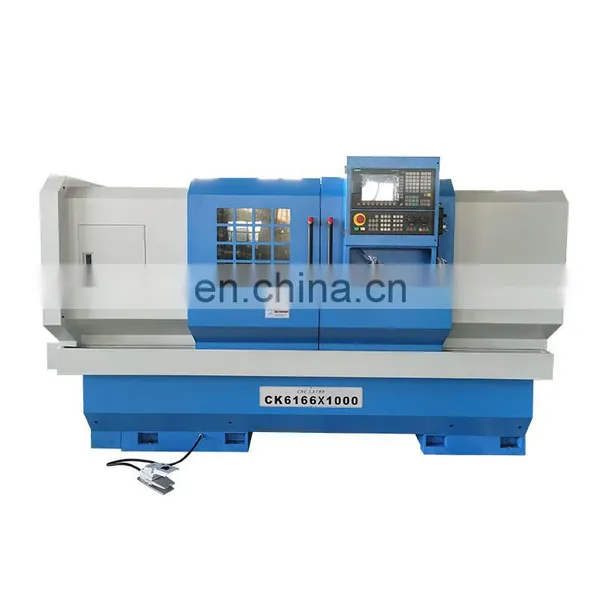

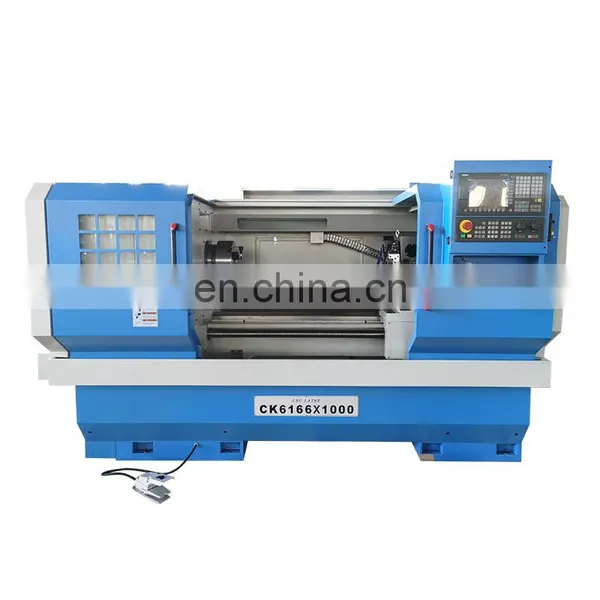

CK6166 Siemens 808DA Cnc Control System Horizontal Cnc Lathe From China Factory With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo TurretNegotiableMOQ: 1 -
China Professional Supplier Parallel Lathe SWL550/400 35-degree Slant Bed CNC Lathe Machine for SaleNegotiableMOQ: 1
-
Parallel Lathe CNC210 Siemens 808DA Control System Cnc Controller Lathe With High PrecisionNegotiableMOQ: 1
-
CK6432 CNC Lathe Machine for Precision Threads CuttingNegotiableMOQ: 1
-
AWR26 High Precision Wheel Cnc Lathe Machine With CENegotiableMOQ: 1
Product Description
Machine features of cnc lathe:
1.A high strength,widening the carriage,suitable for heavy cutting.
2.Four position eletric turret
3.Frequency conversion stepless speed regulation
4.Standard configuration : manual chuck
5.Optional configuration : hydraulic chuck
2.Four position eletric turret
3.Frequency conversion stepless speed regulation
4.Standard configuration : manual chuck
5.Optional configuration : hydraulic chuck
Specification |
CK6166X1500/2000/3000mm |
Max.swing over bed |
Ф660mm |
Max.swing over carriage |
Ф380mm |
Max. cutting length |
1500/2000/3000mm |
Rail width |
460mm |
Spindle nose |
A2-8 or A2-11 |
Spindle bore |
Ф86mm or Ф105mm |
Taper of spindle bore |
Ф90mm 1:20 or Ф110mm 1:20 |
Chuck size |
15" |
Range of spindle speed |
100-1600 or 3 steps:30-150，,10-500,150-1200rpm |
X-axis travel |
380mm |
Z-axis travel |
1500/2000/3000mm |
X/Z rapid speed |
5/8m/min |
X/Z screw |
3206/5010 |
Electronic turret |
4 or 6 or 8 |
Max.section of tool |
25x25mm |
Stroke of tailstock sleeve |
235mm |
Diameter/Hole of tailstock sleeve |
Ф90mm/MT5 |
Main motor power |
11kw |
Coolant pump power |
250w |
Overall dimensions L x W x H |
3320/3830/4830x1600x1830mm |
Packing size L x W x H |
3520/4030/5030x1760x2030mm |
Net weight |
3900/4400/5200kg |
Gross weight |
4300/4900/5800kg |
