CK1120 Multi-function Swiss Type CNC Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK32L High Precision Slant Bed Cnc Lathe for Metal Processing in ChinaNegotiableMOQ: 1 -
High Precision CK1113 Swiss Type Cnc Lathe With Competitive PriceNegotiableMOQ: 1
-
CK1113-C Economical Swiss Type Cnc Lathe With CENegotiableMOQ: 1
-
CK6132X1000 Flat Bed Cnc Lathe Machine for Metal WorkingNegotiableMOQ: 1
-
Siemens 808DA Cnc Flat Bed Lathe CK6132x500 With High PrecisionNegotiableMOQ: 1
Product Description
CNC lathe CK1120 main features:
High rigidity casting bed;
High precision spindle bearing;
Bed guideways industively hardened.
Reted Voltage |
380V /3 phase AC Current |
Gang Tool |
12 Nos. |
Reted Frequency |
50HZ |
Turning Tool |
9 Nos. |
Total Input Power |
4.75kw |
Tool Size |
12*12mm |
Model (special customerized) |
YZ150 |
Obverse Side Drilling |
3 Nos. |
Min Setting Value |
0.001mm |
Drilling Spindle Size |
ER11/20mm |
X Axis PulseEquivalent |
0.0005mm |
Cuting MotorPower |
0.09kw |
Y Axis Pulse Equivalent |
0.001mm |
Capacity of CoolingContairer |
150L |
Z Axis Pulse Equivalent |
0.001mm |
Motor Power |
25w |
Max Programming size |
±9999.999 |
Capacity |
1.5L |
Cutting Speed |
1--4000mm/min |
Input Pressure of Compressed Air |
0.4--0.6Mpa |
X Axis Fast Feed Rate |
18000mm/min |
X Axis Stroke |
80mm（dia.） |
Y Axis Fast Feed Rate |
18000mm/min |
Y Axis Stroke |
150mm |
Z Axis Fast Feed Rate |
18000mm/min |
Z Axis Stroke |
250mm |
Max. Bar Dia. |
Φ20mm |
X Axis Servo Motor Power |
0.75kw |
Spindle Hole Dia. |
Φ21mm |
Y Axis Servo Motor Power |
0.75kw |
The height of spindle center from ground |
980mm |
Z Axis Servo Motor Power |
0.75kw |
spindle speed |
0-4000r/min |
Slide guide mode |
linear guide |
Spindle power |
2kw |
L*W*H(mm) |
1495*1010*1860mm 1220kgs
|

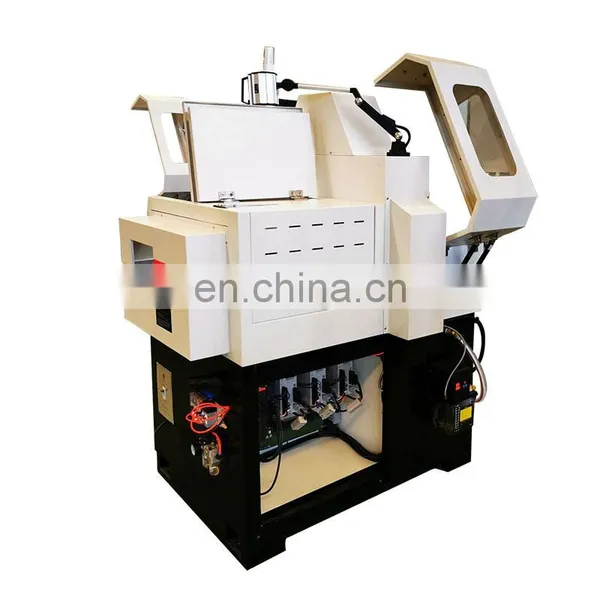

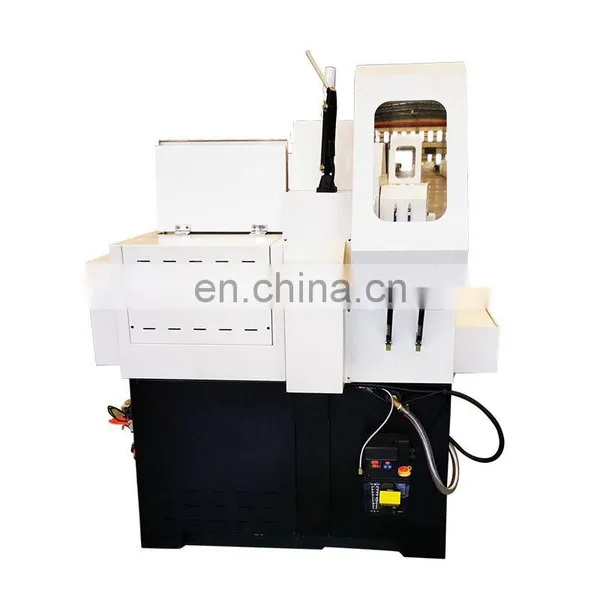

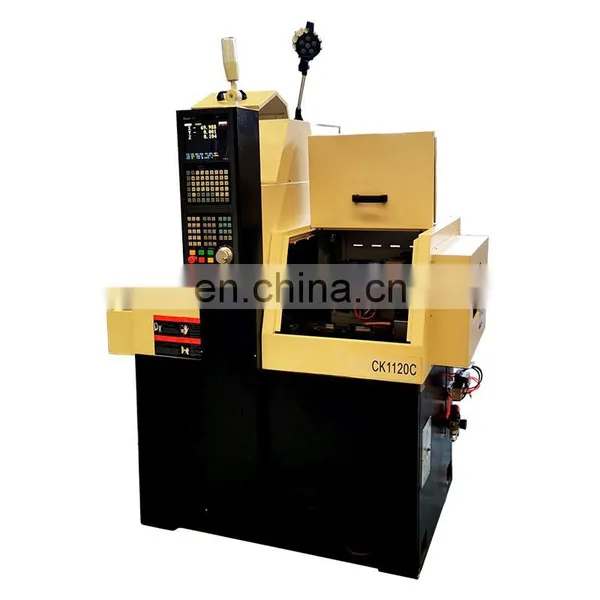

Detailed Images
Machine Accessories
Item
System
Spindle power
X axis motor
Y axis motor
Z axis motor
Y axis motor
Z axis motor
Z axis ballscrew
X axis guideway
Y axis guideway
Z axis guideway
Model
YZ180
2KW servo motor
750w absolute motor
750w absolute motor
750w absolute motor
240*2006
330*2006
523*2006
HGH20
HGH20
HGW25
Brand
R & D
Delta
Yaskawa
Yaskawa
Yaskawa
THK
THK
THK
Hiwin, PMI or THK Hiwin
PMI or THK Hiwin
PMI or THK
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
