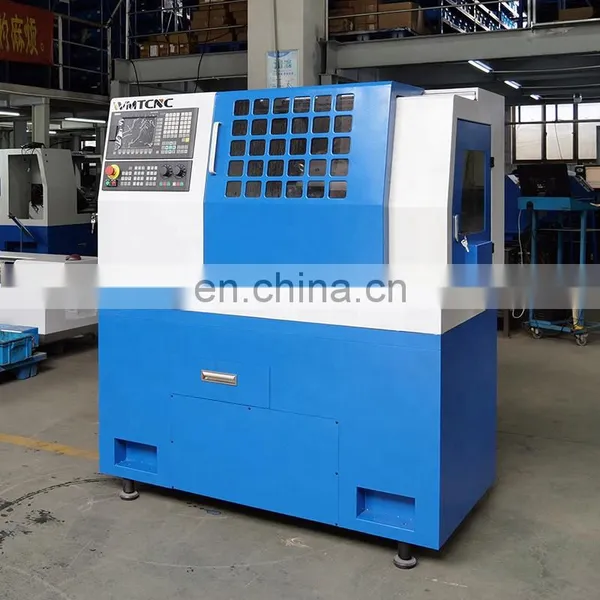

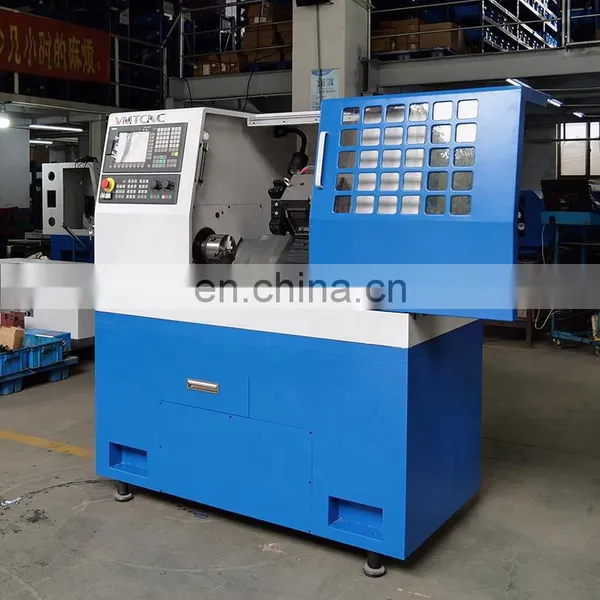

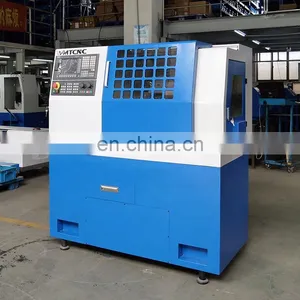

CK30L Mini Slant CNC Lathe Machine Price for Hobby and Education
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6125SX450 Horizontal CNC Lathe Machine For School Education and Hobby UsersNegotiableMOQ: 1 -
CK6166 Siemens 808DA Cnc Control System Horizontal Cnc Lathe From China Factory With High PrecisionNegotiableMOQ: 1
-
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo TurretNegotiableMOQ: 1
-
China Professional Supplier Parallel Lathe SWL550/400 35-degree Slant Bed CNC Lathe Machine for SaleNegotiableMOQ: 1
-
Parallel Lathe CNC210 Siemens 808DA Control System Cnc Controller Lathe With High PrecisionNegotiableMOQ: 1
Specification |
CK30L/400 |
Max. swing over bed |
300mm |
Max. swing over carriage |
100mm |
Distance between centers |
400mm |
Chuck size |
125mm |
Spindle speed |
100-3000r/min |
Spindle bore |
20mm |
Spindle taper |
MT3 |
Spindle power |
1500W |
X axis travel |
120mm |
Z axis travel |
320mm |
Max. rapid speed |
5000mm/min |
Max. feed speed |
1000mm/min |
Feed motor |
400w |
Position of toolpost |
8 |
Max. section of tool |
12×12mm |
Tool size |
φ12mm |
Tailstock taper |
MT2 |
Tailstock dia. |
30mm |
Tailstock travel |
50mm |
Positioning accuracy |
0.010mm |
Re-positioning accuracy |
0.005mm |
Voltage |
230/110V |
N.W/G.W |
620kg/700kg |
Machine size (LxWxH) |
1400×770×1600mm |
Packing size (LxWxH) |
1650×1090×1920mm |
