CK6432 CNC Lathe Machine for Precision Threads Cutting
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWR26 High Precision Wheel Cnc Lathe Machine With CENegotiableMOQ: 1 -
Lathe Machine Linear Guide Diamond Cut Alloy Wheel CNC Lathe Machine AWR28L on Truck for Mobile Service RepairNegotiableMOQ: 1
-
High Precision AWR28SL Slant Bed Diamond Cutting Automatic Alloy Wheel CNC Lathe MachineNegotiableMOQ: 1
-
CNC300 China High Precision Slant Bed CNC Turning Machine for MetalNegotiableMOQ: 1
-
CK1120 Multi-function Swiss Type CNC Lathe Machine With CENegotiableMOQ: 1

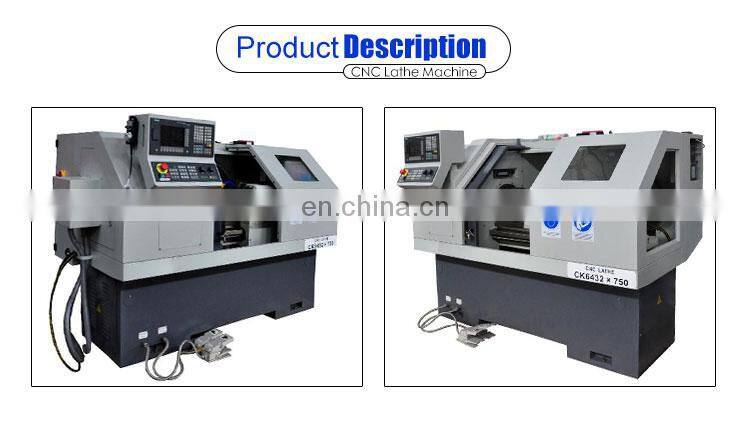

Product Description

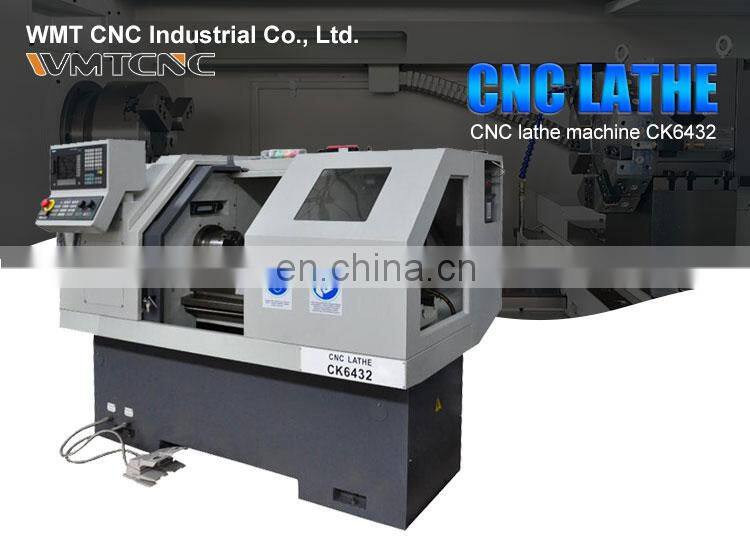

LATHE MACHINE CK6432
Specification |
CK6432×500/750mm |
Max.swing over bed |
Φ360 mm |
Max.swing over carriage |
Φ150 mm |
Distance between centers |
500/750mm |
Spindle bore |
60mm |
Spindle nose |
A2-6 |
Rail width |
260mm |
Taper of spindle bore |
MT6 |
Chuck |
8" |
Range of speed (Variable) |
150-2500 rpm |
X axis travel |
350mm |
Z axis travel |
500/750mm |
X/Z rapid speed |
4/7m/min |
X/Z screw |
2004/4006 |
Station of toolpost |
4 or 6 or 8 |
Max. section of tool |
20x20mm |
Stroke of tailstock sleeve |
100mm |
Dia./hole of tailstock sleeve |
50mm/MT4 |
Main motor power |
3.7kw |
Coolant pump power |
120w |
Overall dimenstion (L*W*H) |
1740/2000x1210x1650mm |
Packing size (L*W*H) |
1960/2230x1410x1990mm |
NW/GW |
1275/1450kg;1450/1600kgs |

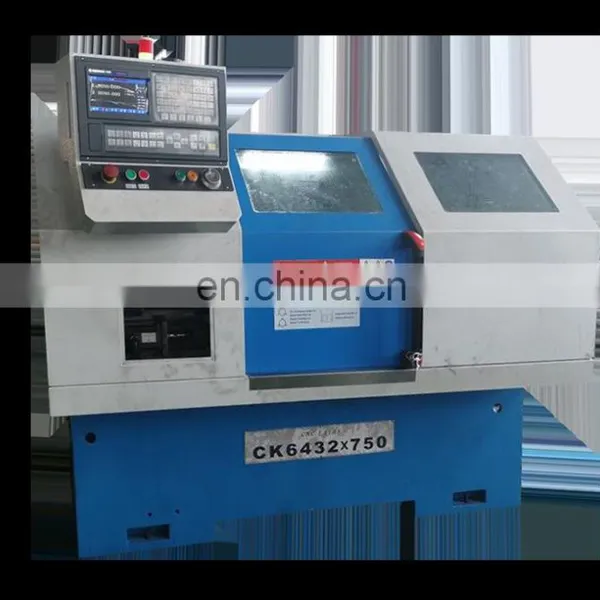

Machine Show:
Products Show
