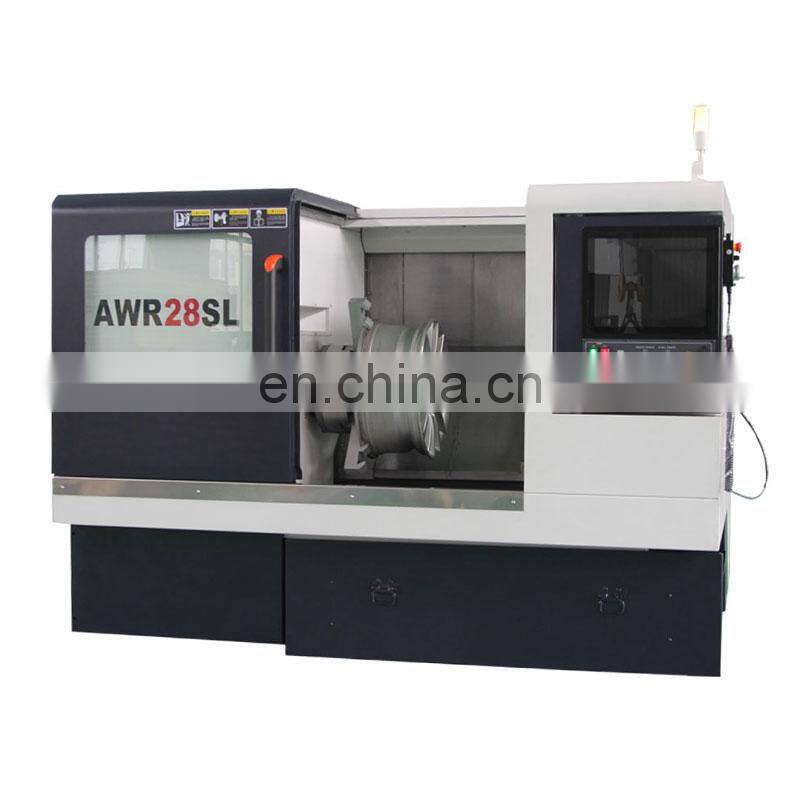

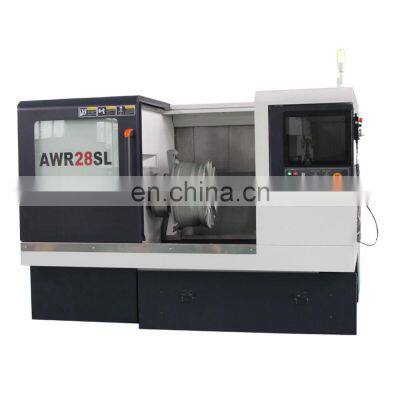

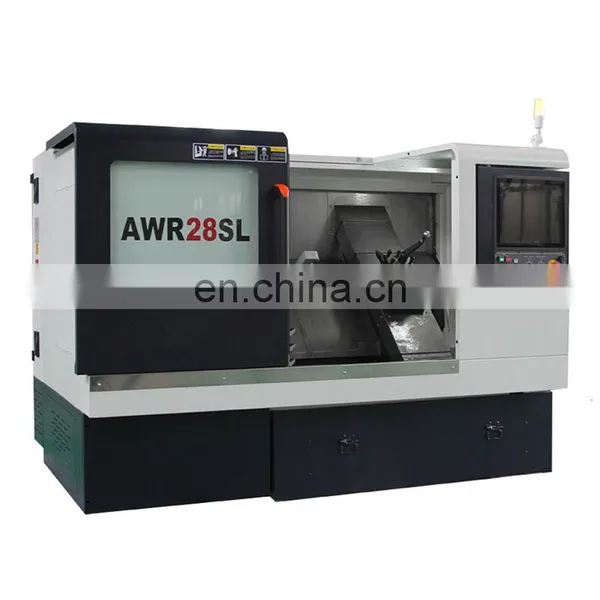

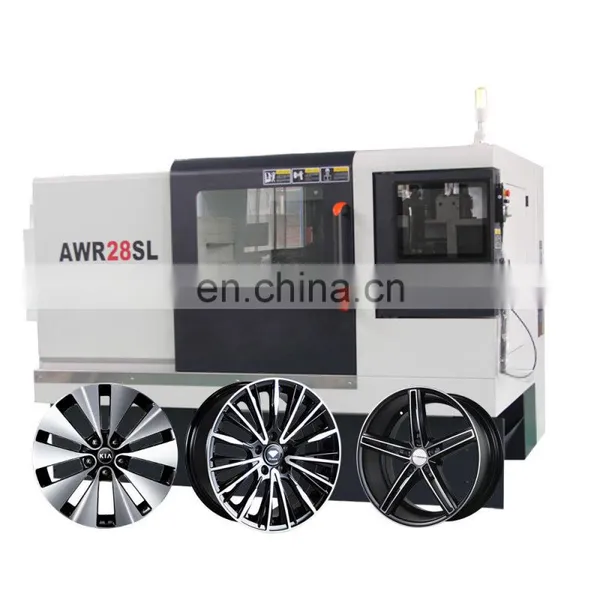

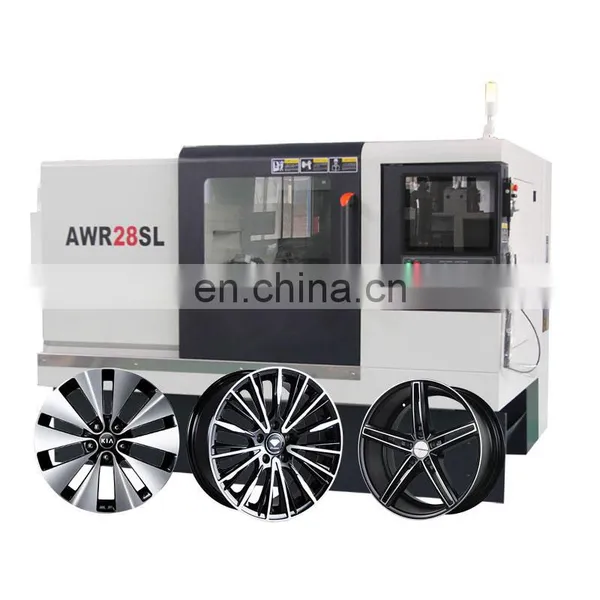

High Precision AWR28SL Slant Bed Diamond Cutting Automatic Alloy Wheel CNC Lathe Machine

Name: High Precision AWR28SL Slant Bed Diamond Cutting Automatic Alloy Wheel CNC Lathe Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Main features:

Wheel cutting from 11’’ to 28’’. User-friendly fully automatic software. 17’’ Touchscreen controller .Slant bed structure to remove chip easily .Liner guide with high precision and long life. Different Language & Voltage as requirement

Specifications	AWR28SL
model	AWR28SL
X axis travel	520 mm
Z axis travel	530mm
Jaw chuck	16’’ with 3 step soft jaw
Alloy wheel gripping O.D. Range	11’’~28’’
Spindle motor	5.5 kw
Spindle speed	40~1200 r/min
X axis rapid traverse	10m/min
Z axis rapid traverse	12m/min
Cutting feed rate range	0.05~200mm/min
Position accuracy	X--0.01mm; Z--0.01mm
Re-position accuracy	X--0.007mm; Z--0.008mm
Machine Size (LxWxH )	2220 x 1556 x 1523mm
Packing size: (LxWxH )	2440x 1400 x 1900 mm
N.W. / G.W.	2400kg / 2500kg
