desktop cnc lathe CNC180 Mini cnc lathe machine for education and hobby use

Name: desktop cnc lathe CNC180 Mini cnc lathe machine for education and hobby use
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Specification	CNC180	CNC210
Max swing over bed	180mm	210mm
Max.length of workpieces	300/350mm	400mm
Spindle bore	20mm	26mm
Spindle taper	MT3	MT4
Spindle speed	50-2250rpm	100-3000rpm
Metric thread cutting	0.5-2.5mm	0.25-4mm
Inch thread cutting	12-52TPI	6-80TPI
Electric toolpost	4-position	4-position
X Travel	60mm	90mm
Z travel	250mm	300mm
X Moving speed	800mm/min	2000mm/min
Z Moving speed	1200mm/min	2000mm/min
Spindle motor power	400w (optional:550w)	1.2kw
X Motor power	1.5NM	3NM
Z Motor power	2NM	3NM
Mini setting unit	0.001mm	0.001mm
Tailstock diameter	20mm	22mm
Tailstock Travel	50mm	50mm
Tailstock taper	MT2	MT2
Overall size	900X400X1250mm	13008001500mm
Net weight	150kgs	200kgs

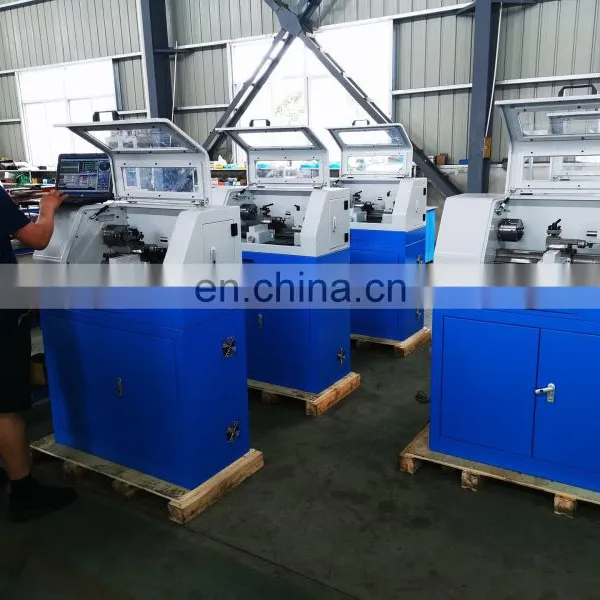

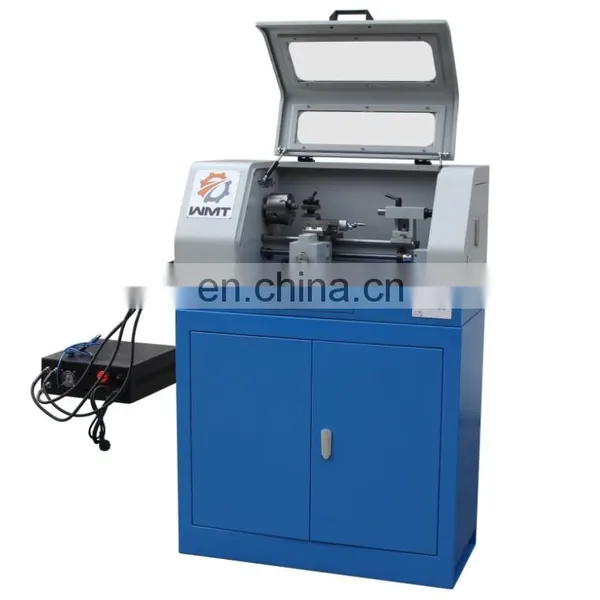

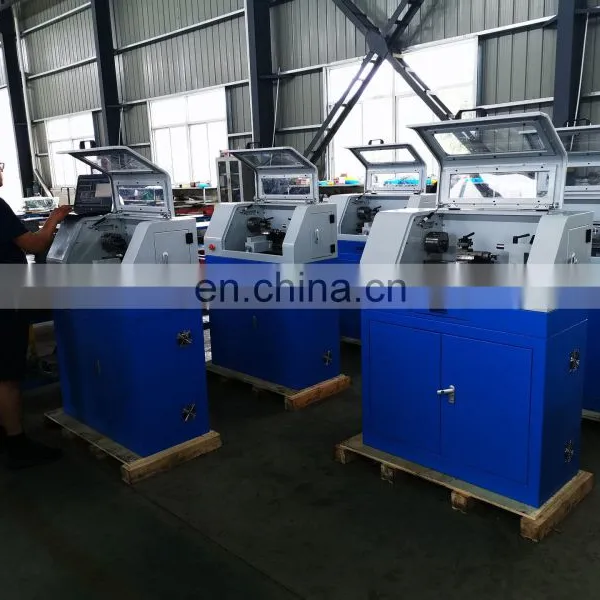

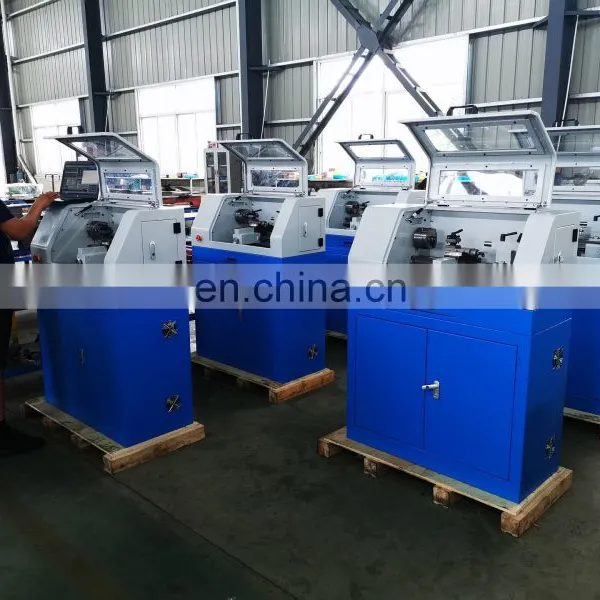

Detailed Images

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
