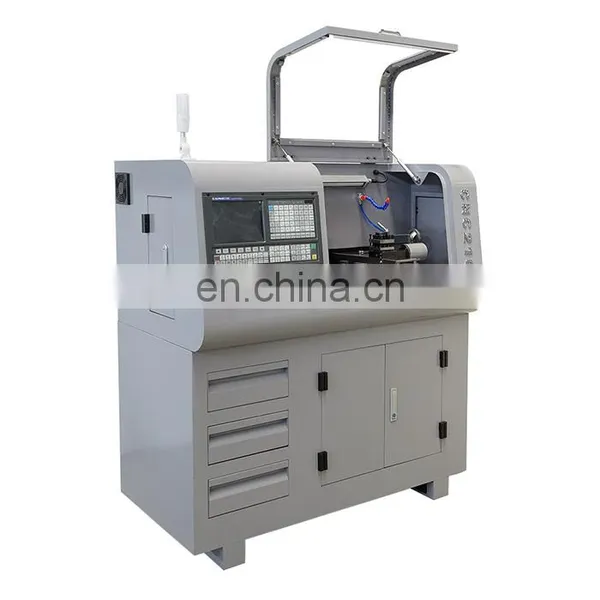

Parallel Lathe CNC210 Siemens 808DA Control System Cnc Controller Lathe With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6432 CNC Lathe Machine for Precision Threads CuttingNegotiableMOQ: 1 -
AWR26 High Precision Wheel Cnc Lathe Machine With CENegotiableMOQ: 1
-
Lathe Machine Linear Guide Diamond Cut Alloy Wheel CNC Lathe Machine AWR28L on Truck for Mobile Service RepairNegotiableMOQ: 1
-
High Precision AWR28SL Slant Bed Diamond Cutting Automatic Alloy Wheel CNC Lathe MachineNegotiableMOQ: 1
-
CNC300 China High Precision Slant Bed CNC Turning Machine for MetalNegotiableMOQ: 1
Product Description
CNC120 CNC Lathe Main Features:
1. The machine can process precisely internal or external diameter, face, taper and threading with high efficiency.
2. X/Z feeding motor and main motor: servo motor.
3. Small occuping, lower energy consumption, easy operation, suitable for small processing.
4. High-quality spindle by high-precision grinding and support by Angular contact bearing.
5. Induction harden bed-way, bed saddle with plastic sticker can improve the accuracy and service life of machine.
6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.
2. X/Z feeding motor and main motor: servo motor.
3. Small occuping, lower energy consumption, easy operation, suitable for small processing.
4. High-quality spindle by high-precision grinding and support by Angular contact bearing.
5. Induction harden bed-way, bed saddle with plastic sticker can improve the accuracy and service life of machine.
6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.
Specification |
CNC210 |
Max.swing over bed |
210mm |
Max.swing over carriage |
100mm |
Distance between centers |
400mm |
Sindle bore |
26mm |
Sindle taper |
MT4 |
Spindle speed |
3000rpm |
X travel |
90mm |
Z travel |
300mm |
Tool post |
4-position |
rapid speed |
3m/min |
Feeding motor power |
3.0 N.M |
Feeding motor type |
servo motor |
Spindle motor power |
1.2KW |
Spindle motor type |
incremental Servo motor |
Min.setting unit |
0.001mm |
Tailstock dia. |
22mm |
Tailstock travel |
50mm |
Tailstock taper |
MT2 |
Overall size |
1170*700*1760mm |
Net weight |
350KG |
Detailed Images
Machine Accessories
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
