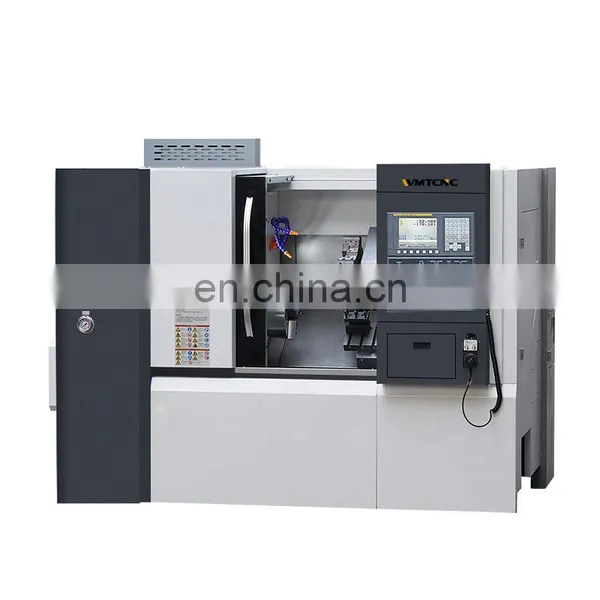

SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret

SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret thumbnail-1
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret thumbnail-2
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret thumbnail-3
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret thumbnail-4
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret photo-1

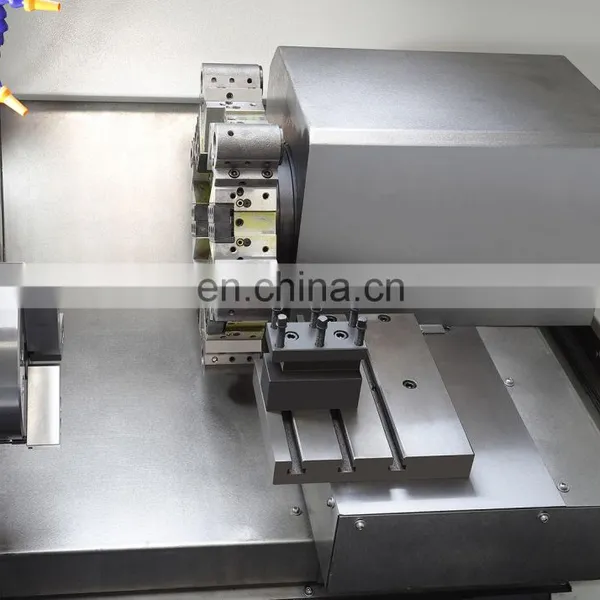

SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret photo-2

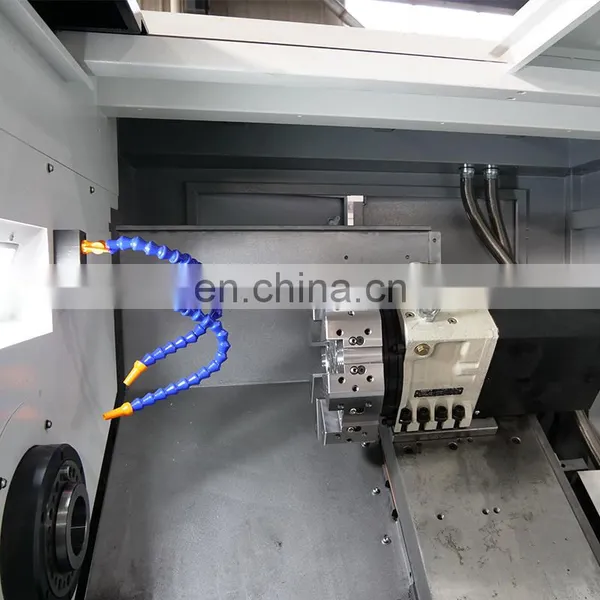

SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret photo-3

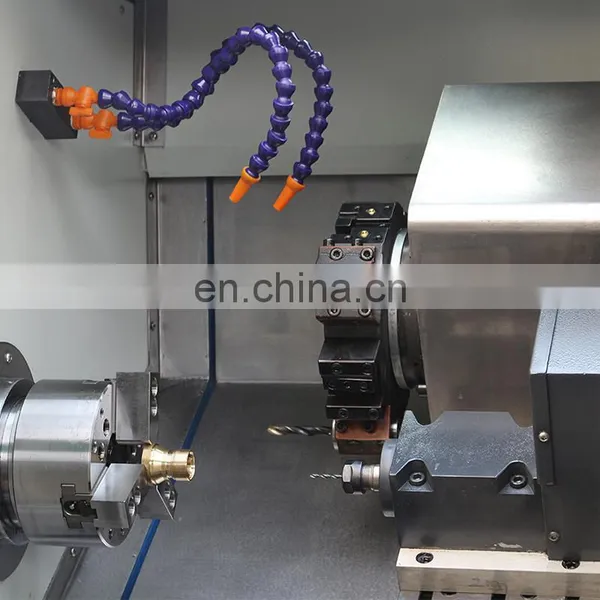

SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo Turret photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Some of these benefits include:
1. Smoother slide surface operation;
2. Higher speed and accuracy;
3. Fewer machine adjustments and lower maintenance costs;
4. Shortened machine warm-up time;
5. Lower power consumption.

Main Features:
1. SHL lathes have a heavy-duty cast base with “true align” slant bed design. 2. The machine bed, headstock and turret are aligned on the same plane. 3. This design reduces heat built-up and resulting thermal expansion. 4. Additional resulting efficiencies from the “true align” design are greater rigidity and smoother operation which provides a variety of benefits. 5. You can expect to produce highly accurate parts with extremely fine surface finishes. 6. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.
7. PLUS, properly aligned and balanced components. 8. The SHL400 CNC slant bed lathe features a mono-block bed/ spindle design for increased rigidity, vibration damping and small footprint.
9. Ture slant bed extremely minimizes the impact of thermal expansion to precision. 35 degree slant bed is more convenient for scrap iron; Better dynamics and higher precisions; It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable; Increasing the versatility and automation of the lathe; Better water-resistant and scrap-iron-resistant.

Specification
Unit
SHL400/250 (/350)
Capacity
Chuck size
inch
6", *8", *10"
Max. swing dia. over bed
mm
Ø400
Max. length of workpiece
mm
250,*350
Max. swing dia. over slide
mm
Ø210
Spindle
Spindle bore
mm
Ø55
*Ø62
*Ø81
Max. dia. of through-hole
mm
Ø46
*Ø52
Ø70
Spindle nose
type
A2-5
*A2-6
*A2-8
Spindle speed
rpm
4500
2000
*1600
*5000
*4000
*2500
Main motor power
kW
5.5/7.5
Axis
X axis travel
mm
250
Z axis travel
mm
250,*350
X/Z rapid traverse
m/min
20/25
Turret
No. of tool stations
nos
8,*12
Tool shank size
mm
20X20,*25X25
Structure
Slant bed degree
35
Guideway type
LM
Others
Power capacity
kVA
13
Overall dimension (LxWxH)
mm
2520X2050X1960
Weight (about)
kg
2500
Details Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?
A4: One set only.

Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
