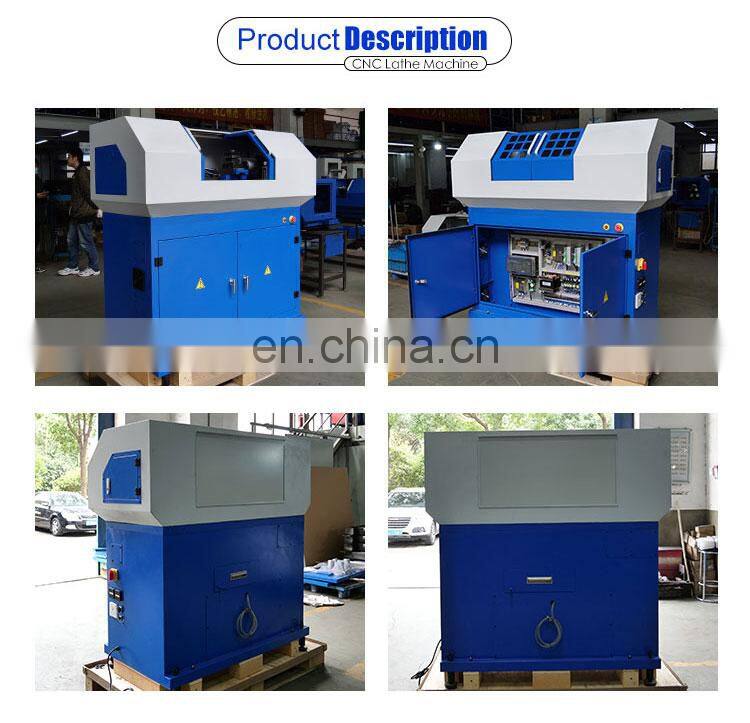

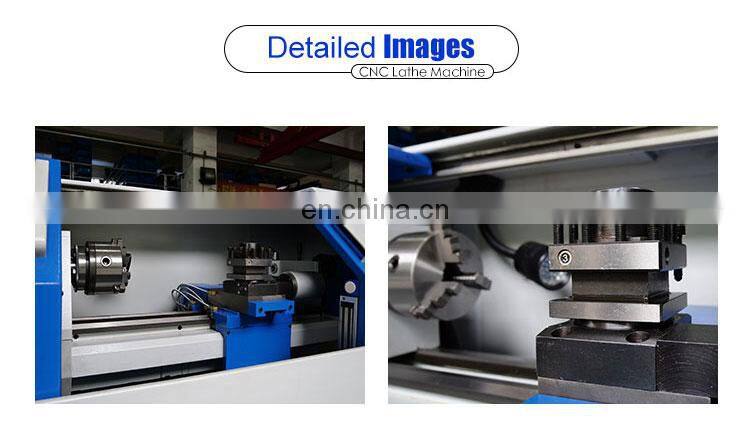

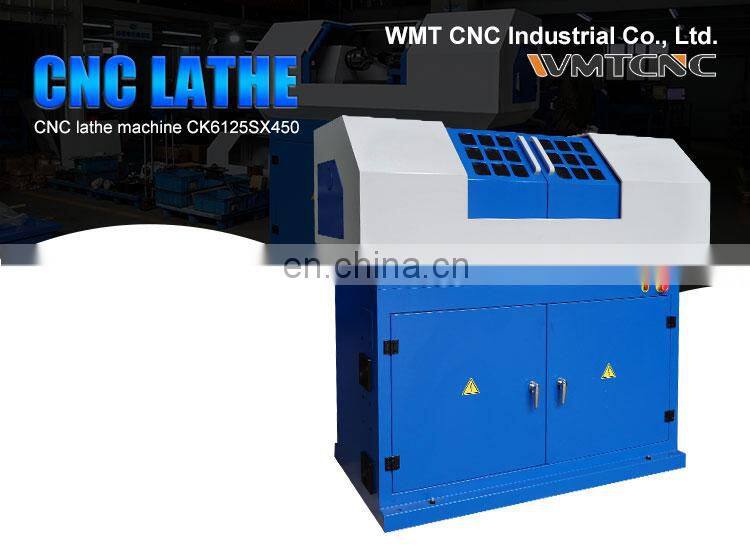

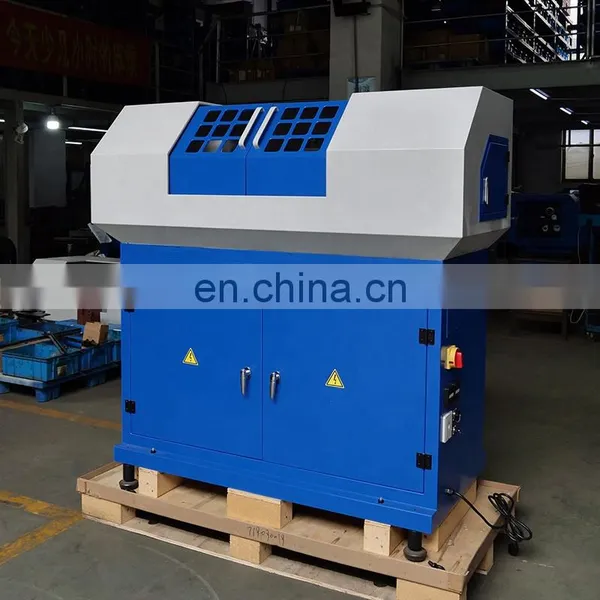

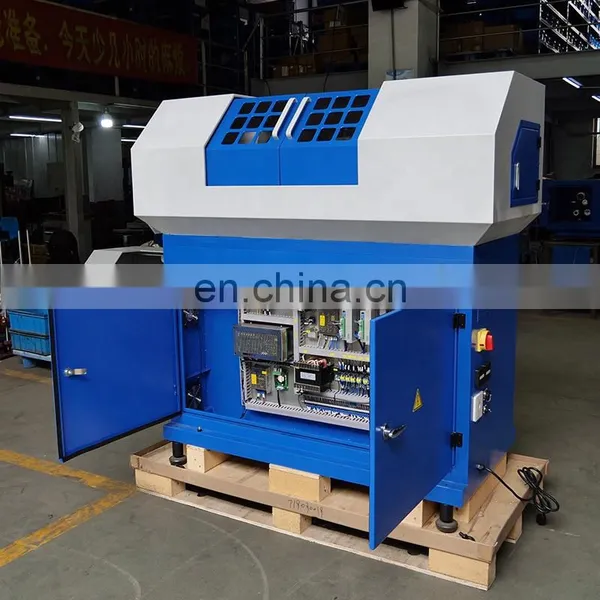

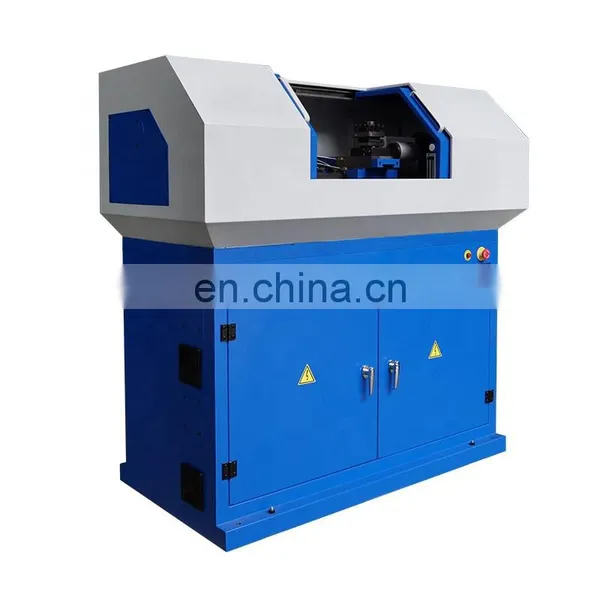

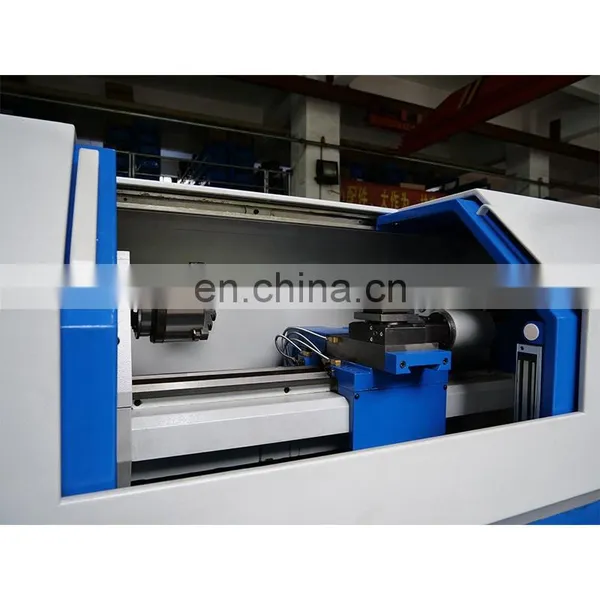

CK6125SX450 Horizontal CNC Lathe Machine For School Education and Hobby Users
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China

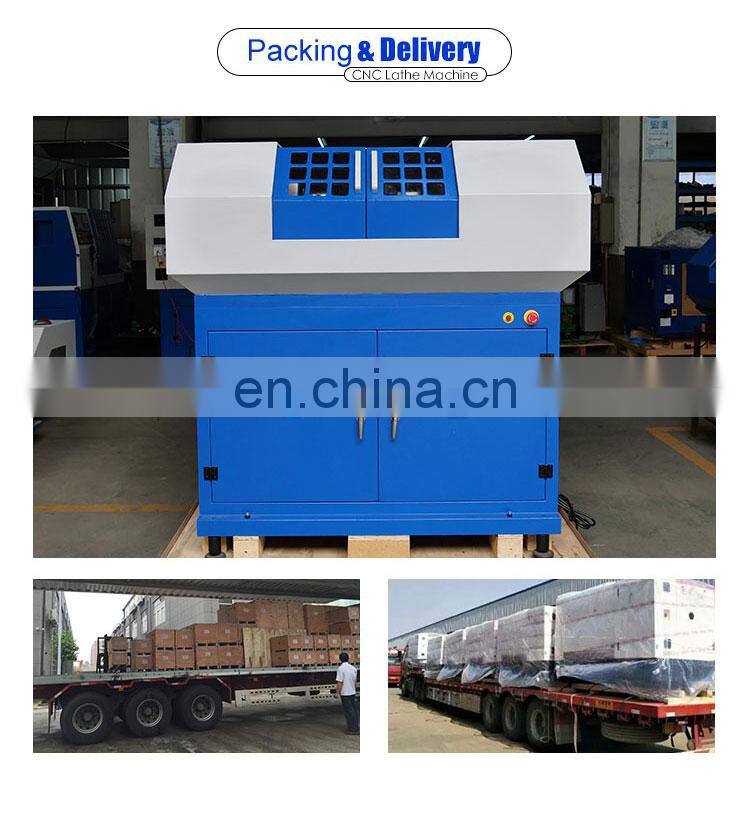

Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6166 Siemens 808DA Cnc Control System Horizontal Cnc Lathe From China Factory With High PrecisionNegotiableMOQ: 1 -
SHL400/250 Horizontal Cnc Torno Machines Slant Bed Lathe 8-station Servo TurretNegotiableMOQ: 1
-
China Professional Supplier Parallel Lathe SWL550/400 35-degree Slant Bed CNC Lathe Machine for SaleNegotiableMOQ: 1
-
Parallel Lathe CNC210 Siemens 808DA Control System Cnc Controller Lathe With High PrecisionNegotiableMOQ: 1
-
CK6432 CNC Lathe Machine for Precision Threads CuttingNegotiableMOQ: 1
Specification | CK6125S/450 |
Max. swing over bed | 250mm |
Max. swing over carriage | 110mm |
Distance between centers | 450mm |
Chuck size | 125mm |
Spindle speed | 100-3000r/min |
Spindle bore | 20mm |
Spindle taper | MT3 |
Spindle power | 1000W |
X axis travel | 90mm |
Z axis travel | 320mm |
Max. rapid speed | 2000mm/min |
Max. feed speed | 500mm/min |
Feed motor | 4Nm |

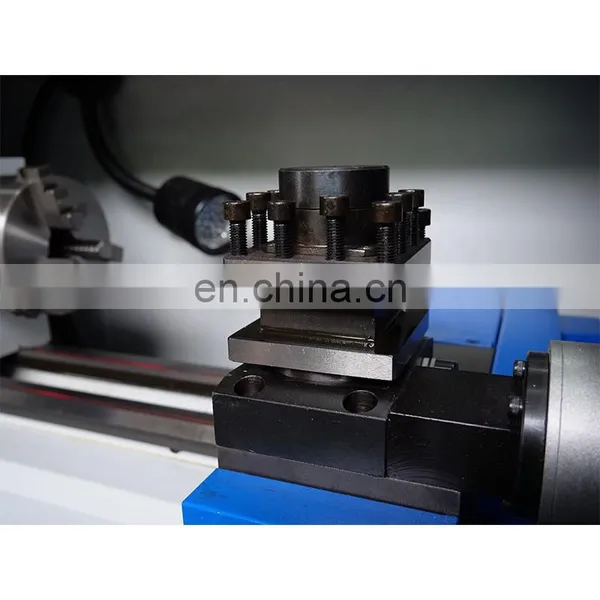

Position of toolpost | 4 |
Max. section of tool | 10×10mm |
Tailstock taper | MT2 |
Tailstock dia. | 30mm |
Tailstock travel | 50mm |
Positioning accuracy | 0.015mm |
Re-positioning accuracy | 0.01mm |
Voltage | 230/110V |
N.W/G.W | 360kg/410kg |
Machine size (LxWxH) | 1460×760×1450mm |
Packing size (LxWxH) | 1630×1070×1685mm |
