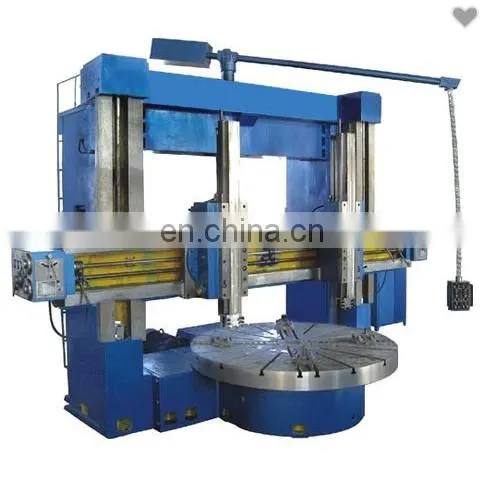

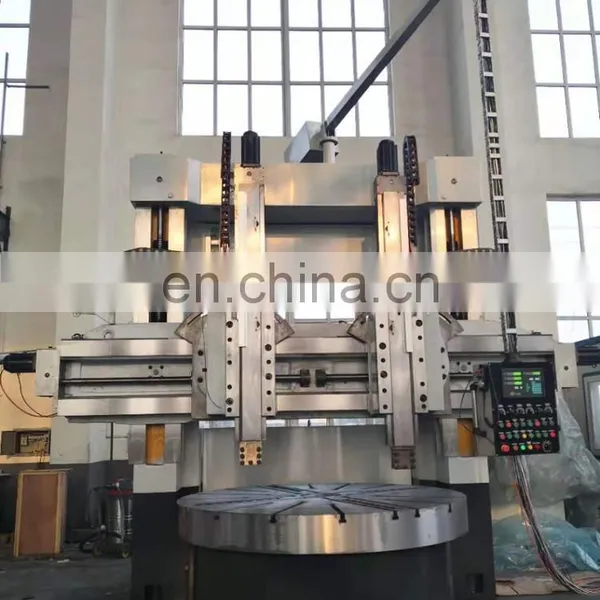

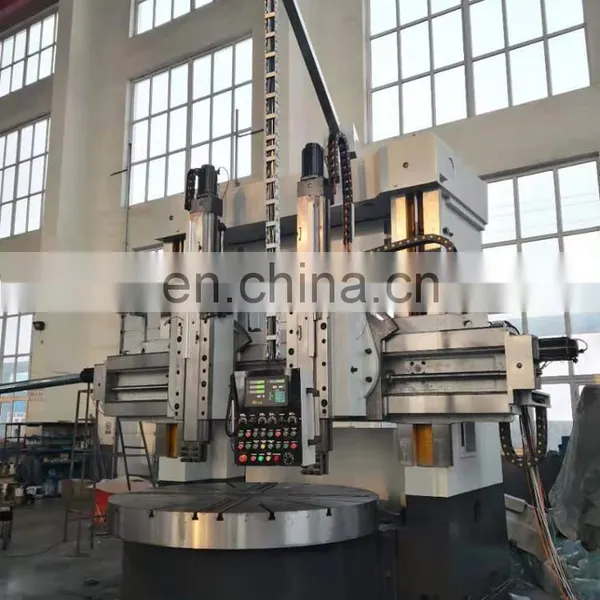

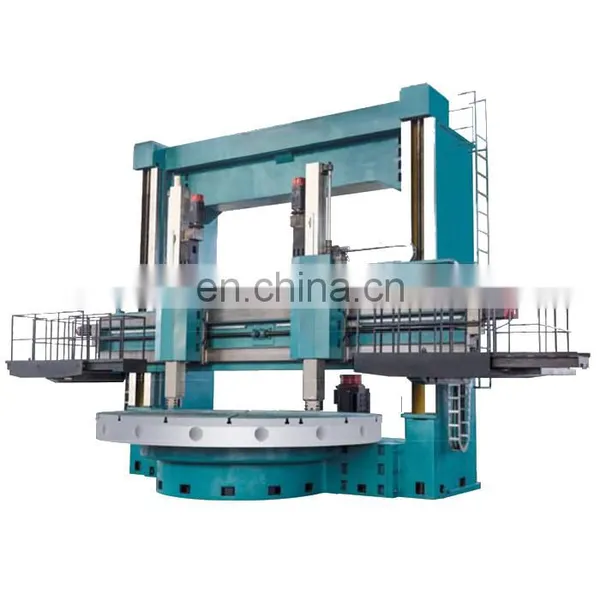

DVT5240C Double Column Heavy Metal Cutting Vertical Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6180 Heavy Duty Horizontal CNC Metal Lathe Machine for SaleNegotiableMOQ: 1 -
CK6150 82mm Spindle Bore Horizontal Cnc Lathe Machine With GSK980TDC SystemNegotiableMOQ: 1
-
C5112D Heavy Duty Vertical Manual Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
CDK6160X1000 Big Bore Dia.200mm CNC Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
CK6150 X1000 Length Torno CNC for Threads MakingNegotiableMOQ: 1
Product Description
Conventional vertical lathe machine with single column;
Rigid column and stable;
DRO optional;
Precise cutting for heavy metal parts.
Vertical lathe machine | DVT5240C/D |
Table dia. | 3200/3600mm |
Max. turning dia. | 4000mm |
Max. workpiece height | 2000/2500/3150mm |
Max. workpiece weight | 32/50t |
Table speed step | II stepless |
Table rotation speed range | 0.4-40r/min |
Max. torque of table | 80/100KN.m |
Horizontal travel of toolpost | 2150mm |
Vertical travel of toolpost | 1250/1600mm |
Crossam ram travel | 1650/2150/2800mm |
Main motor power | DC75kw |
N.W | 55/60/65t |
Overall size(LXWXH) | 7680x6500x5975/6475/7125mm |
Detailed Images
