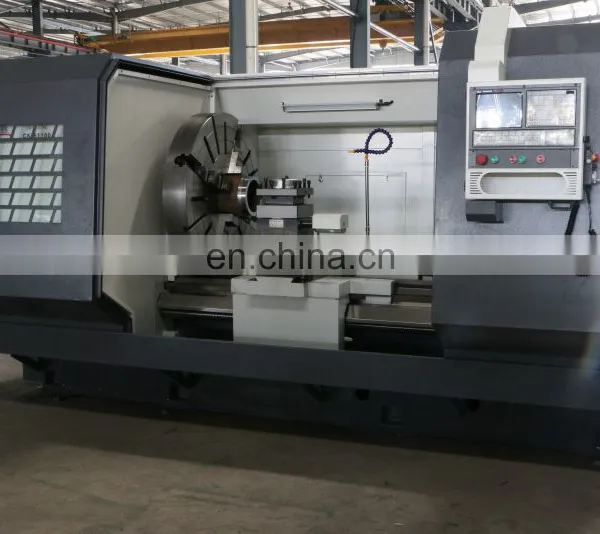

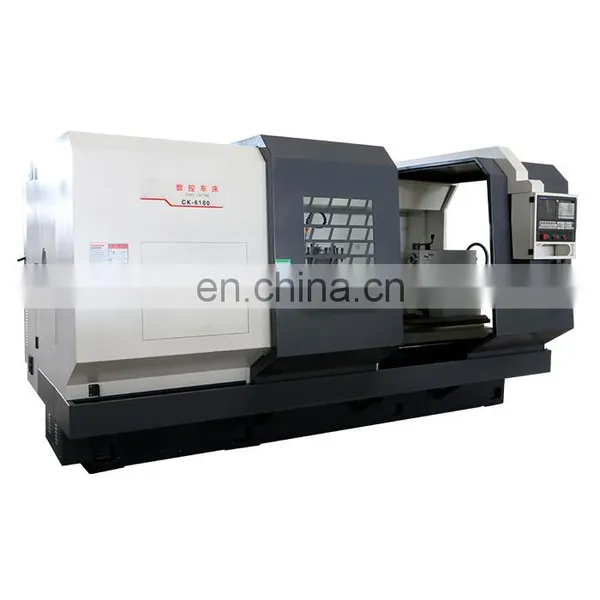

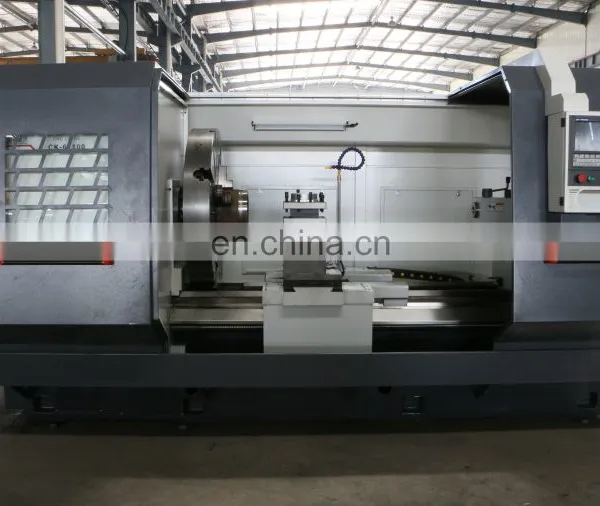

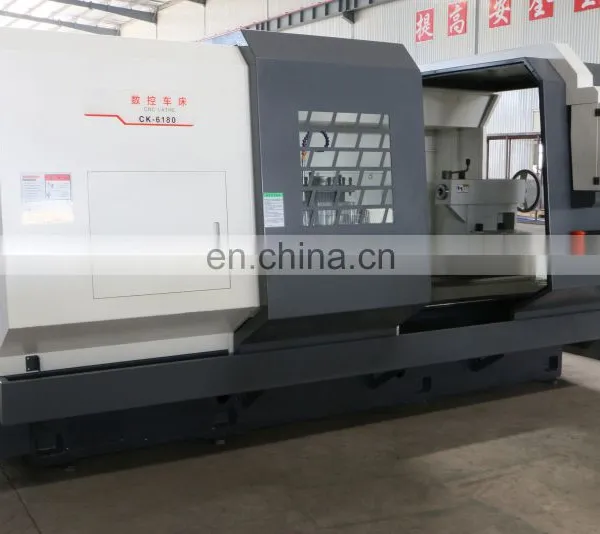

CK6180 Heavy Duty Horizontal CNC Metal Lathe Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6150 82mm Spindle Bore Horizontal Cnc Lathe Machine With GSK980TDC SystemNegotiableMOQ: 1 -
C5112D Heavy Duty Vertical Manual Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
CDK6160X1000 Big Bore Dia.200mm CNC Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
CK6150 X1000 Length Torno CNC for Threads MakingNegotiableMOQ: 1
-
Desktop Cnc Lathe CNC180 Mini Cnc Lathe Machine for Education and Hobby UseNegotiableMOQ: 1
Technology Data
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification | CK6180 | ||
Max dia.swing over bed(mm) | 800 | ||
Max dia.swing over cross slide(mm) | 480 | ||
Max.length of work-piece(mm) | 1500 | ||
Width of bed(mm) | 550 | ||
Spindle bore(mm) | 104 | ||
Power of spindle motor(kw) | 11 | ||
Range of spindle speed(r/min) | L 40-125, M 110-350, L 290-950 | ||
X/Z rapid traverse(r/min) | 4000/8000 | ||
Speed(r/min) | 1500 | ||
Torgue(N.m) | 15 | ||
Power(kw) | 2.3 | ||
Z-axis motor | Speed(r/min) | 1500 | |
Torgue(N.m) | 18 | ||
Power(kw) | 4.7 | ||
Tailstock quill | Diameter(mm) | 100 | |
Travel(mm) | 250 | ||
Taper | Morse NO.6 | ||
Electric tool-post | Model | HA21240 | |
No.of tool stations | Vertical four-station | ||
Dimension(mm) | 240×240 | ||
Turret indexing time(s) | 4.1 | ||
Chuck | K11-320 three jaw chuck | ||
Positioning accuracy(mm) | 0.020 | ||
Repositioning accuracy(mm) | 0.01 | ||
Overall dimensions(L*W*H)(mm) | 3700*1755*1800mm | ||
Machine weight(kgs) | 5500 | ||
Specification | CK6180 | ||
Max dia.swing over bed(mm) | 800 | ||
Max dia.swing over cross slide(mm) | 480 | ||
Max.length of work-piece(mm) | 1500 | ||
Width of bed(mm) | 550 | ||
Spindle bore(mm) | 104 | ||
Power of spindle motor(kw) | 11 | ||
Range of spindle speed(r/min) | L 40-125, M 110-350, L 290-950 | ||
X/Z rapid traverse(r/min) | 4000/8000 | ||
Speed(r/min) | 1500 | ||
Torgue(N.m) | 15 | ||
Power(kw) | 2.3 | ||
Z-axis motor | Speed(r/min) | 1500 | |
Torgue(N.m) | 18 | ||
Power(kw) | 4.7 | ||
Tailstock quill | Diameter(mm) | 100 | |
Travel(mm) | 250 | ||
Taper | Morse NO.6 | ||
Electric tool-post | Model | HA21240 | |
No.of tool stations | Vertical four-station | ||
Dimension(mm) | 240×240 | ||
Turret indexing time(s) | 4.1 | ||
Chuck | K11-320 three jaw chuck | ||
Positioning accuracy(mm) | 0.020 | ||
Repositioning accuracy(mm) | 0.01 | ||
Overall dimensions(L*W*H)(mm) | 3700*1755*1800mm | ||
Machine weight(kgs) | 5500 | ||
Specification | CK6180 | ||
Max dia.swing over bed(mm) | 800 | ||
Max dia.swing over cross slide(mm) | 480 | ||
Max.length of work-piece(mm) | 1500 | ||
Width of bed(mm) | 550 | ||
Spindle bore(mm) | 104 | ||
Power of spindle motor(kw) | 11 | ||
Range of spindle speed(r/min) | L 40-125, M 110-350, L 290-950 | ||
X/Z rapid traverse(r/min) | 4000/8000 | ||
Speed(r/min) | 1500 | ||
Torgue(N.m) | 15 | ||
Power(kw) | 2.3 | ||
Z-axis motor | Speed(r/min) | 1500 | |
Torgue(N.m) | 18 | ||
Power(kw) | 4.7 | ||
Tailstock quill | Diameter(mm) | 100 | |
Travel(mm) | 250 | ||
Taper | Morse NO.6 | ||
Electric tool-post | Model | HA21240 | |
No.of tool stations | Vertical four-station | ||
Dimension(mm) | 240×240 | ||
Turret indexing time(s) | 4.1 | ||
Chuck | K11-320 three jaw chuck | ||
Positioning accuracy(mm) | 0.020 | ||
Repositioning accuracy(mm) | 0.01 | ||
Overall dimensions(L*W*H)(mm) | 3700*1755*1800mm | ||
Machine weight(kgs) | 5500 | ||
Standard Accessories:
1. Cooling system 2. Work lamp
3. Auto-lubricating system
4. X/Z feeding servo motor
5. 4-Position electrical tool post
6. Unitary iron casting machine stand
7. Manual 3-jaw chuck 2 pcs
Optional Accessories:
1. GSK980TDC, GSK218M controller
2. Siemens 808D controller
3. Siemens 808D Advance controller
4. Siemens 828D controller
5. Fanuc Oi TF controller
6. 6/8-Position electrical tool post

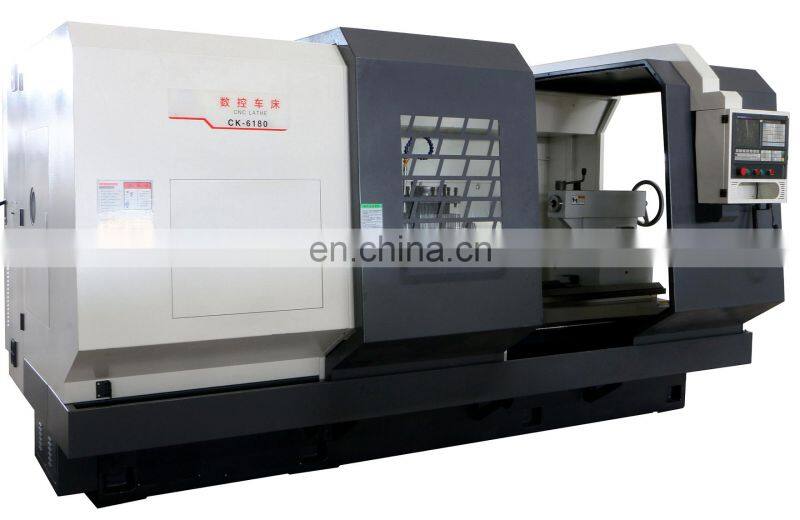

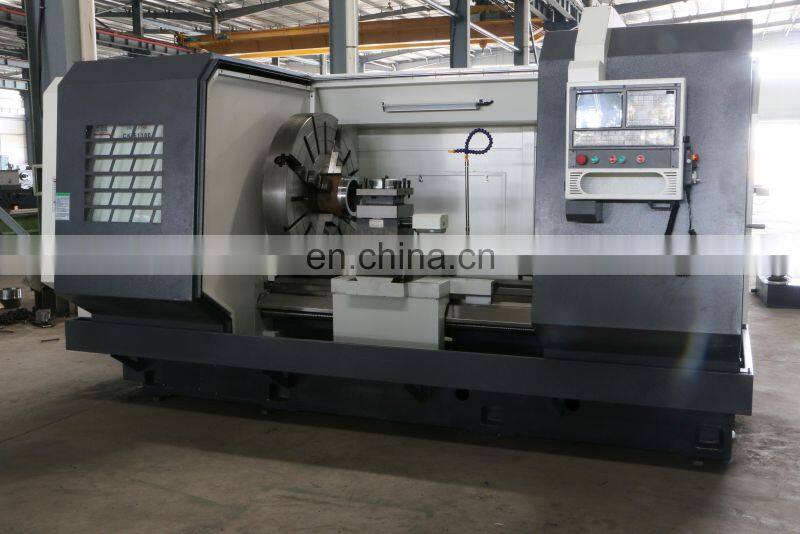

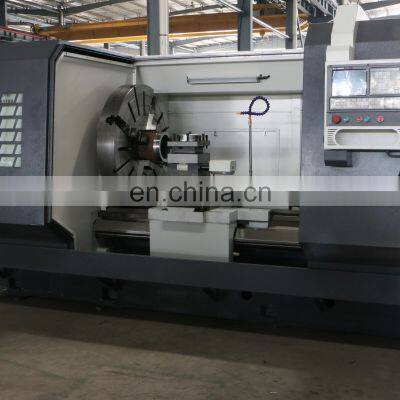

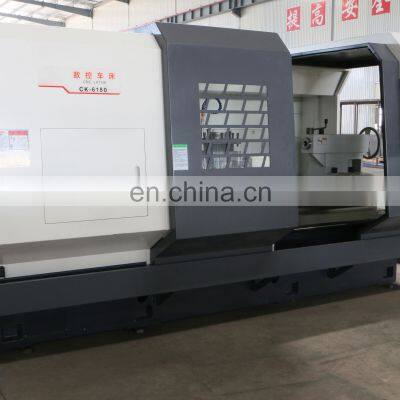

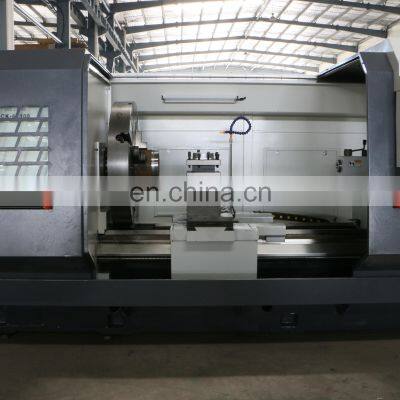

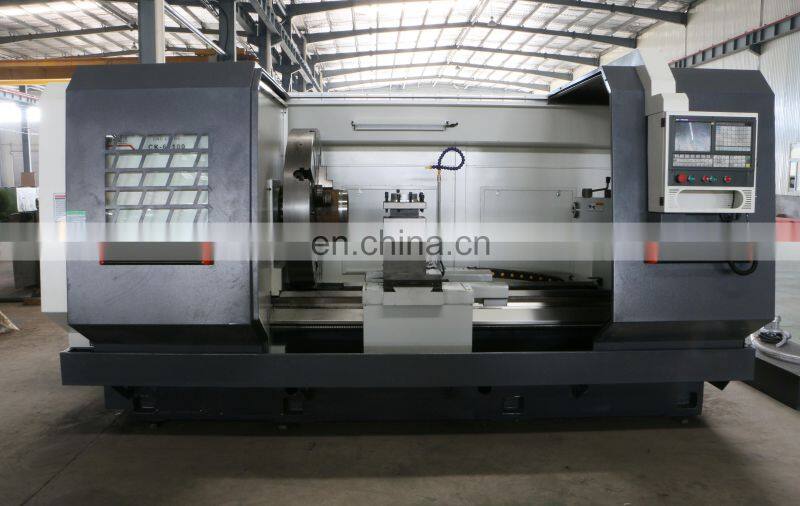

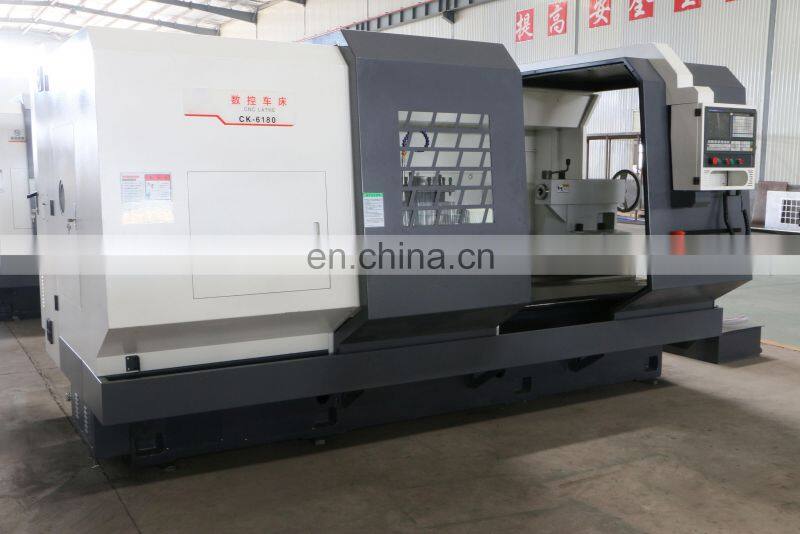

Machine pics
GSK980TDC controller
Siemens 808D controller
Fanuc Oi TF controller
