Home > Products > CNC LATHE > CK5116 single column CNC vertical lathe machine for heavy cutting

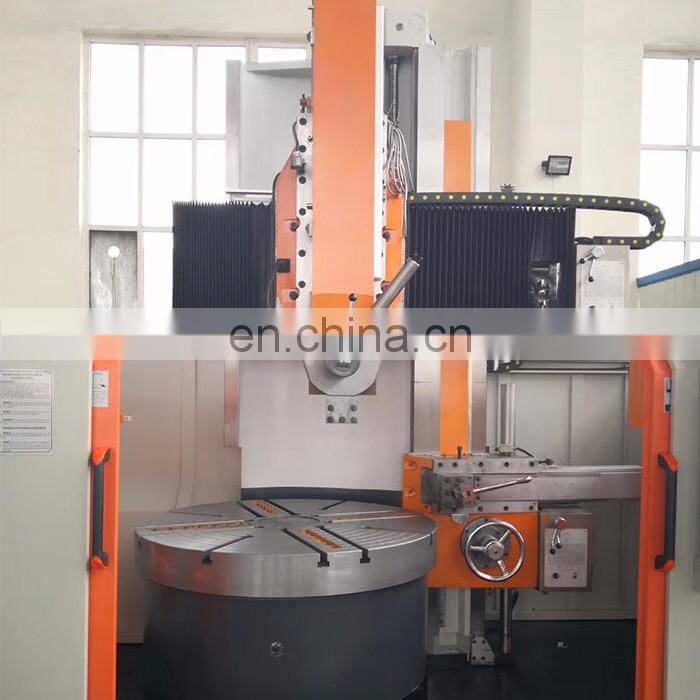

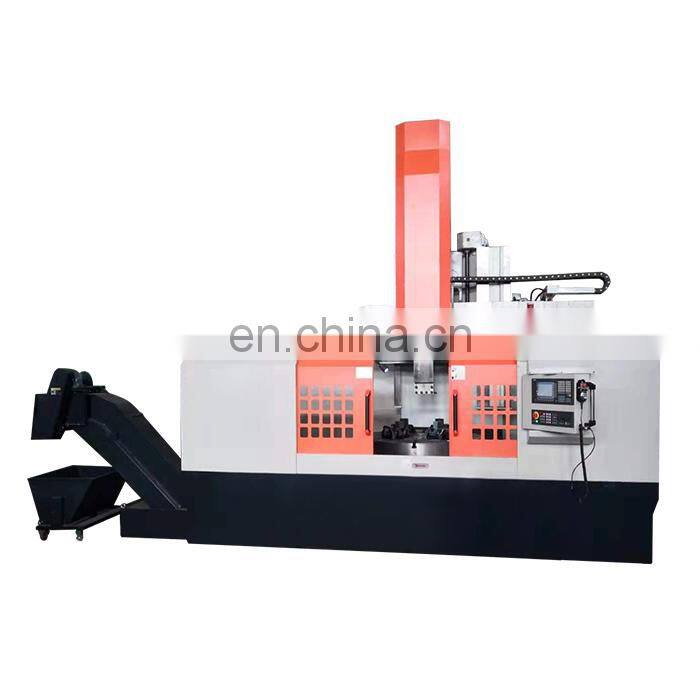

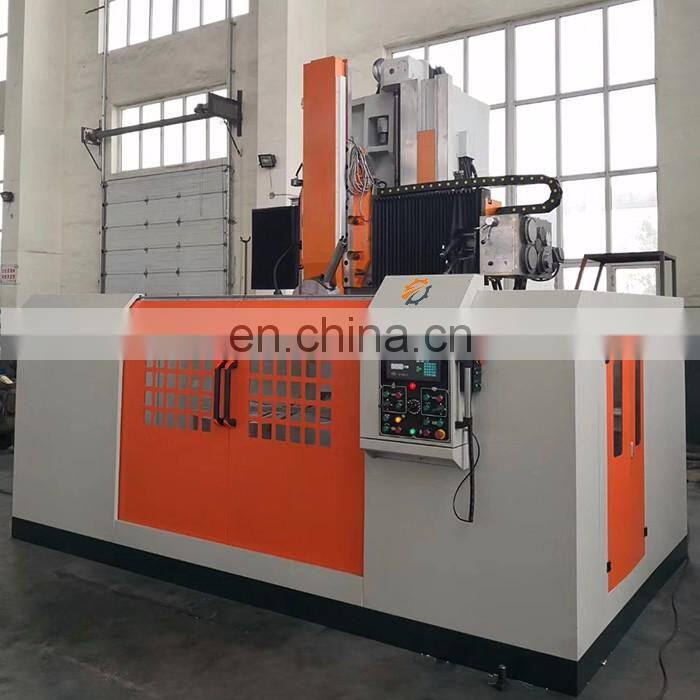

CK5116 single column CNC vertical lathe machine for heavy cutting

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

CNC lathe

Vertical CNC lathe machine with single column;

Rigid column and stable;

DRO optional;

Precise cutting for heavy metal parts.

Specification	CK5116E(SVT160F)
Table dia.	1400mm
Max. turning dia.	1600mm
Max. workpiece height	1000/1200/1400/1600mm
Max. workpiece weight	5(8)t
Table speed step	16
Table rotation speed range	5-160(6.3-200)r/min
Horizontal travel of toolpost (X-axis)	915mm
Vertical travel of toolpost (Z-axis)	800/1000mm
Crossam ram travel	850mm
Tool bar section size(Lx W)	30x40mm
Main motor power	30kw
N.W	12.6/13.3/14/14.6t
Overall size(LXWXH)	2662x2800x3350/3550/3750/3950mm
Tool bar section size(Lx W)	30x40mm
Main motor power	30kw
Feeding motor power	1.3/1.8kw
N.W	12.7t
Overall size(LXWXH)	2662x2800x3550mm

Detailed Images

Packing & Delivery

Our Company

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
