Product Description

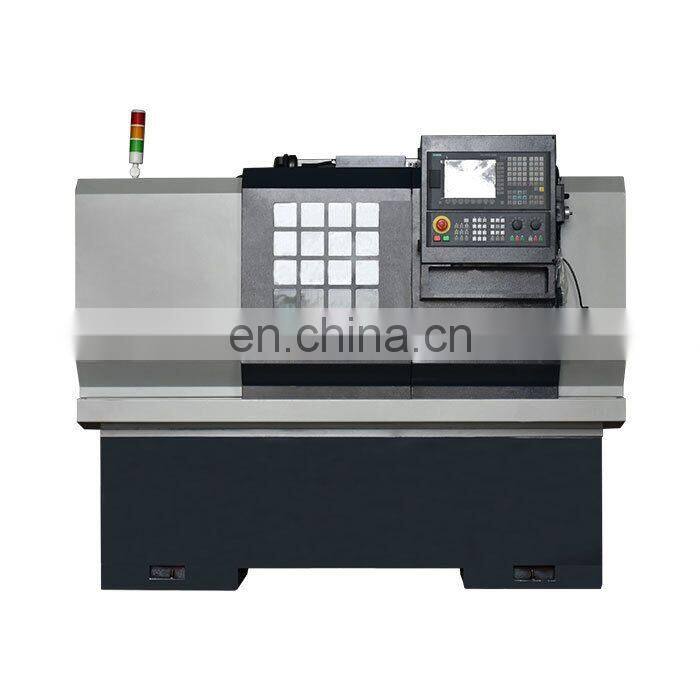

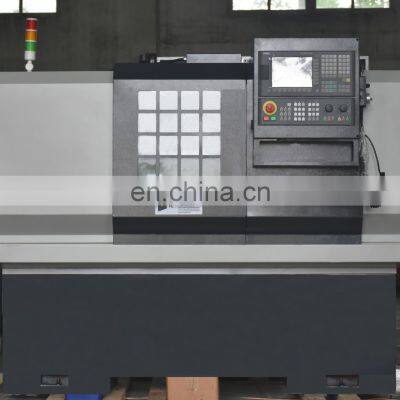

HOT SELL CNC LATHE MACHINE CK6432
Specification | CK6432×500/750mm |
Max.swing over bed | Φ360 mm |
Max.swing over carriage | Φ150 mm |
Distance between centers | 500/750mm |
Spindle bore | 60mm |
Spindle nose | A2-6 |
Rail width | 260mm |
Taper of spindle bore | MT6 |
Chuck | 8" |
Range of speed (Variable) | 150-2500 rpm |
X axis travel | 350mm |
Z axis travel | 500/750mm |
X/Z rapid speed | 4/7m/min |
X/Z screw | 2004/4006 |
Station of toolpost | 4 or 6 or 8 |
Max. section of tool | 20x20mm |
Stroke of tailstock sleeve | 100mm |
Dia./hole of tailstock sleeve | 50mm/MT4 |
Main motor power | 3.7kw |
Coolant pump power | 120w |
Overall dimenstion (L*W*H) | 1740/2000x1210x1650mm |
Packing size (L*W*H) | 1960/2230x1410x1990mm |
NW/GW | 1275/1450kg;1450/1600kgs |
