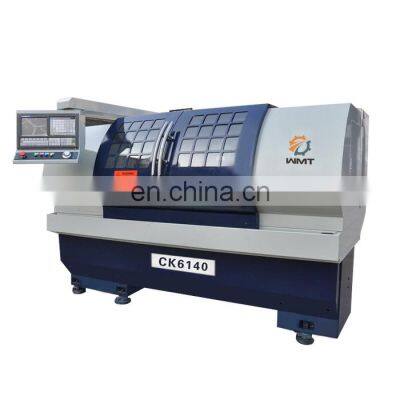

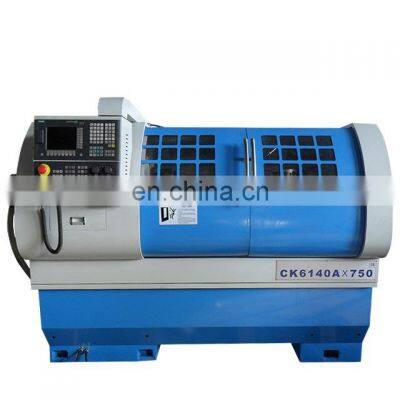

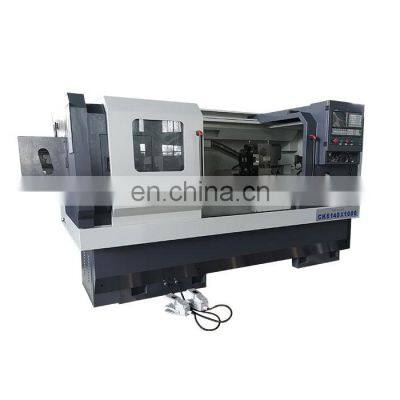

Product Description
Features:
Full enclosure complete, safe and easy operation
Hardened by induction, the machine bed and carriage has a long durability.
Electric turret and gang-tools turret can be both installed.
Auto lubrication cnc machine
4-position electrical tool post as standard, 6-position is for optional selection,
Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etcHigh efficiency and accurate processing.
The bed way has been finely grinned after ultra-tone quenching.
It is applied to various line like automobile, valve, electric tools and hardware,etc.
Specification | CK6140×750/1000/1500mm |
Max. swing over bed | Φ400mm |
Max. swing over carriage | Φ240mm |
Max length of work piece | 750/1000/1500mm |
Rail width | 330mm |
Range of spindle speed | 150-2000rpm or 60-600/280-2000rpm with 2 steps |
Stations of tool post | 4/6/8 position or gang type tool holder |
Spindle bore | Φ60mm |
Taper of spindle bore | MT6 |
X-rapid speed | 6m/min |
Z-rapid speed | 8m/min |
Width of guide way | 330mm |
X-axis travel | 250mm |
Z-axis travel | 1000/1500mm |
Max size of tool post | 25×25mm |
Taper of tail stock | MT4 |
Max range of tail stock quill | 120mm |
Power of main motor | 5.5kw |
Packing size(LxWxH) | 2420/2740/3240×1620×2100mm |
Net weight | 1700kg/2100kgs |
Standard 4 station toolpost
Hydraulic chuck can be choosed
Hydraulic tailstock can be choosed
6 or 8 station tool post can be choosed
GSK,SIEMENS ,FANUC can be choosed
Different sheet cover can be choosed
