CAK6161X750 High Precision and Cheap Price Horizontal CNC Lathe Machine Specification
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SK50P 500mm Mini Lathe Cnc for Metal WorkNegotiableMOQ: 1 -
CK0640 High Precision Benchtop Cnc Lathe With Pneumatic ChuckNegotiableMOQ: 1
-
CK0640 High Precision Benchtop CNC Lathe for Metal WorkingNegotiableMOQ: 1
-
CK6432 Mini China Cnc Lathe Machine for Metal WorkNegotiableMOQ: 1
-
CK6140X1500mm Cnc Lathe Machining Turning for SaleNegotiableMOQ: 1
Products Description
Features:
1. Big torque ,high precision spindle;
2. Hydraulic shift ,easy operate;
3. Z axis feed is directly connected which has high transmission accuracy and high positioning accuracy;
4. Vertical 4 position electric toolpost with high positioning accuracy.
Application :
CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .
The machine has a very wide use which is suitable or internal and external turning, tapering, circular arc, thread, boring , reaming of axle and disk workpiece .
It also can achieve non-circular curve machining ,you can choose the CNC system and optional accessories according to your requirement .
Specifications |
Units |
CAK6161 CAK6161B CAK6161C |
Max.swing over bed |
mm |
610 |
cessing length |
mm |
750/1000/1500/2000/3000 |
Spindle taper |
MT6(Ø90 1:20 for B)[Ø113 1:20 for C] |
|
Chuck size |
mm |
C6(D8)[D8] |
Spindle bore |
mm |
52(80 for B)[105 for C] |
Spindle speed 3 steps (auto change gear) |
rpm |
Independent spindle:100-1600 21-1500(162-1500,66-500,21-150) |
Tailstock sleeve travel |
mm |
150 |
Tailstock sleeve taper |
MT5 |
|
Position accuracy |
mm |
±0.015 |
Repositioning accuracy |
mm |
±0.006 |
X/Z axis rapid traverse |
m/min |
4/6 |
Spindle motor |
kw |
7.5 |
Machine dimension for 750 |
mm |
2550x1550x1900 |
Machine dimension for 1000 |
mm |
2750x1550x1900 |
Machine dimension for 1500 |
mm |
3250x1550x1900 |
Machine dimension for 2000 |
mm |
3700x1550x1900 |
Machine dimension for 3000 |
mm |
4710x1550x1900 |
Machine weight for 750 |
kg |
2250/2850 |
Machine weight for 1000 |
kg |
2400/3000 |
Machine weight for 1500 |
kg |
2600/3200 |
Machine weight for 2000 |
kg |
2830/3400 |
Machine weight for 3000 |
kg |
3650/4250 |

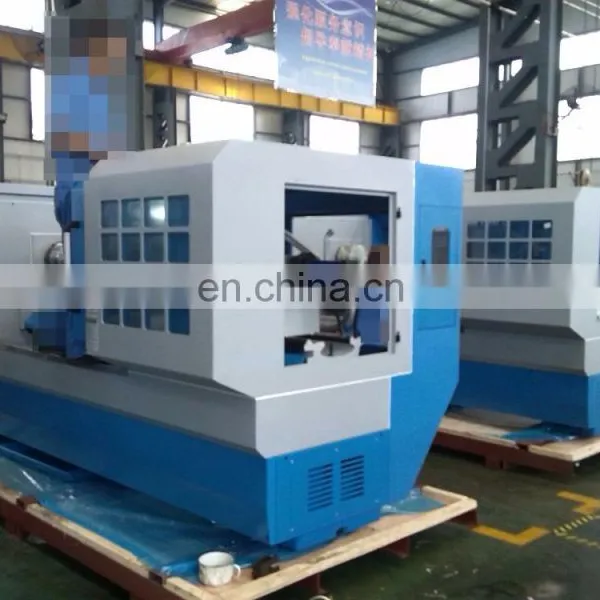

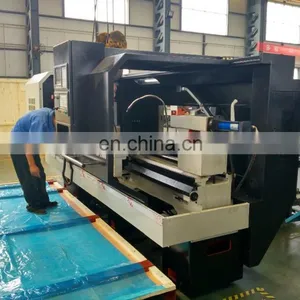

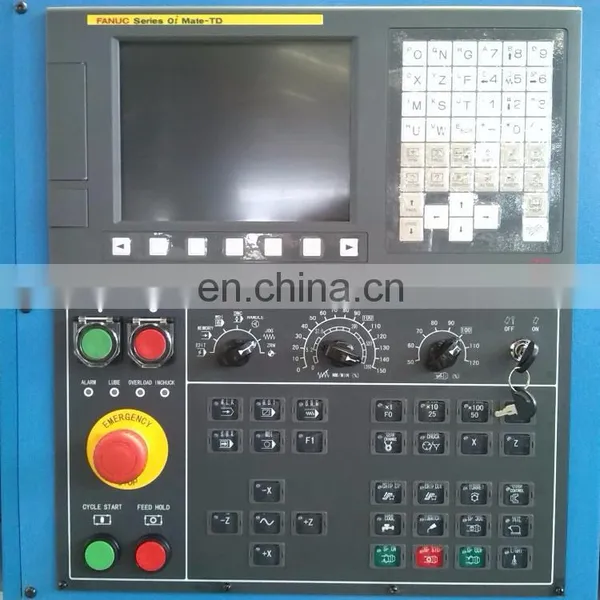

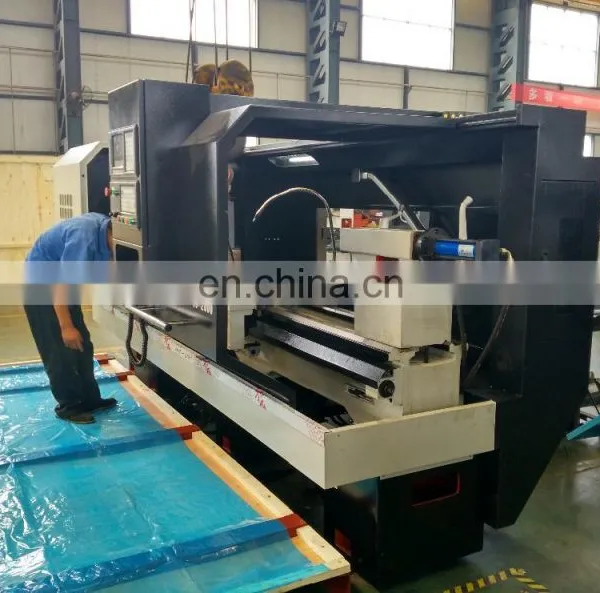

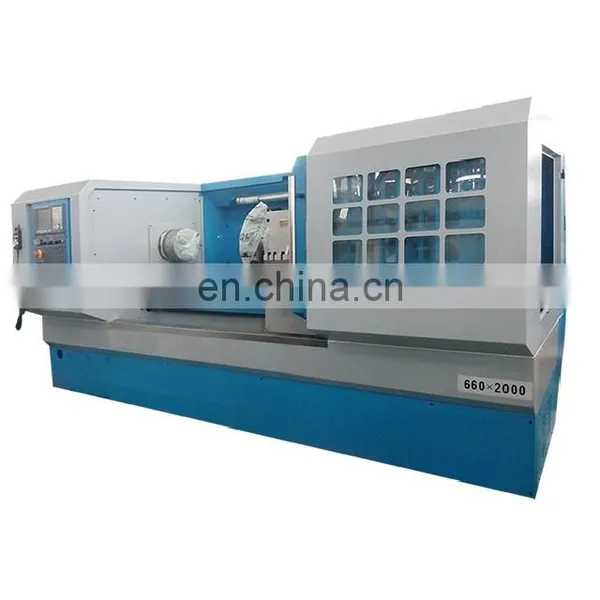

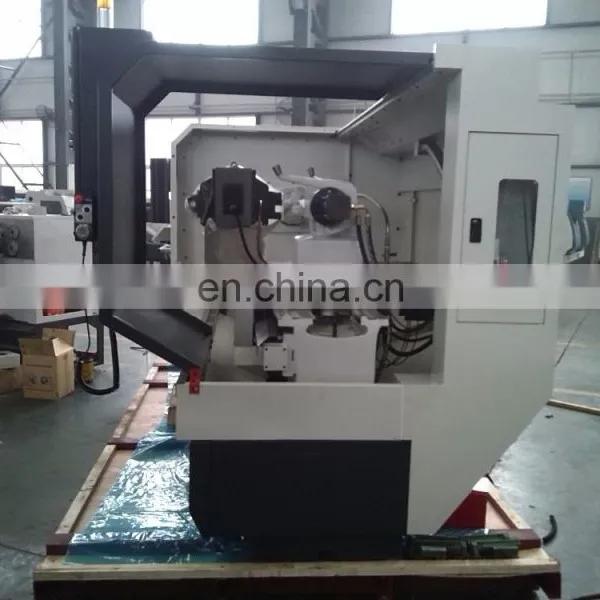

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
