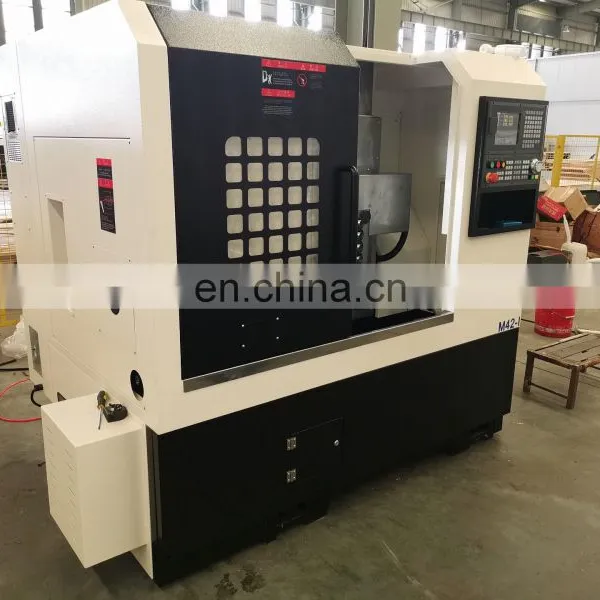

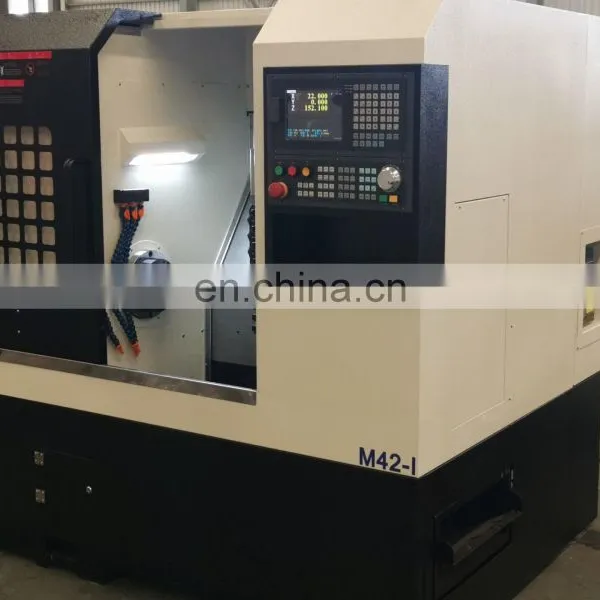

Name: M42-I Swiss Type Cnc Lathe With Cnc Control System From China Factory
SKU: 171484517

ALL CATEGORIES

M42-I Swiss Type Cnc Lathe With Cnc Control System From China Factory

Send Inquiry to This Supplier

Mr. Jack Xu

Sales Manager

4Yrs

Jingjiang Fuji Technology Co., Ltd.

Shanghai, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

Specification	M42-I
Max. bar dia.	42mm
Max. spindle hole dia.	43mm
lThe height from spindle center to ground	936mm
Spindle speed	0-4000rpm
Spindle motor power	5,5kw
X axis travel	360mm
Y axis travel	360mm
Z axis travel	300mm
X/Y/Z axis motor power	0.85/0.85/0.85kw
Slide guideway	Linear guideway
Gang tools qty	16pcs
Turning tool qty	5pcs
Tool size	16*16mm
Front drilling tools qty	4pcs
Drilling spindle size	ER20/20mm
Power tools qty	7 pcs(4+3)
Motor power	2kw
Rotating speed	3000rpm
Collet size	ER20
Drilling hole dia.	12mm
Tapping size	M10
Motor Power	0.12kw
Capacity	200L
Motor power	25W
Capacity	2L
Input pressure of compressed air	0.4-0.6Mpa
Motor Power	0.75kw
Hydraulic pressure	3.0Mpa
Machine Size(LXWXH)	2050X1530X1770mm
Machine Net Weight	2000kg
