CK6132X500 Good Rigid CNC Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC210 Mini Lathe Cnc Machine With China Lower PriceNegotiableMOQ: 1 -
Cnc Single Column Vertical Lathe CK5116 Vertical CNC Lathe Machine for Heavy CuttingNegotiableMOQ: 1
-
CK0640 Mini CNC Lathe With GSK Control SystemNegotiableMOQ: 1
-
CK30F Professional Supplier Lathe for Metal WorkingNegotiableMOQ: 1
-
CNC210 Benchtop Cnc Lathe for School Education and DIY Hobby UsersNegotiableMOQ: 1
CNC lathe CK6132 Features:
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification |
CK6132x500/750/1000mm |
Max.swing over bed |
Φ320 mm |
Max.swing over carriage |
Φ150 mm |
Distance between centers |
500/750/1000mm |
Spindle bore |
40mm |
Spindle nose |
A2-5 |
Rail width |
212mm |
Taper of spindle bore |
MT5 |
Chuck |
6'' |
Range of speed (Variable) |
150-2500 rpm |
X axis travel |
180mm |
Z axis travel |
500/750/1000mm |
X/Z rapid speed |
4/7m/min |
X/Z screw |
2004/4006 |
Station of toolpost |
4 or 6 |
Max. section of tool |
20*20mm or 16*16mm |
Stroke of tailstock sleeve |
100mm |
Dia./hole of tailstock sleeve |
32mm/MT3 |
Main motor power |
2.2kw or 3.7kw |
Coolant pump power |
120w |
Overall dimenstion (L*W*H) |
1600/1920/2100x1120x1750mm |
Packing size (L*W*H) |
1815/2120/2300x1300x2000mm |
NW/GW |
800/900/1050kg;950/1050/1200kgs |

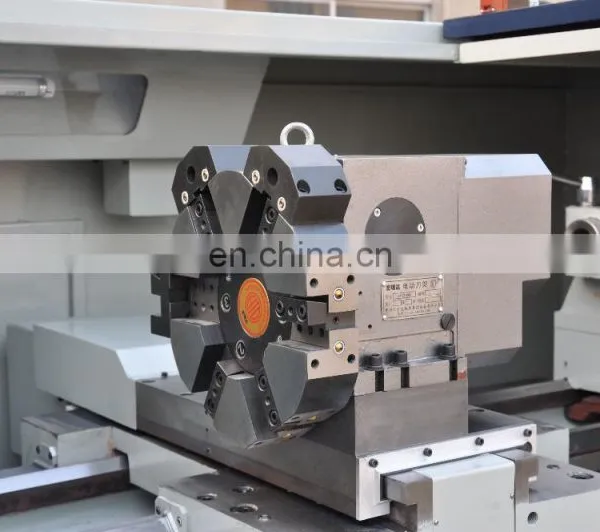

Machine pics
Machine Accessories
Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Manual 3-jaw chuck
Optional Accessories:
GSK218M controller
Simens 808D controller, Advance controller
Fanuc Oi TF controller
6-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)
Gang tools type
