LCK360 China Cnc Turn Mill Machining Center With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK46D Cnc Turning Lathe Price With Living ToolsNegotiableMOQ: 1 -
Parallel Lathe CNC210 Mini CNC Lathe for Hobby and School TrainingNegotiableMOQ: 1
-
CK28 3-Axis Turning Center Cnc LatheNegotiableMOQ: 1
-
300mm Swing CNC Lathe Machine SpecificationNegotiableMOQ: 1
-
CK6132X500 Good Rigid CNC Lathe Machine With CENegotiableMOQ: 1
Features:
·High precision:2-axis linear way, high-precision linear guide rdeuce wear and tear
·Screw in the center of guide way enhances the stability of the machine tools
·Tringular shieid has grdatly enhanced the protection and chip cleaning of machine locls
·Tool post are used to inprove the processing efficlency, accuracy and stabilty tringular

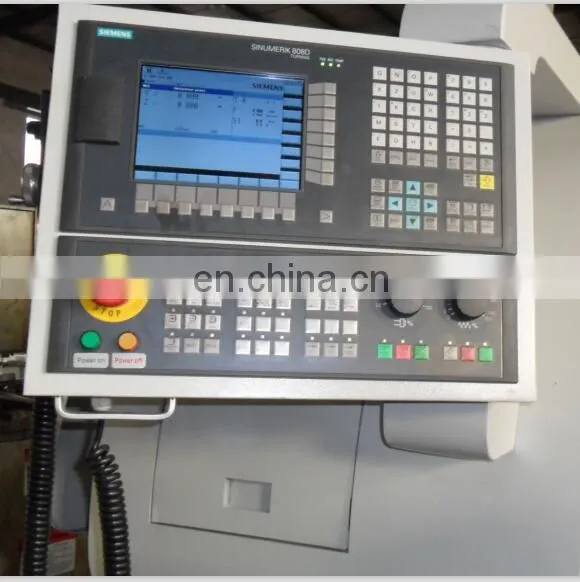

·Encloser can be fixed with GSK, KND or Simens controlling system
Specifications:
RAIL WIDTH |
Rail width |
260mm |
||
SPINDLE |
Spindle nose |
A2-5 |
A2-6 |
|
Spindle bore |
56mm |
62mm |
||
Taper of Spindle bore |
||||
Chuck |
6” |
6”or 8” |
||
Range of spindle speed |
100-4000rpm |
|||
FEEDS |
X a-xis travel |
350mm |
||
Z a-xis travel |
420mm |
|||
X/Z Rapid speed |
16/18m/min |
|||
CARRIAGE |
Station of tool carrier |
4 or 6 |
||
Max.section of tool |
20x20mm |
|||
TAILSTOCK |
Stroke of tailstock sleeve |
No |
||
Diameter/Hole of tailstock sleeve |
No |
|||
MOTOR |
Main motor power |
3.7kW |
4kW or 5.5kW |
|
Coolant pump power |
180W |
250W |
||
DIMENSION |
Overall dimensions L x W x H |
2000x1400x1500mm |
||
Parking size L x W x H |
2200x1650x1800mm |
|||
WEIGHT |
Net weight |
1400KG |
1750KG |
|
Groos weight |
1650KG |
2050KG |
||
Standard Accessories:
1.Spring fastener of pneumatic
2.AC servo motor
3.gang-type tool carrier
4.Auto lubration coolant system
Optional Accessories:
1.Pneumatic or hydraulic chuck
2.With milling or drilling power head
