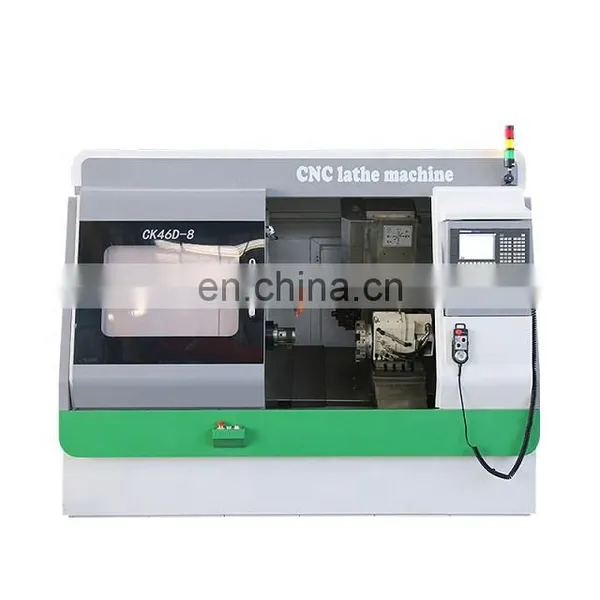

CK46D Cnc Turning Lathe Price With Living Tools
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Parallel Lathe CNC210 Mini CNC Lathe for Hobby and School TrainingNegotiableMOQ: 1 -
CK28 3-Axis Turning Center Cnc LatheNegotiableMOQ: 1
-
300mm Swing CNC Lathe Machine SpecificationNegotiableMOQ: 1
-
CK6132X500 Good Rigid CNC Lathe Machine With CENegotiableMOQ: 1
-
CNC210 Mini Lathe Cnc Machine With China Lower PriceNegotiableMOQ: 1
Product Description
Product Application
·High precision:2-axis linear way, high-precision linear guide reduce wear and tear;
·Screw in the center of guide way enhances the stability of the machine tools;
·Tool post are used to improve the processing efficiency, accuracy and stability triangular;
·Enclose can be fixed with GSK, or Siemens controlling system.
Specifications |
CK46D |
Max.swing over bed |
450mm |
Max work-piece length |
370mm |
Max. swing over carriage |
160mm |
X axis travel |
450mm |
Z axis travel |
370mm |
Y travel |
190mm |
Spindle nose |
A2-5 collect chuck 46mm |
Power tools |
4+4 |
Power tools center distance |
60mm |
Max. section of tool |
20X20mm |
Spindle speed |
50~4500rpm |
Motor power |
Motor power |
Rapid speed (X/Y/Z) |
24/15/24M/min |
Positioning accuracy |
0.006mm |
RE-Positioning accuracy |
0.003mm |
Min control unit |
X:0.001mm Z:0.001mm |
N.W |
3000kgs |
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
