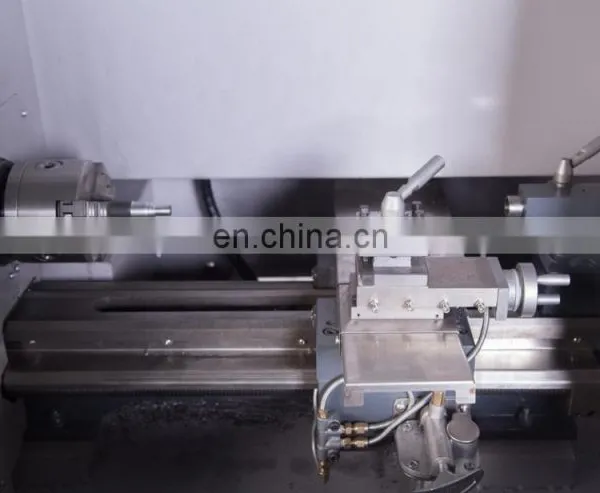

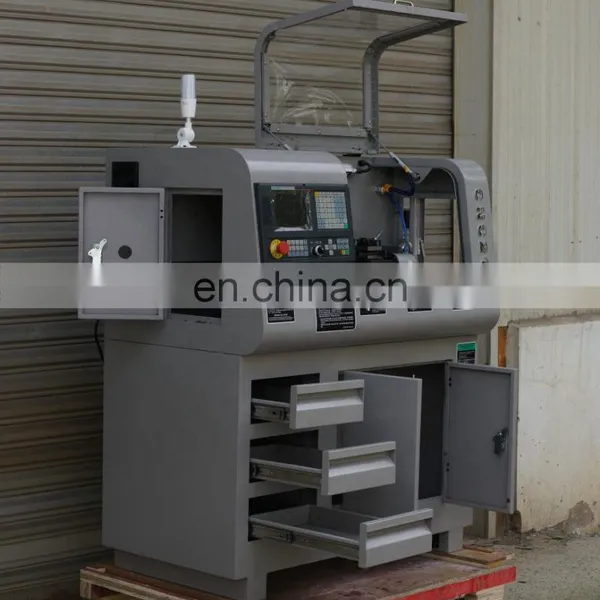

CNC210 Mini Lathe Cnc Machine With China Lower Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Single Column Vertical Lathe CK5116 Vertical CNC Lathe Machine for Heavy CuttingNegotiableMOQ: 1 -
CK0640 Mini CNC Lathe With GSK Control SystemNegotiableMOQ: 1
-
CK30F Professional Supplier Lathe for Metal WorkingNegotiableMOQ: 1
-
CNC210 Benchtop Cnc Lathe for School Education and DIY Hobby UsersNegotiableMOQ: 1
-
CK45 Slant Bed CNC Lathe MachineNegotiableMOQ: 1

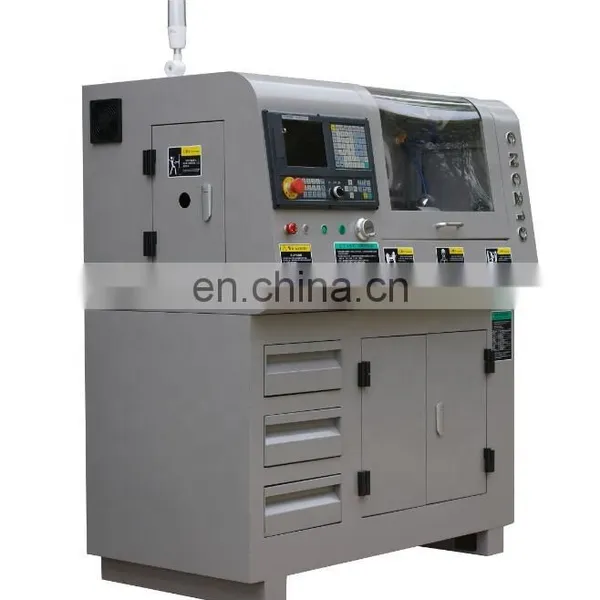

CNC lathe machine CNC210 with below features:
1.X/Z feeding motor and main motor: servo motor
2.High cost performance

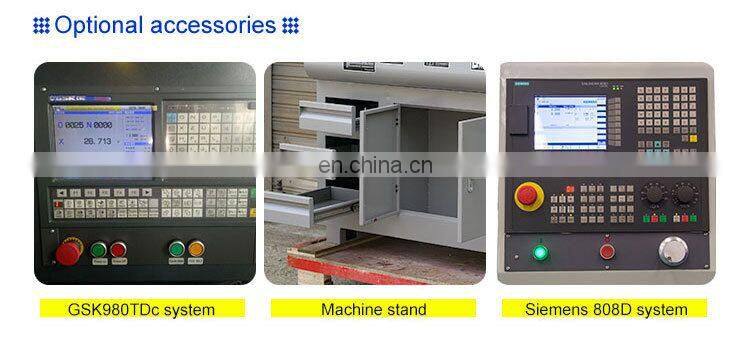

3.Machine stand is optional
4.GSK980TDc,Siemens is optional
Specification |
CNC210 |
Max.swing over bed |
210mm |
Max.swing over carriage |
100mm |
Distance between centers |
400mm |
Sindle bore |
26mm |
Sindle taper |
MT4 |
Spindle speed |
3000rpm |
X travel |
90mm |
Z travel |
300mm |

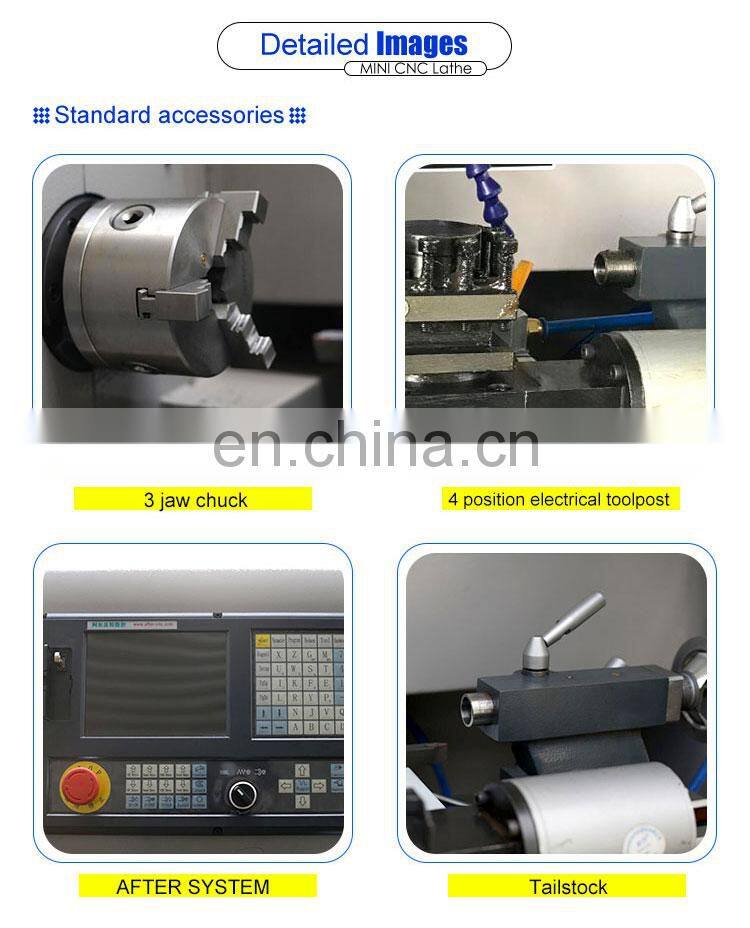

Tool post |
4-position |
rapid speed |
3m/min |
Feeding motor power |
3.0 N.M |
Feeding motor type |
step motor |
Spindle motor power |
1.2KW |
Spindle motor type |
incremental Servo motor |
Min.setting unit |
0.001mm |
Tailstock dia. |
22mm |
Tailstock travel |
50mm |
Tailstock taper |
MT2 |
Overall size |
1170*700*1760mm |
Net weight |
350KG |
