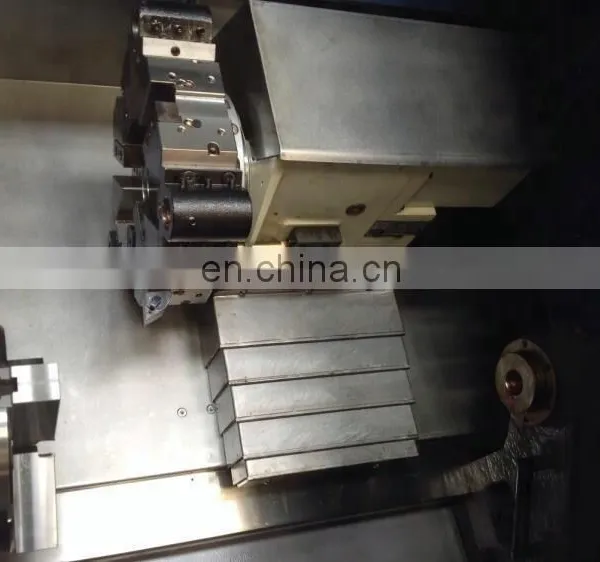

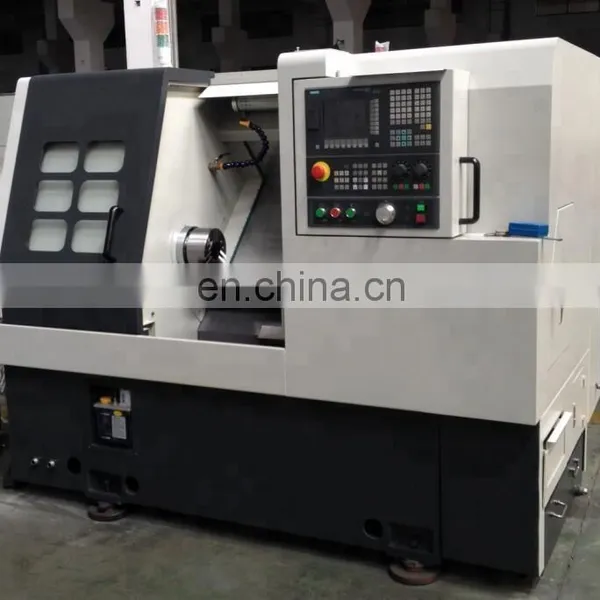

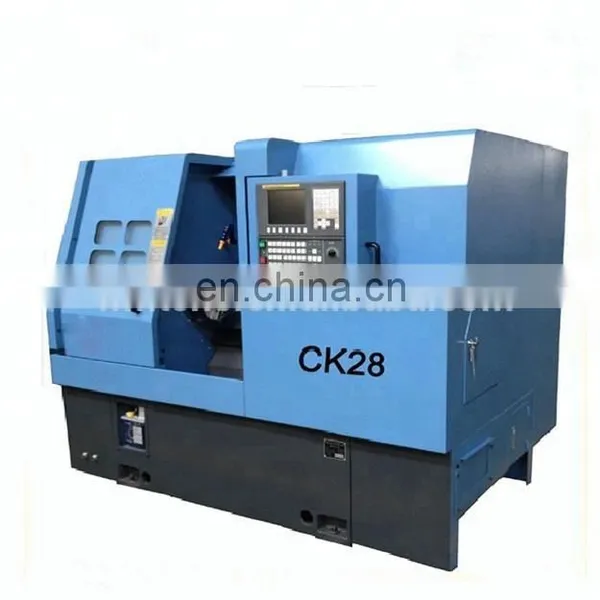

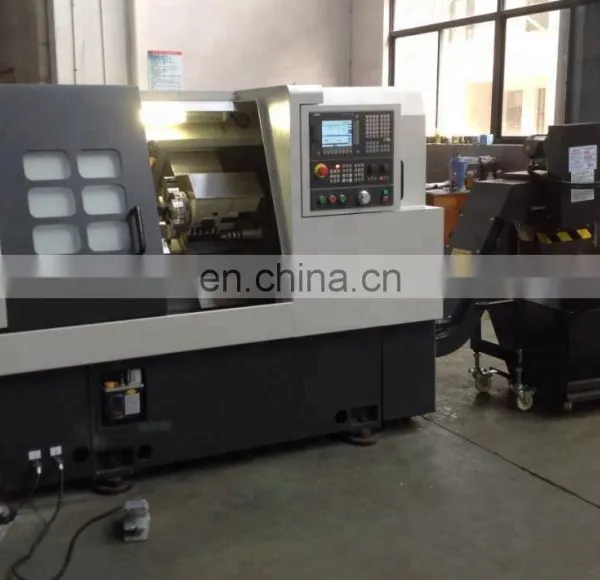

CK28 3-Axis Turning Center Cnc Lathe
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300mm Swing CNC Lathe Machine SpecificationNegotiableMOQ: 1 -
CK6132X500 Good Rigid CNC Lathe Machine With CENegotiableMOQ: 1
-
CNC210 Mini Lathe Cnc Machine With China Lower PriceNegotiableMOQ: 1
-
Cnc Single Column Vertical Lathe CK5116 Vertical CNC Lathe Machine for Heavy CuttingNegotiableMOQ: 1
-
CK0640 Mini CNC Lathe With GSK Control SystemNegotiableMOQ: 1
Features:
1.Integrated slant bed structure.Cheap CNC lathe machine
2.High speed at 5000r/min. First-class precision spindle bearing.
3.High precision ball screw Rexroth, fast feeding for high working efficiency.
4.All-closed stainless steel protection, strong liquid protection without any water leak.
5.Gang feed tool structure, quickly changing tool, and high repeated positioning accuracy 0.003mm.
Specification |
CK28/300 |
CK32/300 |
||
Swing over bed |
280mm |
320mm |
||
Swing over carriage |
120mm |
140mm |
||
Max.machining dia.(disk) |
160mm |
200mm |
||
Max.Length of workpiece |
150/200mm |
200/250mm |
||
Bedway slant degree |
45° |
50° |
||
Spindle bore |
40mm |
52mm |
||
Spindle nose |
A2-4 |
A2-5 |
||
Spindle speed range |
60-5000r/min |
60-5000r/min |
||
Hydraulic chuck |
5 |
6 |
||
Bar auto-feeding bore |
30mm |
42mm |
||
X/Z-axis travel |
300/250mm |
300/250mm |
||
X/Z-axis rapid speed |
12/16m/min |
12/16m/min |
||
X/Z-axis repositioning accuracy |
0.003mm |
0.003mm |
||
Size of gang tools worktable |
630/220mm |
690/265mm |
||
Toolpost |
gangtools or hydraulic turret, you can select |
|||
Power of main motor |
3.0kw |
5.5-7.5kw |
||
Min.input unit |
0.0005/0.001mm |
0.0005/0.001mm |
||
Max.tool shank |
20x20mm |
20x20mm |
||
Max.dia for boring bar |
25mm |
25mm |
||
Packing size |
1500x1200x1500mm |
1480x1600x1210mm |
||
N.W/G.W |
1800/2100kgs |
2600/3000kgs |
||
Standard Equipment：
CNC control system: FANUC, GSK or SIMENS as you select
Spindle bearing: Japan NSK or P4 class spindle bearings, Germany
Guideway: Japan THK or Germany Rexroth precision linear guide
Leadscrew: Taiwan Yintai precision ball screw
Frequency inverter: JapanYaskawa
Spindle chuck: HGD Precision collet chuck
Oil cylinder: HGD hollow hydraulic cylinder
Turret: Precision gangtools
Hydraulic station: Made in Taiwan famous brand
Alarm lamp
Auto-lubricating system
Cooling system
Optional Accessories：
Hydraulic turret: 8-Position
5"Hollow hydraulic chuck
Auto chip conveyor
Auto bar feeding
