CK61125 Heavy Duty Horizontal CNC Metal Lathe Machine Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Double column vertical lathe machine CK5225 heavy duty vertical manual lathe machine for metal processing
-
SHL400/350 horizontal cnc torno machines slant bed lathe 8-station servo turret
-
CK1120 multi-function swiss type CNC lathe machine with servo motor
-
torno cnc CK6140 1000mm metal cnc lathe machine for turning
-
China Hot Sell TX500 3-Axis slant bed cnc turning center lathe machine with high quality
-
Heavy duty flat bed cnc lathe CK6166x1000 for metal working
Product Description
Technology Data
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification | CK61125 | ||
Max dia.swing over bed(mm) | 1250 | ||
Max dia.swing over cross slide(mm) | 880 | ||
Max.length of work-piece(mm) | 1500 | ||
Width of bed(mm) | 755 | ||
Spindle bore(mm) | 130 | ||
Power of spindle motor(kw) | 22 | ||
Spindle front taper | 1:20/140 | ||
Range of spindle speed(r/min) | 17-250 | ||
Max.traverse of X/Z(mm) | X:580 Z:1500 | ||
X/Z rapid traverse(r/min) | 3000/6000 | ||
Speed(r/min) | 1500 | ||
Torgue(N.m) | 18 | ||
Power(kw) | 2.8 | ||
Z-axis motor | Speed(r/min) | 1500 | |
Torgue(N.m) | 30 | ||
Power(kw) | 3.8 | ||
Tailstock quill | Diameter(mm) | 160 | |
Travel(mm) | 300 | ||
Taper | Morse NO.6 | ||
Electric tool-post | Model | SLD170A | |
No.of tool stations | Vertical four-station | ||
Dimension(mm) | 300×300 | ||
Turret indexing time(s) | 2.6 | ||
Chuck | K72-1000 four jaw chuck | ||
Positioning accuracy(mm) | 0.020 | ||
Repositioning accuracy(mm) | 0.01 | ||
Overall dimensions(L*W*H)(mm) | 4500*2300*2300 | ||
Machine weight (T ) | 10 | ||
Standard Accessories:
1. Cooling system 2. Work lamp
3. Auto-lubricating system
4. X/Z feeding servo motor
5. 4-Position electrical tool post
6. Unitary iron casting machine stand
7. Manual 3-jaw chuck 2 pcs
Optional Accessories:
1. GSK980TDC, GSK218M controller
2. Siemens 808D controller
3. Siemens 808D Advance controller
4. Siemens 828D controller
5. Fanuc Oi TF controller
6. 6/8-Position electrical tool post

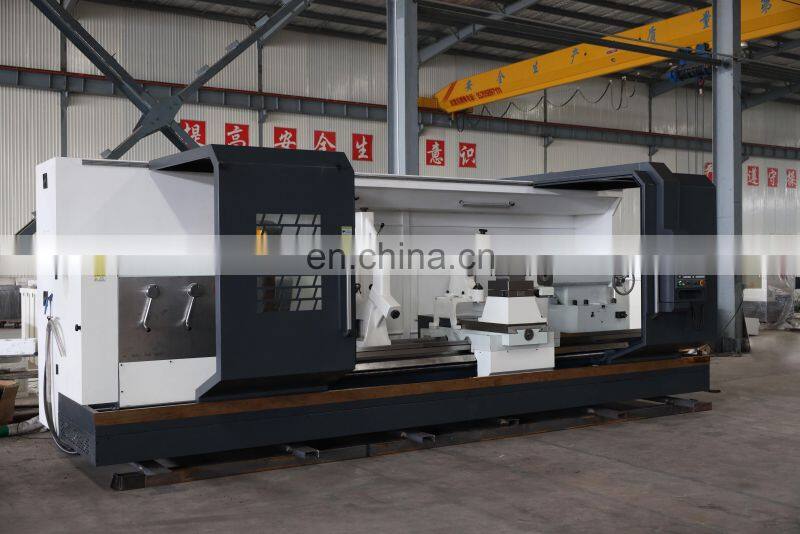

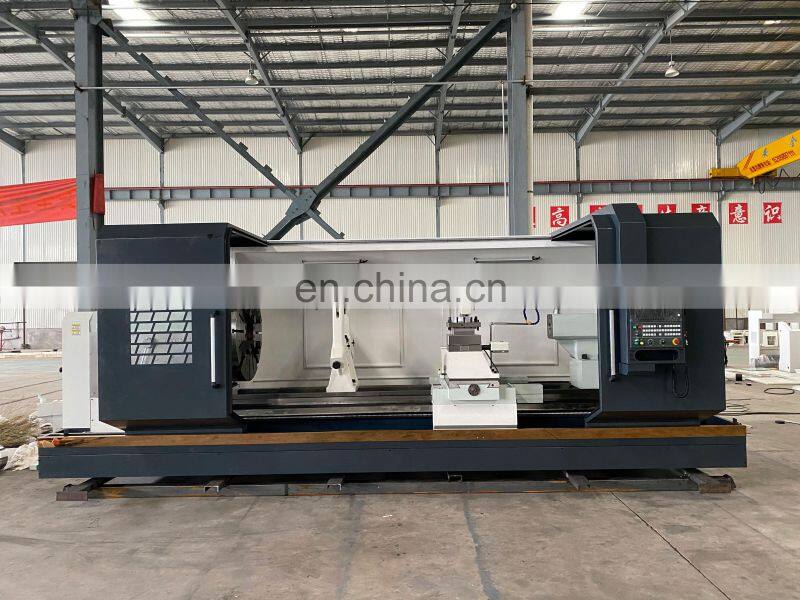

Machine pics

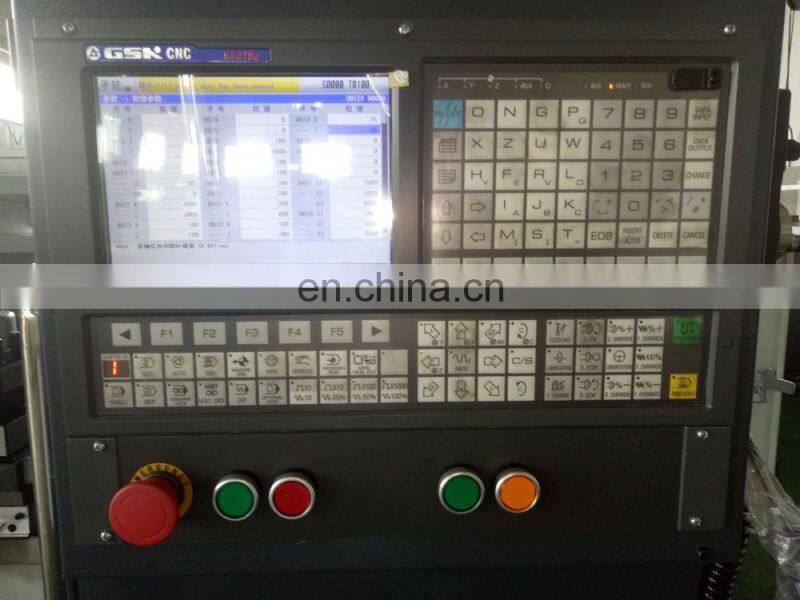

GSK980TDC controller

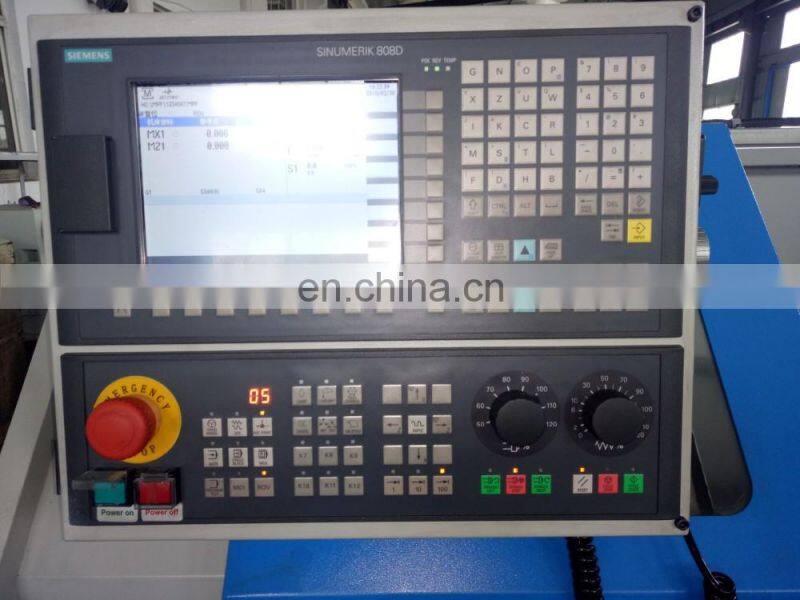

Siemens 808D controller

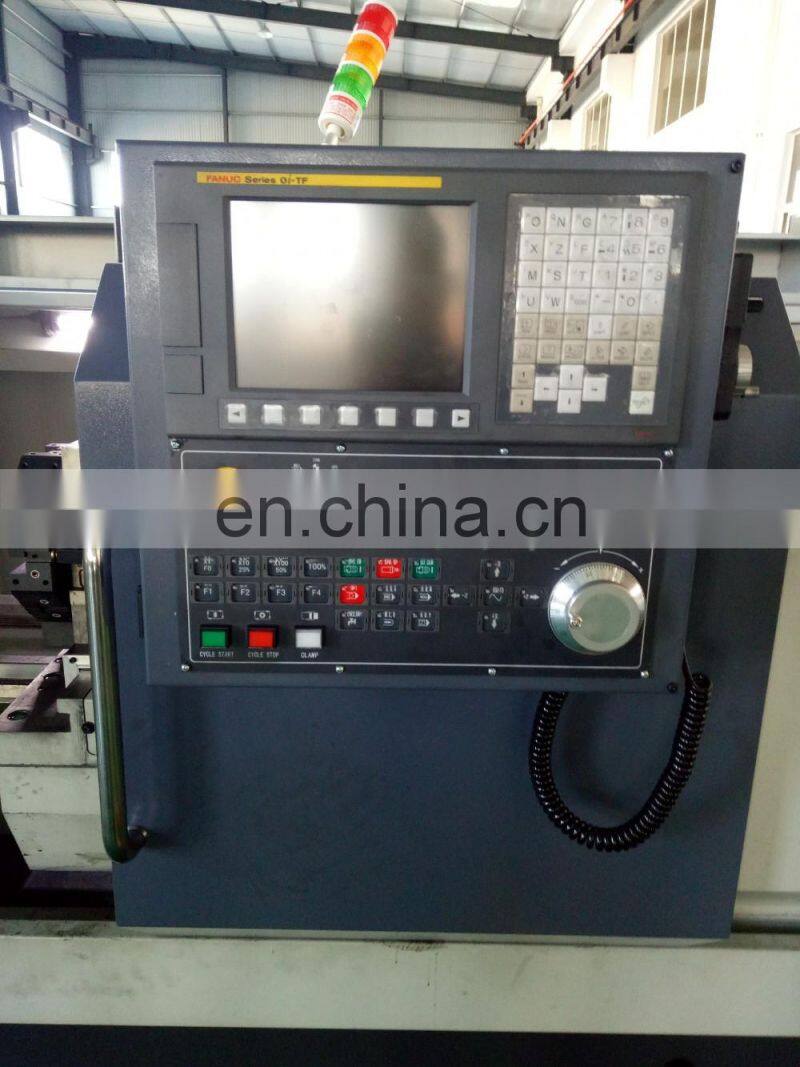

Fanuc Oi TF controller
Packing & Delivery
