Home > Products > CNC LATHE > wmt cnc lathe CK6432 500mm cnc lathe machine automatic for sale

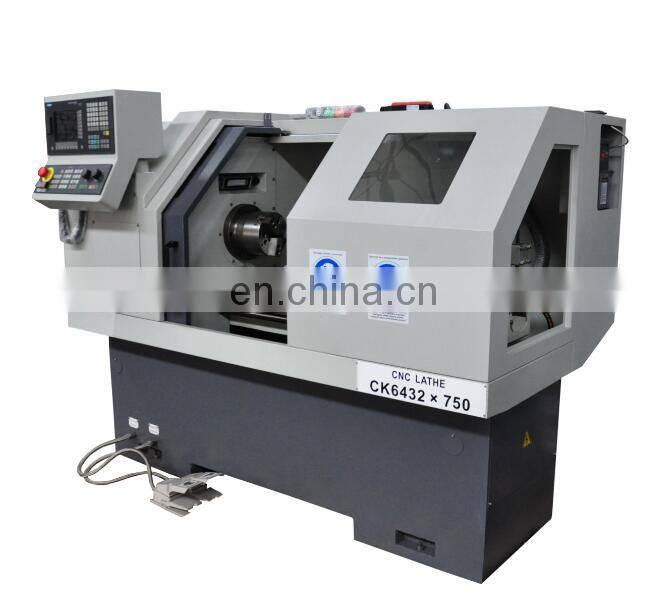

wmt cnc lathe CK6432 500mm cnc lathe machine automatic for sale

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Recommend

Product Description

CNC Lathe Machine Main Feature:
cnc lathe manufacturers,

1. The half and full enclosure, you can select;
2. Hardened by induction, the machine bed and carriage has a long durability;
3. Electric turret and gang-tools turret can be both installed;
4. Manual lubrication or auto lubrication is up to you;
5. 4-position electrical tool post as standard, 6-position is for optional selection;
6. Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc., with high efficiency and accurate processing;
7. The bed way has been finely grinned after ultra-tone quenching;
8. It is applied to various line like automobile, valve, electric tools and hardware, etc.

Specification	CK6432×500/750mm
Max.swing over bed	Φ360 mm
Max.swing over carriage	Φ150 mm
Distance between centers	500/750mm
Spindle bore	60mm
Spindle nose	A2-6
Rail width	260mm
Taper of spindle bore	MT6
Chuck	8"
Range of speed (Variable)	150-2500 rpm
X axis travel	350mm
Z axis travel	500/750mm
X/Z rapid speed	4/7m/min
X/Z screw	2004/4006
Station of toolpost	4 or 6 or 8
Max. section of tool	20x20mm
Stroke of tailstock sleeve	100mm
Dia./hole of tailstock sleeve	50mm/MT4
Main motor power	3.7kw
Coolant pump power	120w
Overall dimenstion (LWH)	1740/2000x1210x1650mm
Packing size (LWH)	1960/2230x1410x1990mm
NW/GW	1275/1450kg;1450/1600kgs

Detailed Images

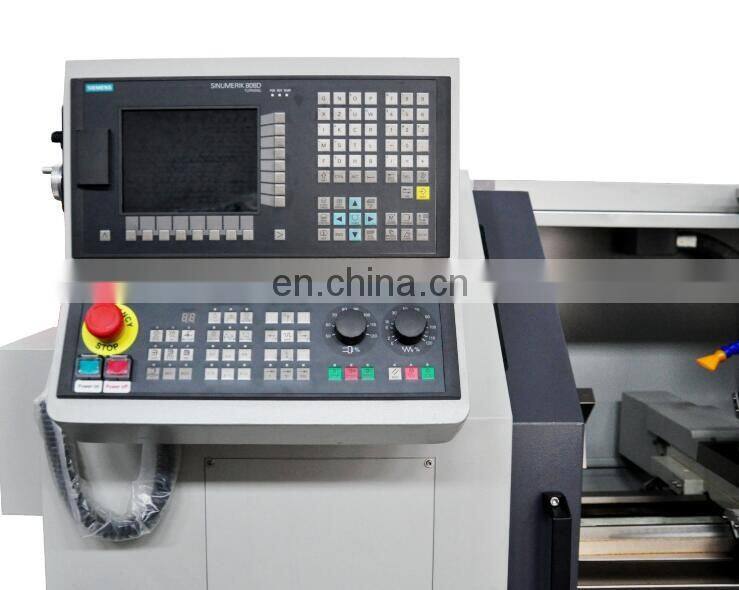

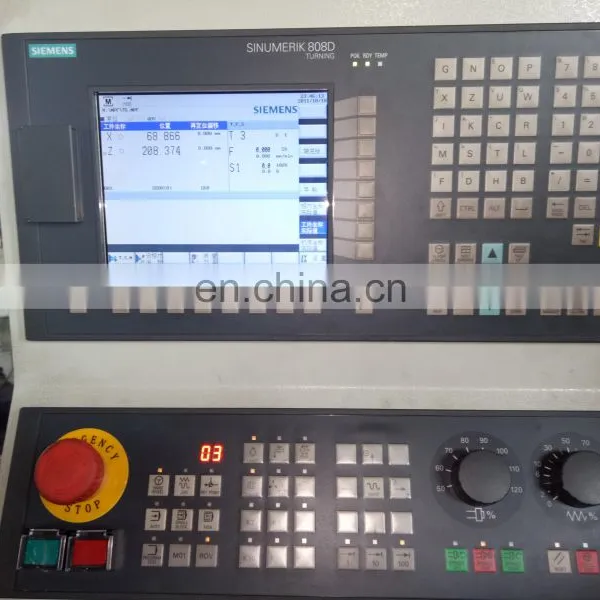

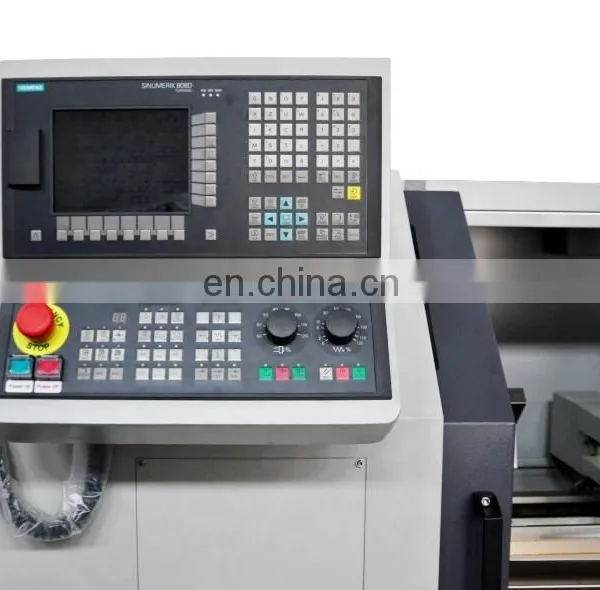

CNC controller: Famous brand GSK ,SIEMENS ,FANUC

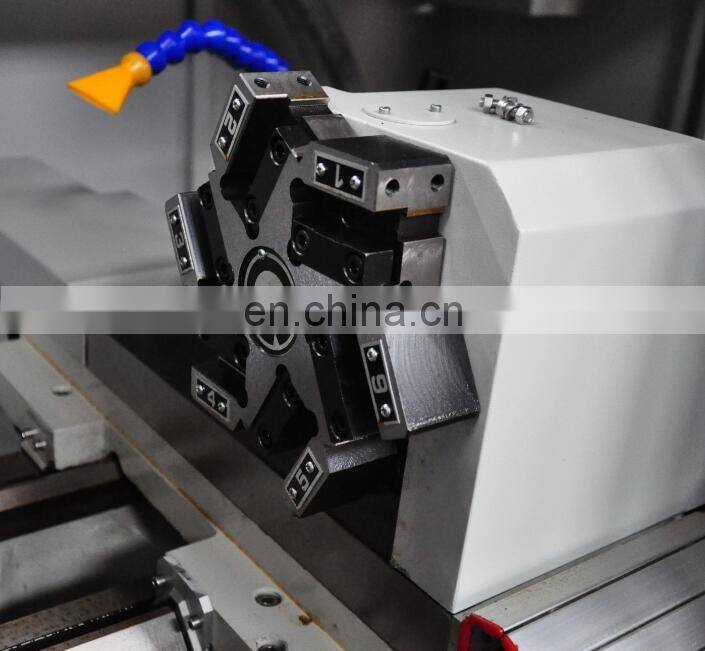

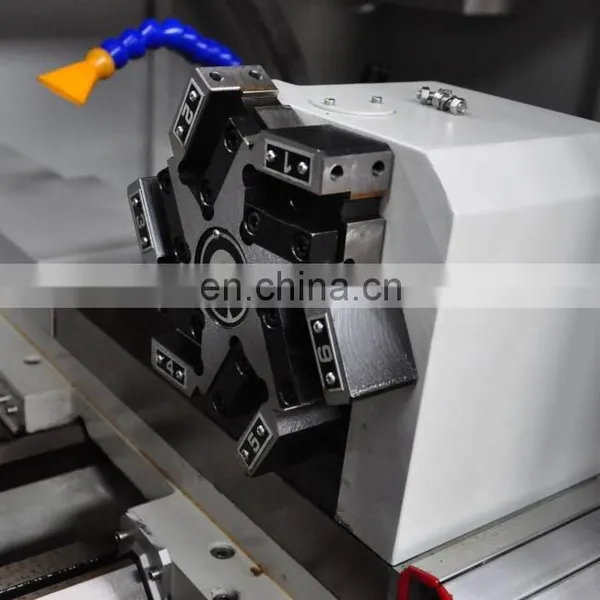

Professional 6 or 8 station as you like

Hydraulic tailstock

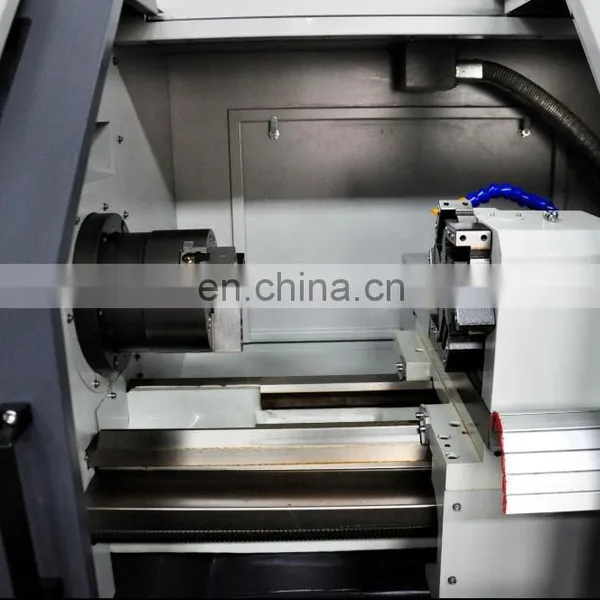

Hydraulic 3 jaw chuck

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
