QK1322 225mm Spindle Bore Dia. Pipe Threading Machine

Jingjiang Fuji Technology Co., Ltd.
4Yrs
QK1322 225mm Spindle Bore Dia. Pipe Threading Machine thumbnail-1
QK1322 225mm Spindle Bore Dia. Pipe Threading Machine thumbnail-2
QK1322 225mm Spindle Bore Dia. Pipe Threading Machine thumbnail-3
QK1322 225mm Spindle Bore Dia. Pipe Threading Machine photo-1

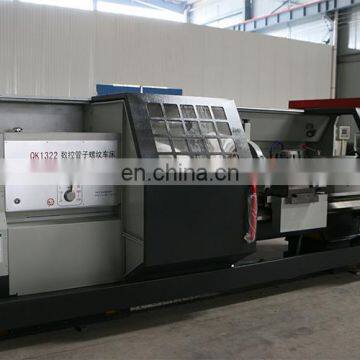

QK1322 225mm Spindle Bore Dia. Pipe Threading Machine photo-2

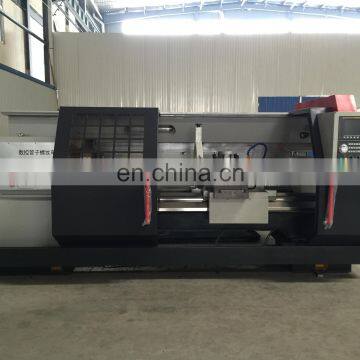

QK1322 225mm Spindle Bore Dia. Pipe Threading Machine photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Technology Data

Main Feature

High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification
QK1322
Max.swing over bed
Ф670mm
Max.swing over carriage
Ф380mm
Max. cutting length
1500mm
Rail width
550mm
Spindle bore
Ф225mm
Taper of spindle bore
MT6
Chuck size
500mm
Range of spindle speed
(L):25-120rpm(H):100-500rpm
X-axis travel
350mm
Z-axis travel
1250mm
X/Z rapid speed
4m/min
Electronic turret
4 -station
Max.section of tool
32x32mm
Stroke of tailstock sleeve
250mm
Diameter/Hole of tailstock sleeve
Ф100mm/MT5
Main motor power
11kw
Overall dimensions L x W x H
3657×1555×1360mm
Packing size L x W x H
3857×1755×1560mm
Net weight
4600kgs
Gross weight
5600kgs
Machine pics

GSK980TDC controller


Siemens 808D controller


Fanuc Oi TF controller


Machine Accesories

Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs


Optional Accessories:
GSK218M controller

Simens 808D controller

Simens 808D Advance controller

Fanuc Oi TF controller
6/8-Position electrical tool post
