TCK46A Cnc Lathe Machine Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TCK6336L Slant Bed Cnc Lathe With High Precision From China FactoryNegotiableMOQ: 1 -
High Speed CK35G 350 mm Cnc Lathe Machine With Linear GuideNegotiableMOQ: 1
-
High Speed CK28G 280 mm Cnc Lathe Machine With Linear GuideNegotiableMOQ: 1
-
CK6136x750 Cnc Lathe Machine for Metal WorkingNegotiableMOQ: 1
-
CK48T 45 Degree Slant Bed CNC Lathe for Thread CuttingNegotiableMOQ: 1

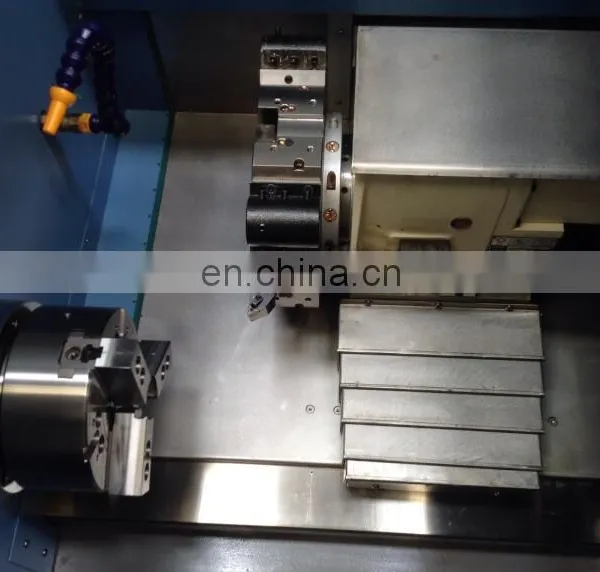

CNC SLANT BED LATHE
Product Application
·High precision:2-axis linear way, high-precision linear guide rdeuce wear and tear
·Screw in the center of guide way enhances the stability of the machine tools
·Tool post are used to improve the processing efficiency, accuracy and stability triangular
·Enclose can be fixed with GSK, or Siemens controlling system
Specifications |
TCK46A |
Max.swing over bed |
460mm |
Max.swing over cross slide |
170mm |
Max.machining length |
350mm |
Spindle unit |
170mm |

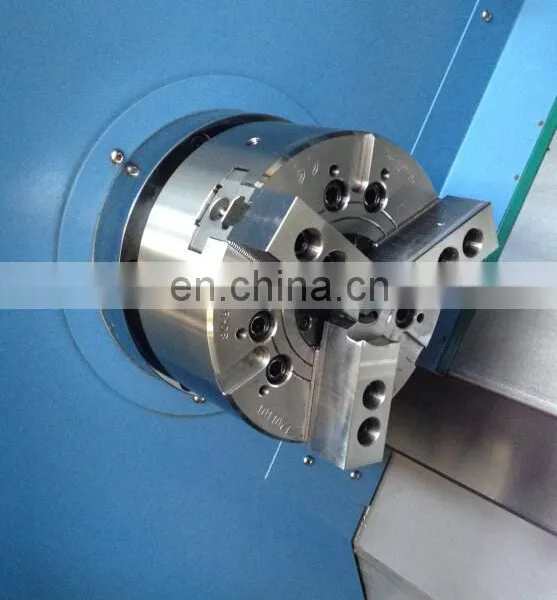

Spindle nose(optional chuck) |
A2-5/A2-6 |
Spindle motor power |
5.5kw |
Max.spindle speed |
3500rpm |
Spindle bore |
56mm |
Drawing hole diameter |
45mm |
X/Z axis screw specifications |
3210/3210 |
X-axis travel |
240mm |
Z-axis travel |
400mm |
X axis motor torque |
7.5N.m |
Z axis motor torque |
7.5N.m |
X/Z axis repeatability |
±0.003mm |
Tool Turret(Optional) |
80-8T/12T |
Turret center high dimensions |
80mm |
Hydraulic Quill dia. |
70mm |
Hydraulic Quill traverse |
80mm |
Hydraulic Quill taper |
MT5 |
Hydraulic tailstock travel |
200mm |
Machine dimension(LxWxH) |
2500x1700x1710mm |
Net.weight |
2600kgs |
