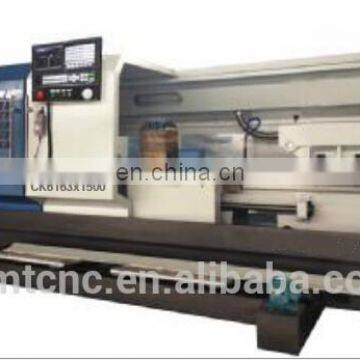

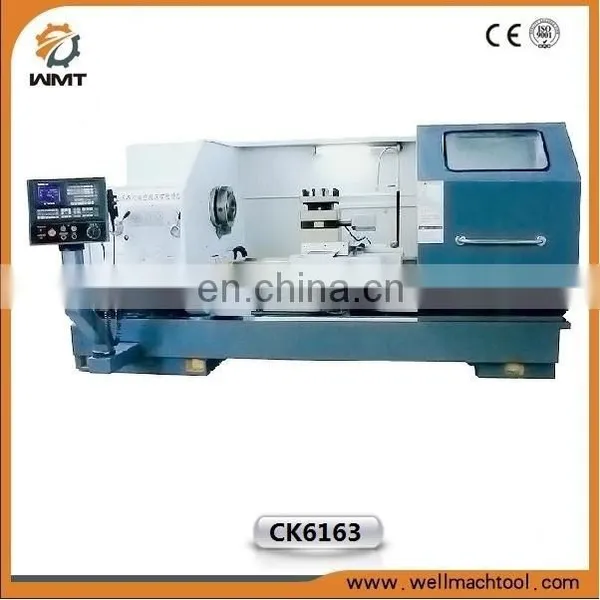

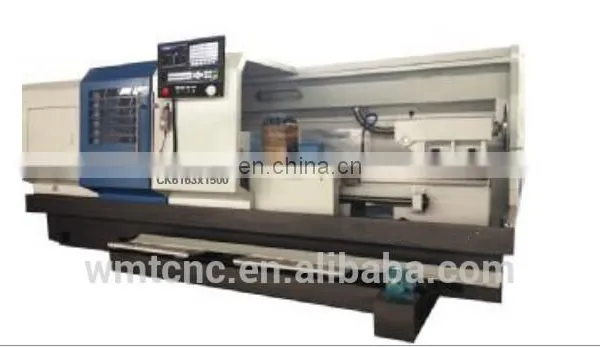

CK6163 High Speed Low Cost Cnc Lathe Machinery Price With Good Quality
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CAK6161x1000 Lathe Machine From China Type Cnc Automatic LatheNegotiableMOQ: 1 -
CNC210 High Precision Mini Cnc Lathe for School TrainingNegotiableMOQ: 1
-
Desktop Cnc Lathe CAK6180x1000 Metal Cnc Machine for Making ScrewsNegotiableMOQ: 1
-
CK6136 X750 CNC Lathe Machine for Precision Threads Cutting for SaleNegotiableMOQ: 1
-
LCK360 China Cnc Turn Mill Machining Center With CENegotiableMOQ: 1
Features:
CK6163 CNC lathe is an economical and practical universal machine tool with stable mature product structure as well as stable quality and reliable performance. Widely used in automotive, petroleum, military and other industries. Shaft can be achieved both inside and outside surface of the disk and the like, cone ,arc, threading, boring, reaming process. The machine can be also processed to achieve a non-circular curve. Different control systems and accessories can be chosen according to the user’s needs.
Specification |
CK6163 |
Max. swing over bed (mm) |
φ630 |
Max. swing dia. over cross slide(mm) |
φ350 |
cessing length(mm) |
1000 |
Form |
Three gears No grade to change frequency |
Number of spindle speed |
No grade |
Range of spindle speed(r/min) |
25-850 rpm |
The spindle terminal structure |
C11 |
Diameter of spindle bore (mm) |
Φ85 |
The taper of spindle front-end |
(Metric)120 1:20 |
Power of main motor (KW) |
11KW |
Max.travel of tool post (mm) |
X:530 Z:1200 |
Fast moving feed speed (mm/min) |
X:4000 Z:5000 |
Resetting accuracy(mm) |
X:0.012 Z:0.016 |
Processing accuracy(mm) |
IT6-IT7 |
Surface roughness |
Ra1.6 |
Sleeve diameter of tailstock (mm) |
φ100 |
Sleeve travel of tailstock (mm) |
250 |
Cone hole taper of tailstock’s sleeve |
MT6 |
Standard configuration |
Four-station vertical electrical knife rest |
Alternative configuration |
Horizontal Six-station electrical knife rest |
Restting accuracy (mm) |
0.01 |
Length of section of knife handle (mm) |
30×30 |
Length*width*height |
3200×1820×1710 |
