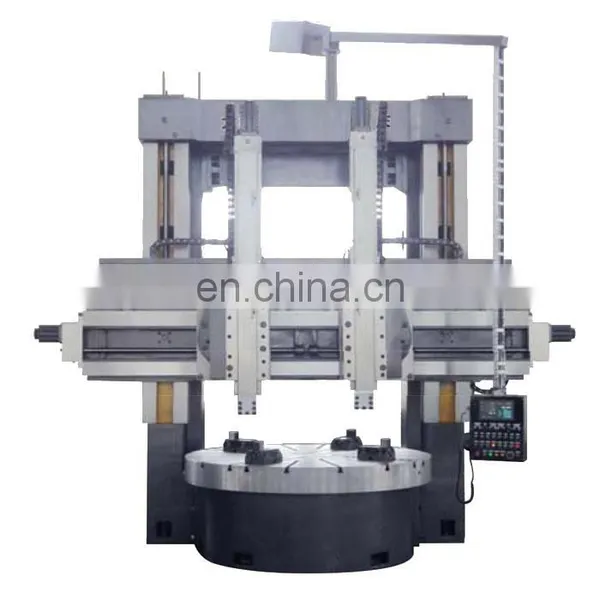

DVT5235C Double Column Vertical Manual Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed CK35GD 350 Mmcnc Lathe Manufacturers With Linear Guide and Power Turret for SaleNegotiableMOQ: 1 -
Desktop Cnc Lathe CNC180 Benchtop Cnc Lathe Machine for Training and Hobby UseNegotiableMOQ: 1
-
CK6163 High Speed Low Cost Cnc Lathe Machinery Price With Good QualityNegotiableMOQ: 1
-
CAK6161x1000 Lathe Machine From China Type Cnc Automatic LatheNegotiableMOQ: 1
-
CNC210 High Precision Mini Cnc Lathe for School TrainingNegotiableMOQ: 1
Product Description
Conventional vertical lathe machine with single column;
Rigid column and stable;
DRO optional;
Precise cutting for heavy metal parts.
Vertical lathe machine | DVT5235C/D |
Table dia. | 3150mm |
Max. turning dia. | 3500mm |
Max. workpiece height | 2000/2500/3150mm |
Max. workpiece weight | 20/32t |
Table speed step | 16(II stepless) |
Table rotation speed range | 2-63/0.4-40r/min |
Max. torque of table | 63/80KN.m |
Horizontal travel of toolpost | 20-2030mm |
Vertical travel of toolpost | 1000/1250/1600mm |
Crossam ram travel | 1650/2150/2750mm |
Main motor power | AC55/DC75kw |
N.W | 53/58/63t |
Overall size(LXWXH) | 6650x6300x5270/5770/6500mm |
Knife carrier size(W*H) | mm |
Main motor power | kw |
Machine dimensions(L*W*H) | mm |

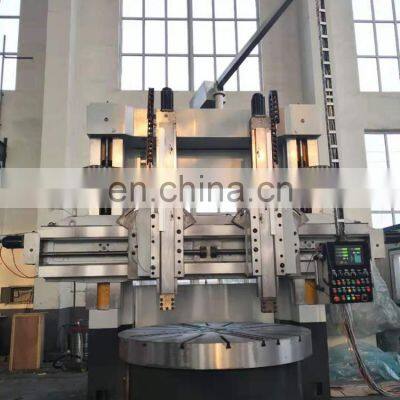

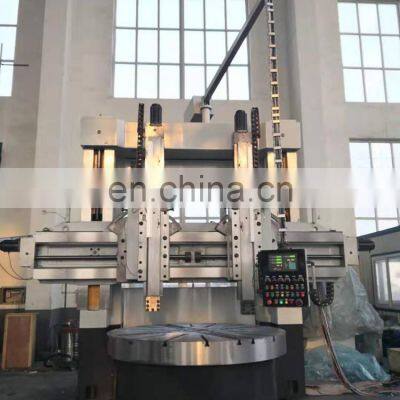

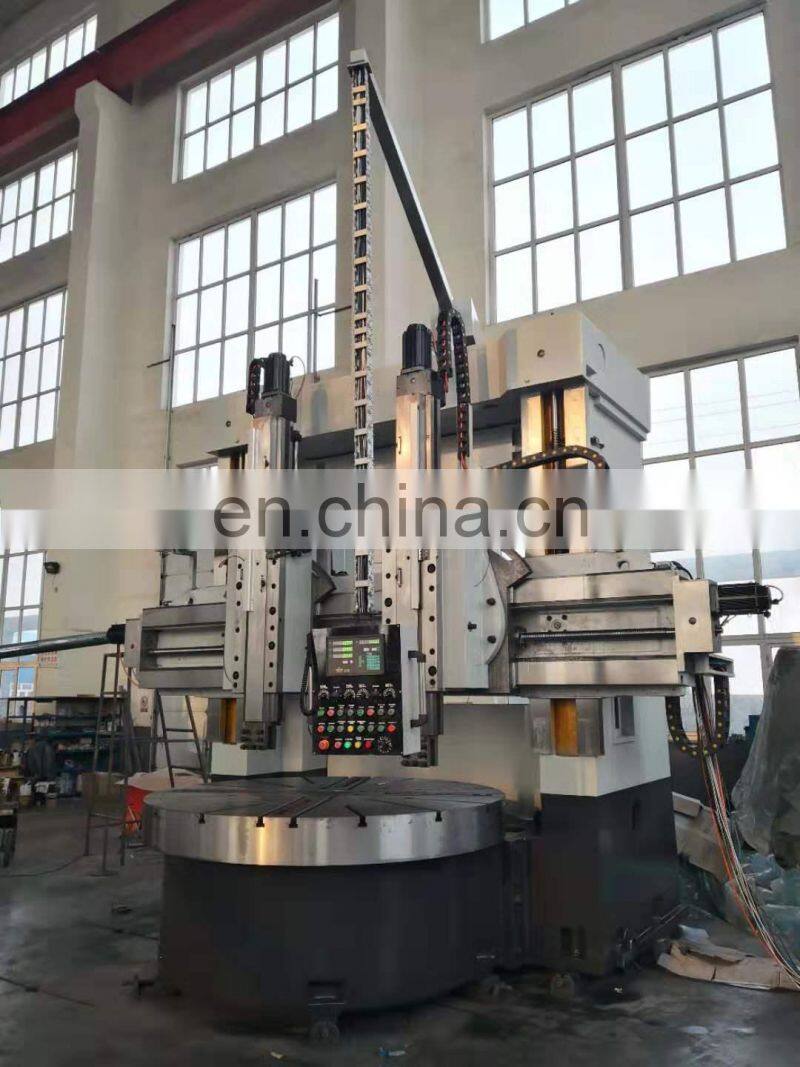

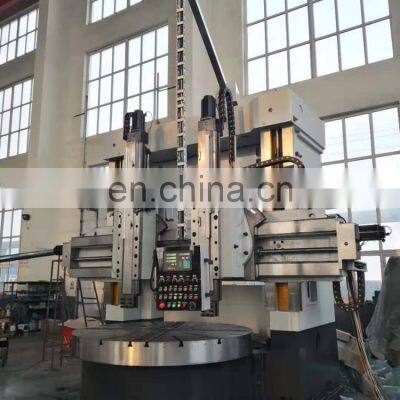

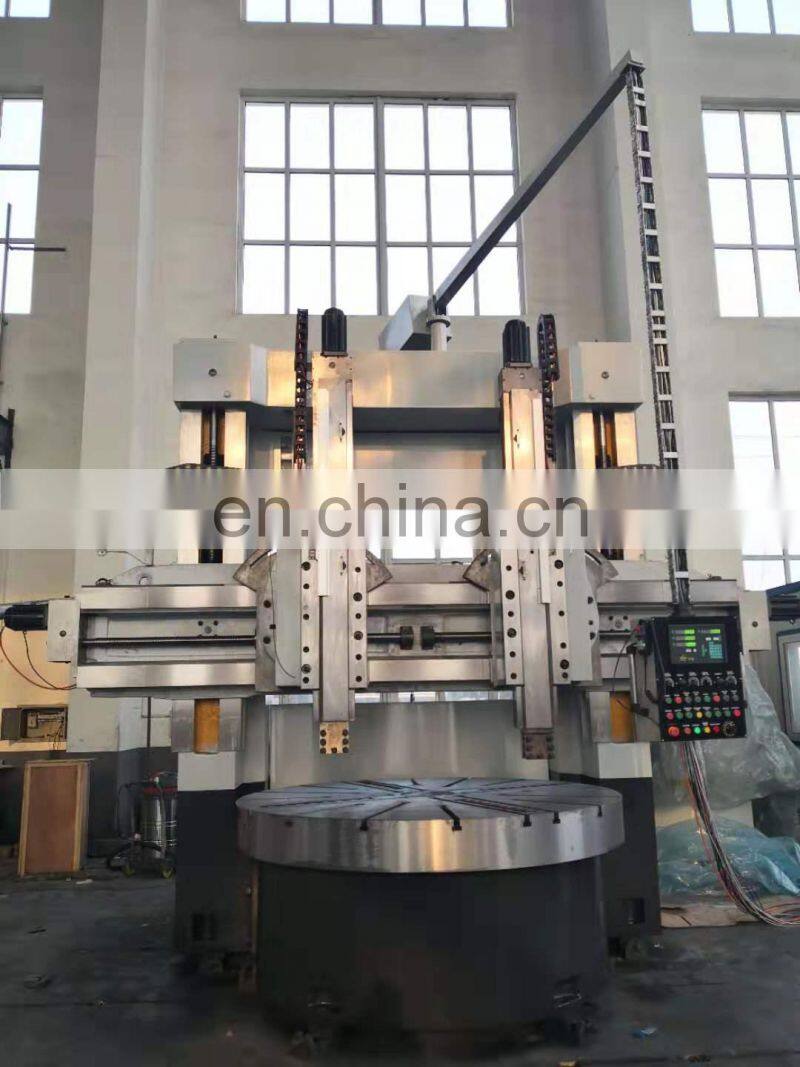

Detailed Images

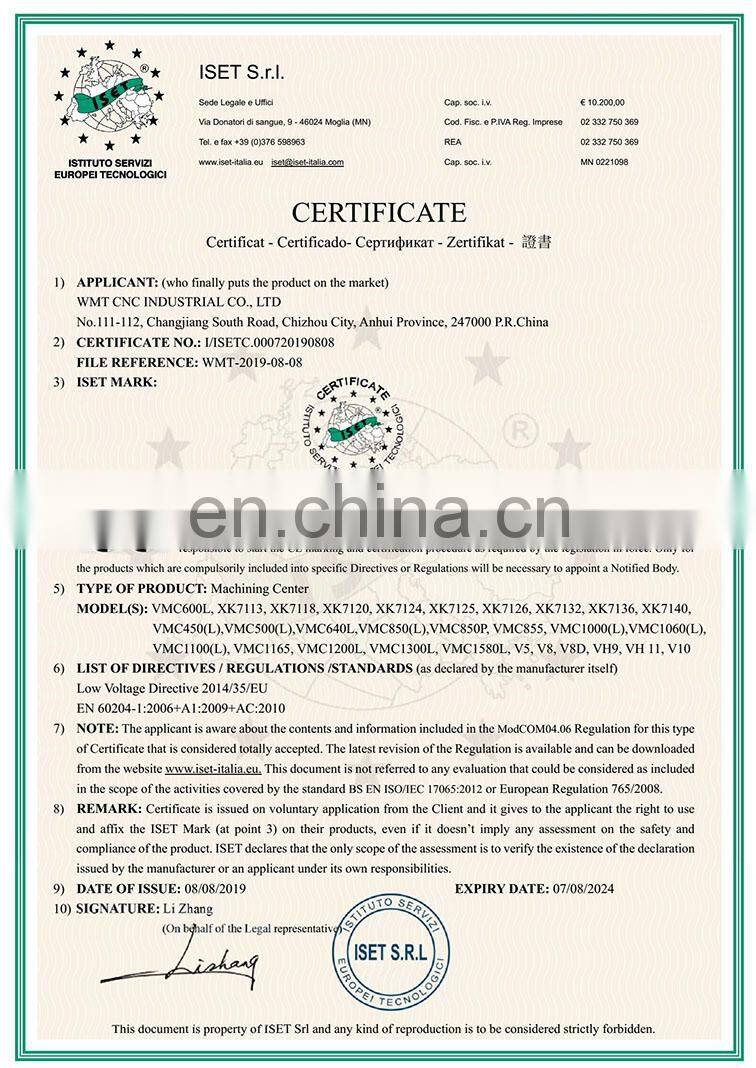

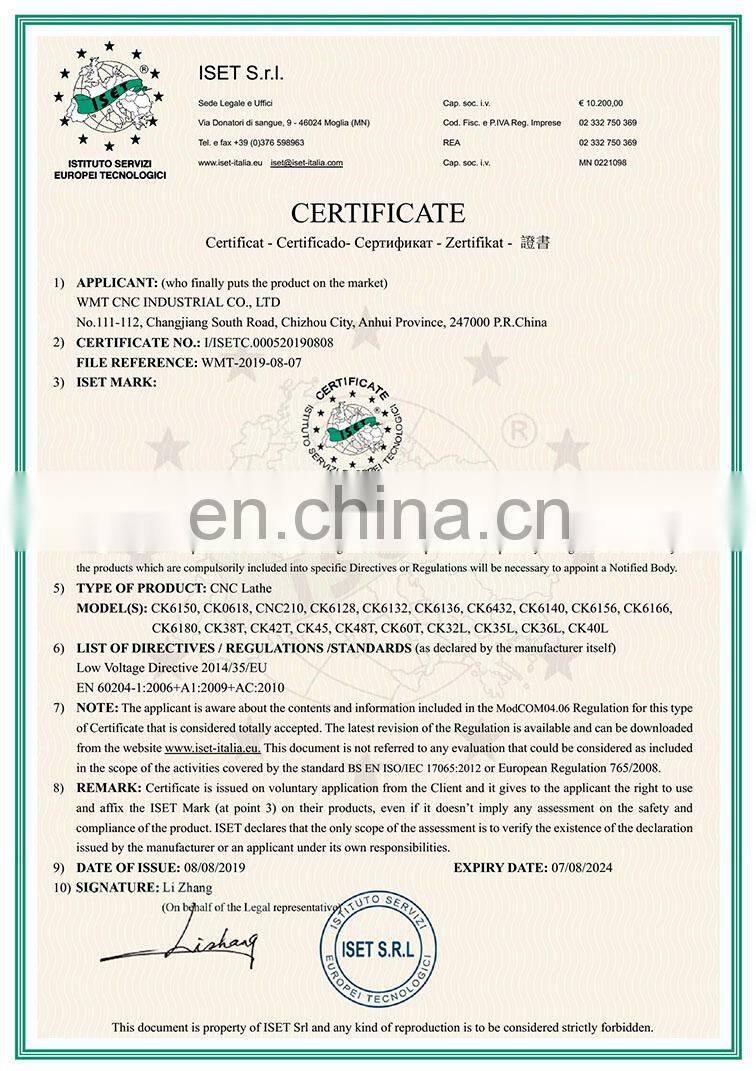

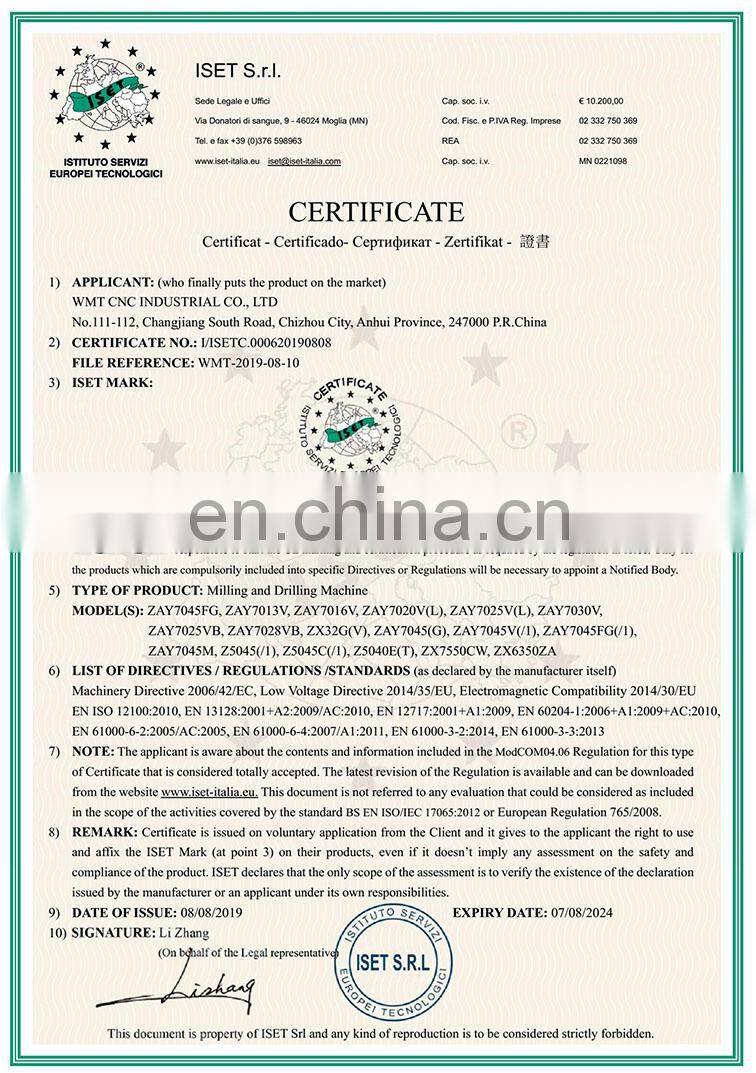

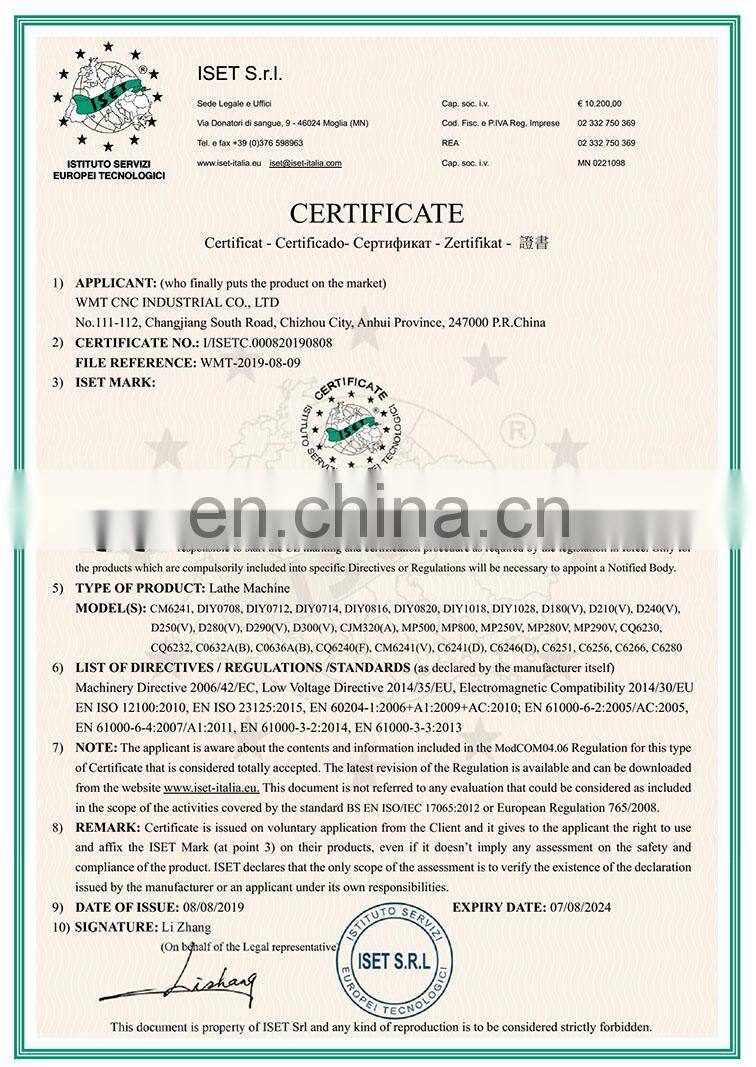

Certificate

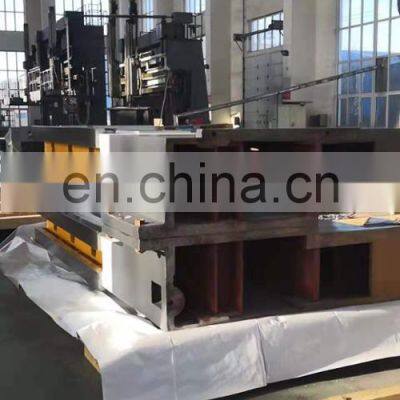

Packing & Delivery
