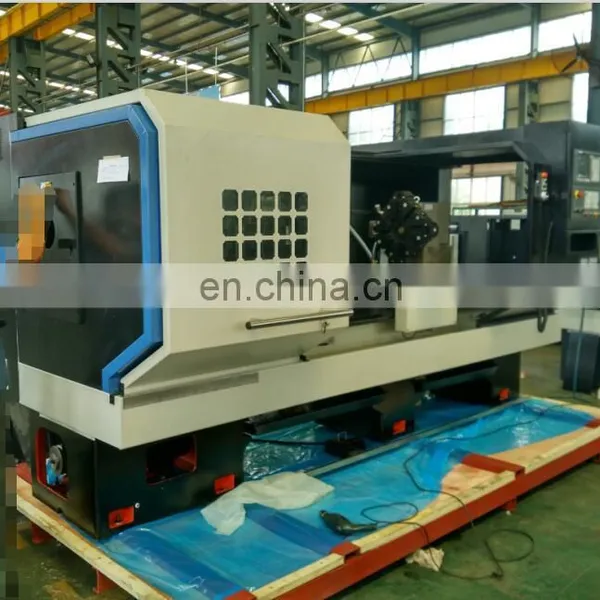

CAK6180X2000 Factory Direct Sell Cnc Lathe Machine With Cheap Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6163 High Speed Cheap Cnc Lathe for SaleNegotiableMOQ: 1 -
360mm Spindle Bore Dia. QK1327 Pipe Threading MachineNegotiableMOQ: 1
-
LCK320 Cnc Lathe With High PrecisionNegotiableMOQ: 1
-
TCK46A Cnc Lathe Machine PriceNegotiableMOQ: 1
-
TCK6336L Slant Bed Cnc Lathe With High Precision From China FactoryNegotiableMOQ: 1
Features:

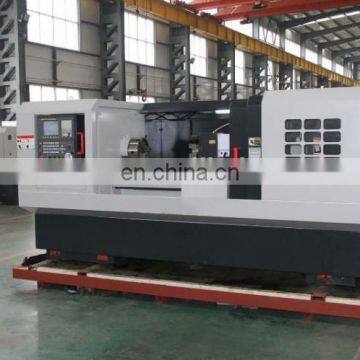

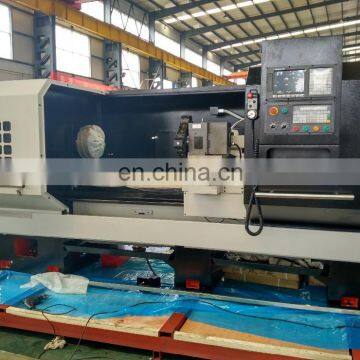

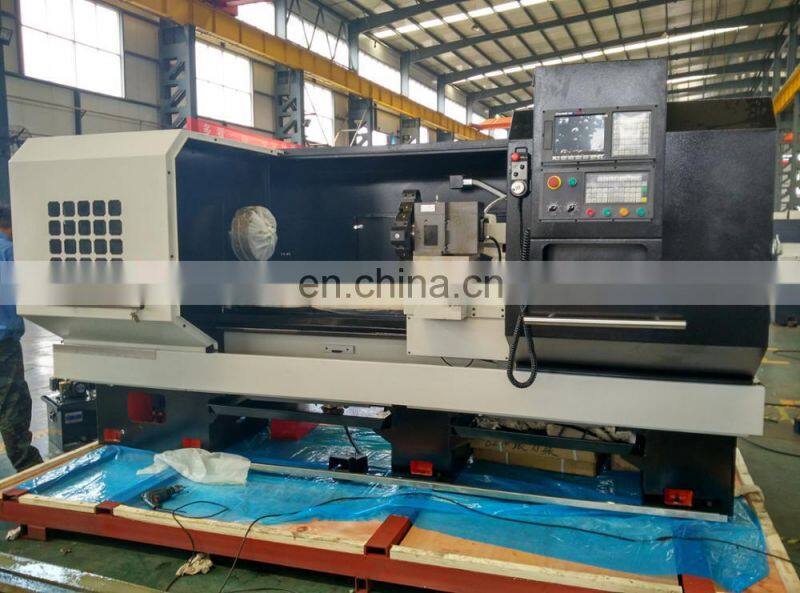

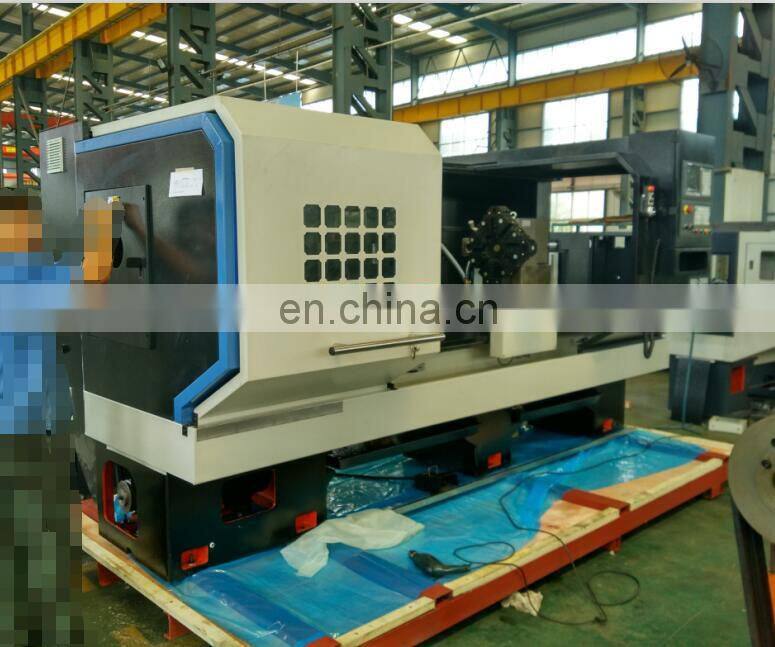

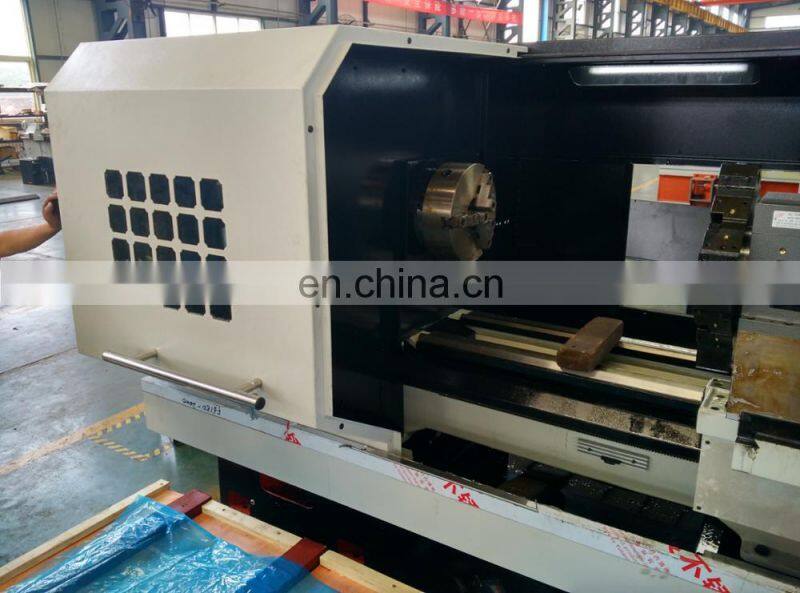

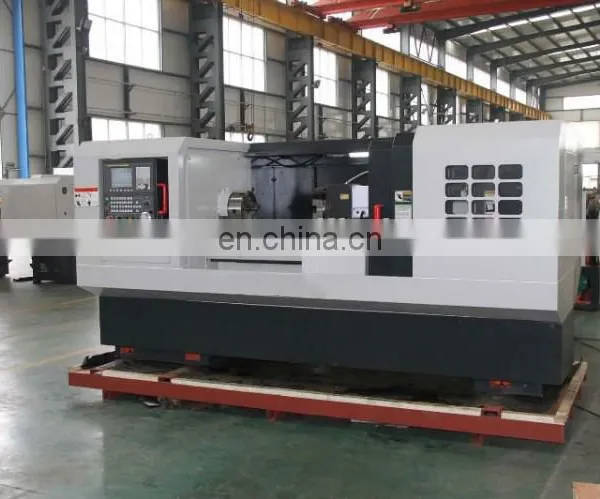

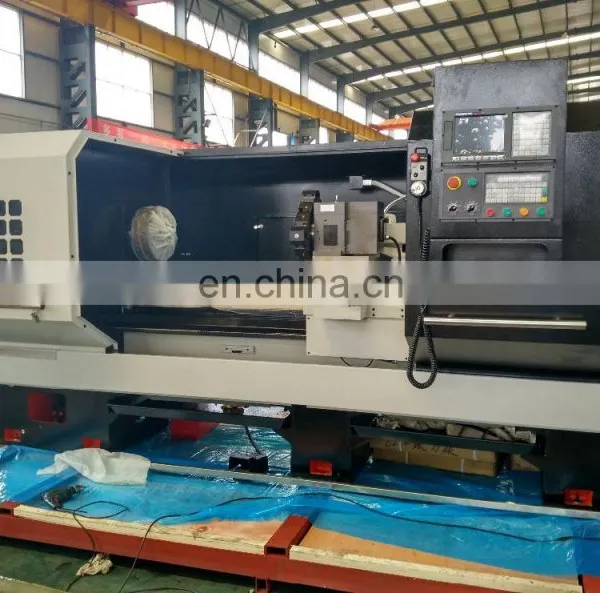

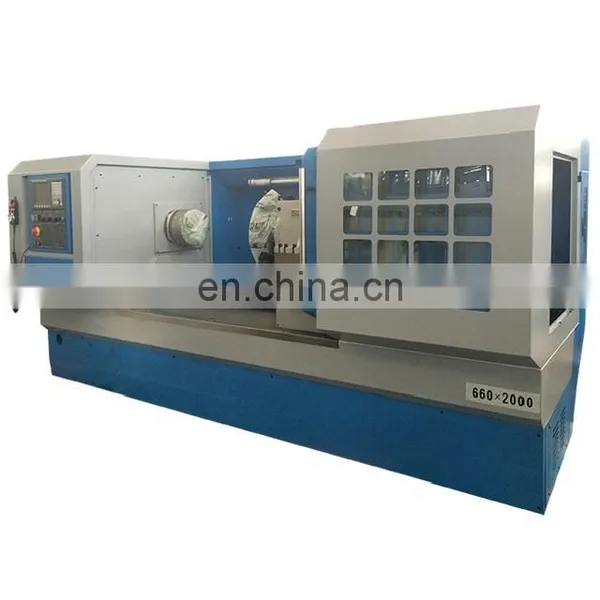

CAK6180X2000 CNC LATHE MACHINE
CAK SERIES CNC LATHE
The guideways are hardened and precision ground·Infinitely variable speed change for spindle. The system is high in rigidity and accuracy. The machine can smoothly run with low noise. Design of electromechanical integration, easy operation and maintenance
It can turn taper surface, cylindrical surface, arc surface, internal hole, slots, threads, etc., and is used especially for mass production of disc parts and short shaft in the lines of automobile and motorcycle.
Specifications |
CAK6180 |
Max .Swing over bed |
800mm |
Max. Work piece Length |
750/1000/1500/2000/3000mm |
Spindle taper |
MT6(Φ90 1:20) |
Chuck size |
C6 (D8) |
Thru-hole of spindle |
52mm(80mm) |
Spindle speeds (12steps) |
21-1620rpm(I 162-1620 II 66-660 III 21-210) |

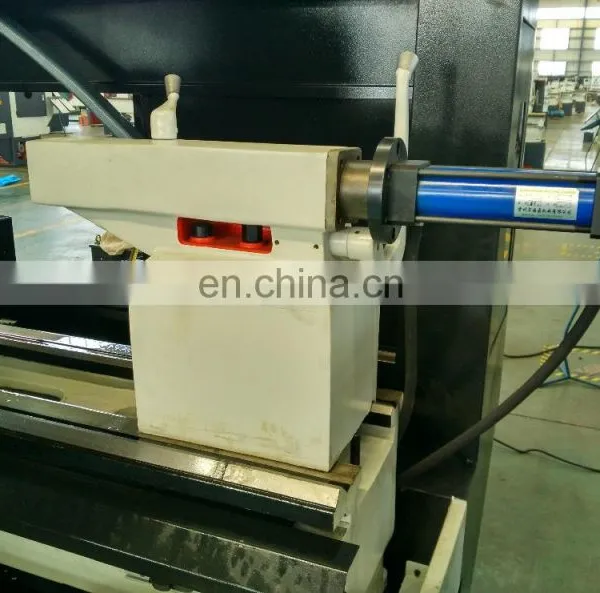

Tailstock center sleeve travel |
150mm |
Tailstock center sleeve taper |
MT5 |
Repeatability error |
0.01mm |
X/Z rapid traverse |
3/6m/min |
Spindle motor |
7.5kw |
Overall dimensions for 750 |
2440×1450×1900mm |
Overall dimensions for 1000 |
2650×1450×1900mm |
Overall dimensions for 1500 |
3150×1450×1900mm |
Overall dimensions for 2000 |
3610×1450×1900mm |
Overall dimensions for 3000 |
4610×1450×1900mm |
Length |
G.W. N.W. |
Overall dimensions for 750 |
2400/3000 |
Overall dimensions for 1000 |
2250/3150 |
Overall dimensions for 1500 |
2750/3350 |
Overall dimensions for 2000 |
2980/3550 |
Overall dimensions for 3000 |
3700/4400 |
