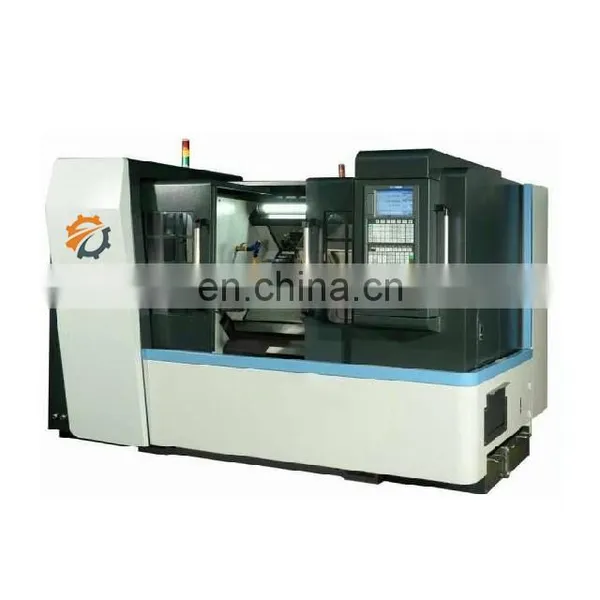

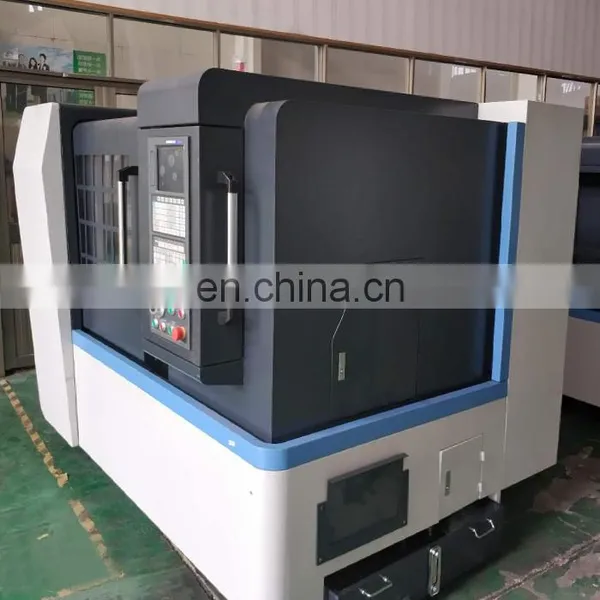

CK48T 45 Degree Slant Bed CNC Lathe for Thread Cutting
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CKX6830 Cheap Cnc Lathe Machine CNC Turning CenterNegotiableMOQ: 1 -
Wmt Cnc Lathe CK6432 500mm Cnc Lathe Machine Automatic for SaleNegotiableMOQ: 1
-
QK1343 CNC Lathe CNC Pipe Threading Lathe Machine With CE/ISONegotiableMOQ: 1
-
CK5116 Single Column CNC Vertical Lathe Machine for Heavy CuttingNegotiableMOQ: 1
-
DVT5235C Double Column Vertical Manual Lathe Machine With CENegotiableMOQ: 1
Features:
1.Integrated slant bed structure.easy liquid leaking, high rigidity and good operation.
2.High speed at 5000r/min. First-class precision spindle bearing.
3.High precision ball screw Rexroth, fast feeding for high working efficiency.
4.All-closed stainless steel protection, strong liquid protection without any water leak.
5.8-12 position hydraulic turret, easy machining for complex parts.
Specification |
CK48T |
Max.swing over bed |
480mm |
Max.swing over cross slide |
350mm |
Max.maching diameter(disk/rod) |
320mm/80mm |
Max.length of work piece |
420mm |
spindle bearing diameter |
100mm |
Spindle bore diameter |
62mm |
Spindle bore taper |
80mm |
Spindle nose |
A2-6 |
Spindle speed range |
60-3800r/min |
Power of the main motor |
7.5-11kw |
Min.input unit |
0.0005/0.001mm |
Rapid speed |
20/20m/min |
Hydraulic chuck |
8" |
Hydraulic station |
8 |
Max .tool shank |
25x25mm |
Max.dia for boring size |
32mm |
Quill diameter |
80mm |
Quill travel |
80mm |
Packing size |
2220x1405x1640mm |
N.W/G.W |
3400/3800kgs |

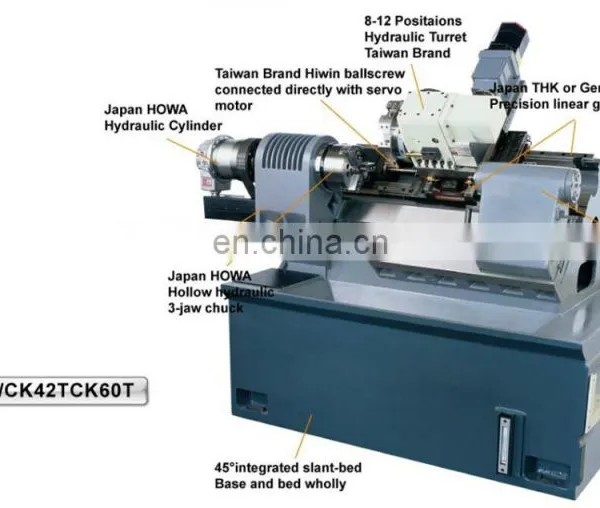

Standard Equipment:
CNC control system: Fanuc or Siemens or Mitsubishi as you select
Spindle bearing: Japan NSK or Germany FAG P4 class.
Hydraulic chuck: Japan HOWA Hollow
Hydraulic cylinder: Japan HOWA Hollow
Linear guideway: Japan THK or Germany Rexroth.
Leadscrew: Taiwan Yintai precision ball screw
Leadscrew bearing: Japan NSK or Germany ESKY
Turret: Taiwan Liuxing 8 positions
Hydraulic station: Made in Taiwan famous brand
Alarm lamp
Auto-lubricating system
Cooling system
Optional Accessories:
Hydraulic turret: 12-Position
Auto chip conveyor
Auto bar feeding
