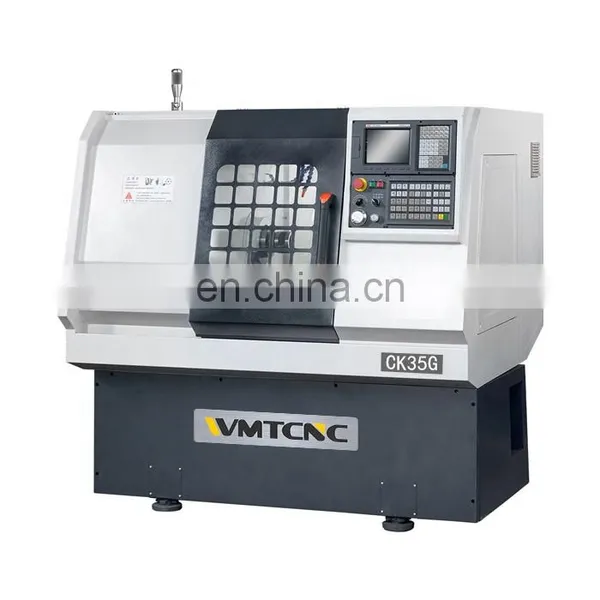

Help CenterHigh Speed CK35G 350 mm Cnc Lathe Machine With Linear Guide
Related Products
-
High Speed CK28G 280 mm Cnc Lathe Machine With Linear GuideNegotiableMOQ: 1 -
CK6136x750 Cnc Lathe Machine for Metal WorkingNegotiableMOQ: 1
-
CK48T 45 Degree Slant Bed CNC Lathe for Thread CuttingNegotiableMOQ: 1
-
CKX6830 Cheap Cnc Lathe Machine CNC Turning CenterNegotiableMOQ: 1
-
Wmt Cnc Lathe CK6432 500mm Cnc Lathe Machine Automatic for SaleNegotiableMOQ: 1
CNC Lathe Machine Features:
1. Low energy consumption, high efficiency, save 30% electricity. Dynamic equilibrium of the whole machinerapid dynamic response, low noise and small vibration
2. Large speed adjusting scope, high speed and steady, low speed and large torque, without pulse
3. Coarseness of the processing surface: Rao. 4 for colored metal, Rao. 8 for non-colored metal
4. NSK high precision bearing produced in Japan is adopted and SKF efficient and high speed lubricating greaseproduced in Swiss is adopted. It does not need maintenance for normal operation
5. Directly drive of the servo spindle unit without energy consumption of belt drive, High efficient C axle function(random indexing and linkage of the spindle
6. Manual high speed clamp, pneumatic clamp and hydraulic clamp for option
Specification |
CK35G |
Max. swing over bed |
Φ350mm |
Max. length of work piece |
300mm |
Max. travel of X-axis |
320mm |
Max. swing over carriage |
Φ150mm |
X axis rapid speed |
18000mm/min |
Z axis rapid speed |
18000mm/min |
Y axis rapid speed |
15000mm/min |
X axis pulse value |
0.0005mm |
Z axis pulse value |
0.0005mm |
Y axis pulse value |
0.001mm |
Spindle bore |
Φ43/Φ48mm |
Spindle speed |
0-6000r/min |
Motor power |
5.5/3.7kw |
Max. section of tool |
20X20mm |
Machine dimensions |
1800X1600X1600mm |
N.W |
1300kg |
