Home > Products > VERTICAL MACHINING CENTER > 3 axis cnc milling machine VMC650 vertical machining center with CNC control system

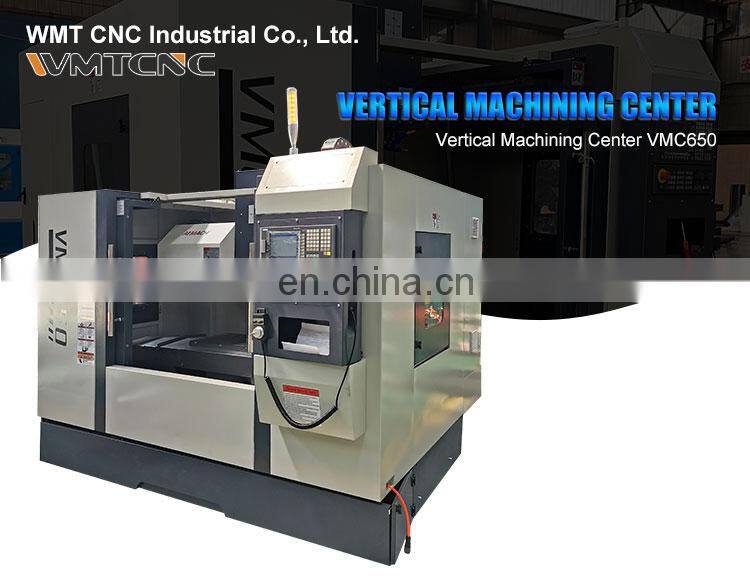

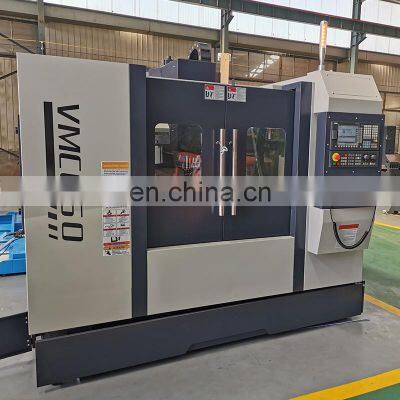

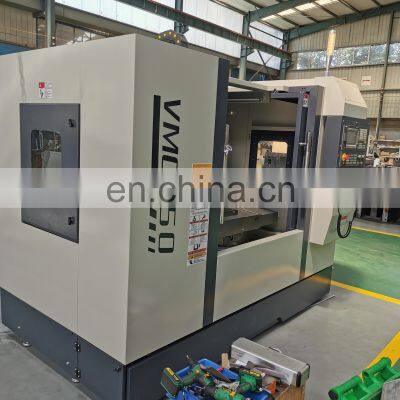

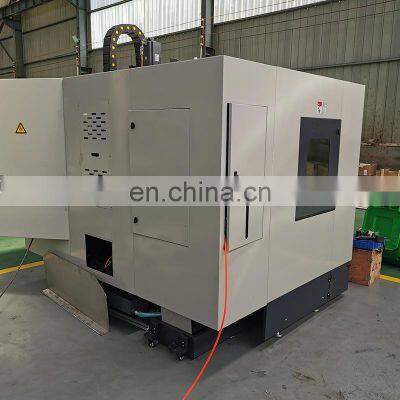

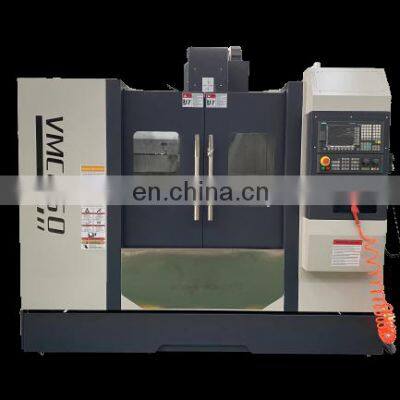

3 axis cnc milling machine VMC650 vertical machining center with CNC control system
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
vertical cnc 5 axis machining centre V10 vertical milling center with high speed
-
3 axis vertical machining center VMC1370 with CNC Controller
-
WMTCNC 4 axis cnc vertical machine centre VMC855 vmc mill machine for metalworking
-
VH-9 High speed cnc machining center with good precision from China
-
Machining Centre VMC850L cnc controller machining center vertical milling center
-
Machining Centre VMC600L cnc controller machining center

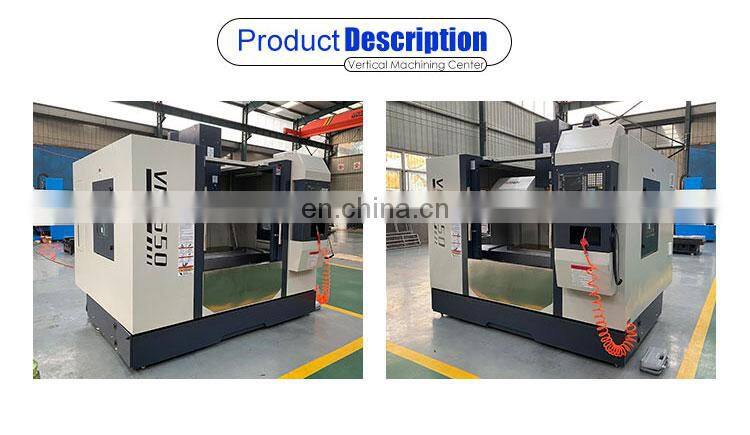

Product Description
Product Description
Machine features of vertical machining center:
1. The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and lifetime stability.
2. Pre-tensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3. The endface of spindle stock,screw support faces and block contact faces are fully Hand-scraped to increase machining accuracy and feeding smoothness.
4. The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and precision.
5. Over sized column and bed ,assuring extra high rigidity of machine frame.
1. The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and lifetime stability.
2. Pre-tensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3. The endface of spindle stock,screw support faces and block contact faces are fully Hand-scraped to increase machining accuracy and feeding smoothness.
4. The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and precision.
5. Over sized column and bed ,assuring extra high rigidity of machine frame.
Specification | VMC650 |
Worktable area | 800x450mm |
X/Y/Z travel | 600x500x500mm |
Spindle end to table distance | 130~630mm |
Spindle center to column guide surface distance | 460mm |
Workbence maximum load | 500kg |
T-slot（slot ×width×center distance） | 3×18×125 |
Main motor power | 5.5kw（servo motor） |
Spindle inner cone | BT40 |
Spindle-speed | 80~8000rpm |
Maximum tool diameter（adjacent/empty） | φ80/φ130mm |
Tool length | 300mm |
Tool weight | 6kg |
X/Y axis quick move | 24m/min |
Z axis quick move | 10m/min |
Cutting feed speed | 1~5000mm/min |
Positioning accuracy | 0.025mm（GB）±0.008(actual measurement) |
Repeat positioning accuracy | 0.015mm（GB）±0.004(actual measurement) |
Water tank capacity | 200L |
Cooling pump power | 180W |
Cooling pump flow | 25L/min |
Rated head | 40m |
Use air pressure | 0.6MPa |

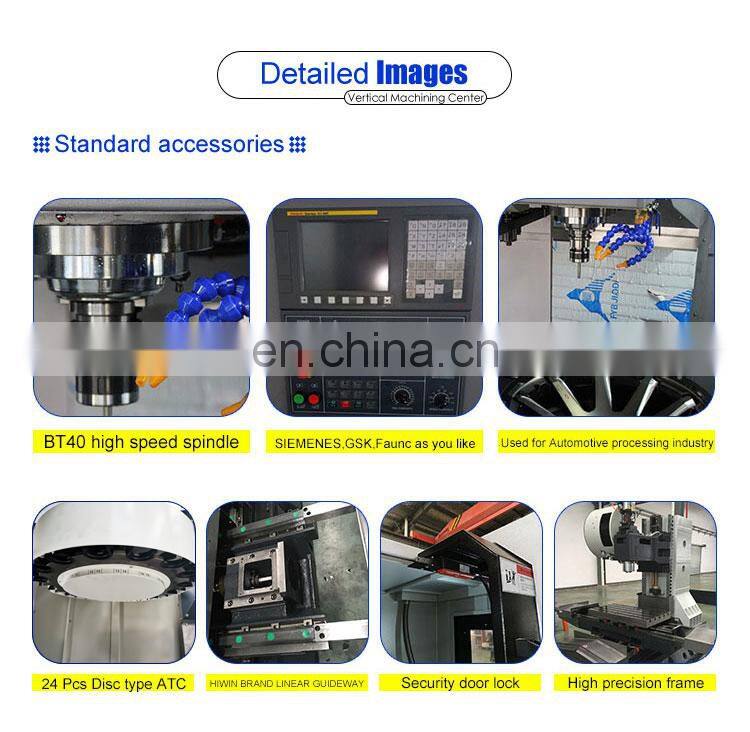

Details Images

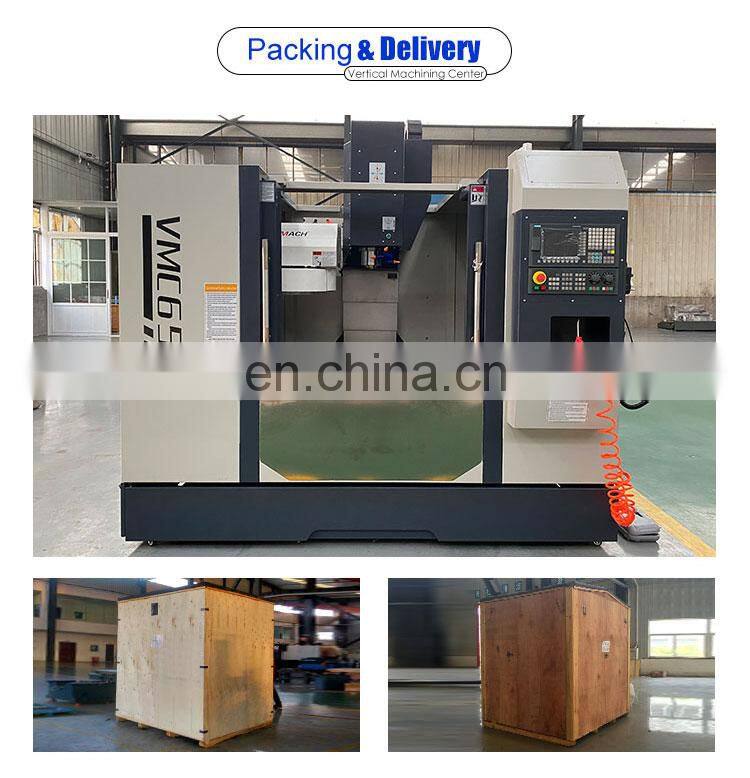

Package&Delivery
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
