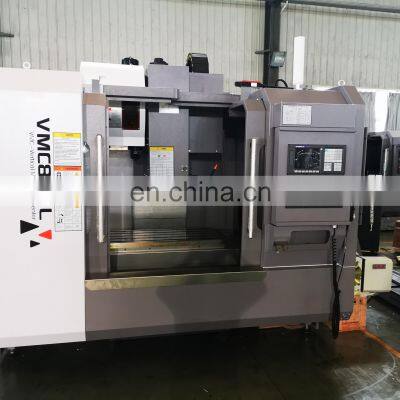

cnc milling machine small VMC850L 4 axes cnc vertical machining center for metal

Name: cnc milling machine small VMC850L 4 axes cnc vertical machining center for metal
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

CNC Milling machine center Product Application VMC850L:
All 3axis use class C3 precision screw, match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise, so that the machine can achieve stability of the positioning and repeatability accuracy.

Besides, the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

Specification	VMC850L

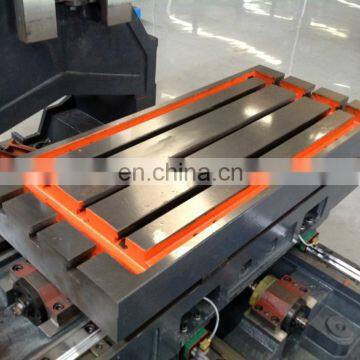

Worktable size(LxW)	1050x510mm
T-slot (NxWx D)	5x18x100mm
X/Y/Z axis travel	820/510/650mm
Distance from spindle center to column	575mm
Distance from spindle nose to worktable surface	130-780mm
Spindle taper	BT40
Spindle power	7.5/11kw
Max.spindle speed	8000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	18/18/15m/min
Positioning accuracy(X/Y/Z)	±0.012mm
Re-positioning accuracy	±0.008mm
Tool magazine capacity	24T
Tool change time(T-T)	2.5s
LxWxH	2650X2420X2600mm
Max.loading of worktable	700kgs
Machine weight	5400kgs

Standard accessories:

Mchining center CNC VMC850 Standard Equipment:

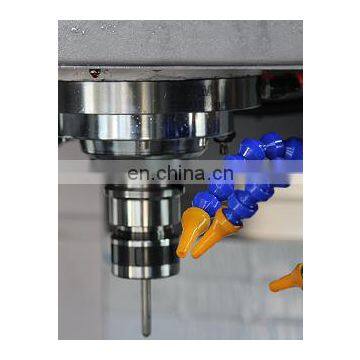

Servo motor spindle BT40, 7.5Kw, s=80-8000rpm;
worktable size:510x1050mm;
X/Y/Z: 820X510X650mm,
Arm type ATC: 24T;
X/Y/Z hard guideway;
Fanuc Oi Mate MD.

Optional accessories:

FANUC, Mitsubishi, Siemens, GSK CNC control systems;
Taiwan BT40 Round plate magazine of 24 tools capacity;
The 4th-axis or the 5th axis;
CF card;
Auto. chip removal device.

Products Recommend

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
